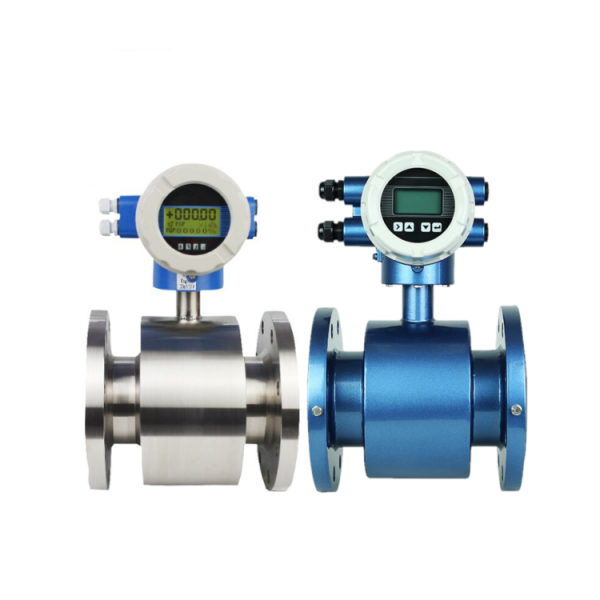

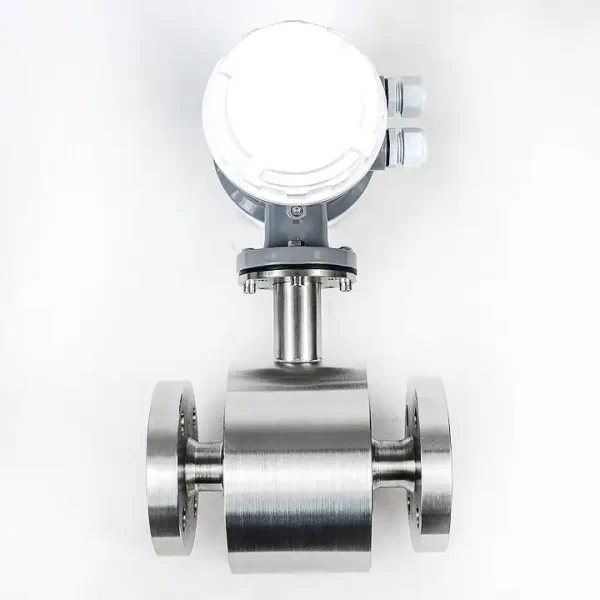

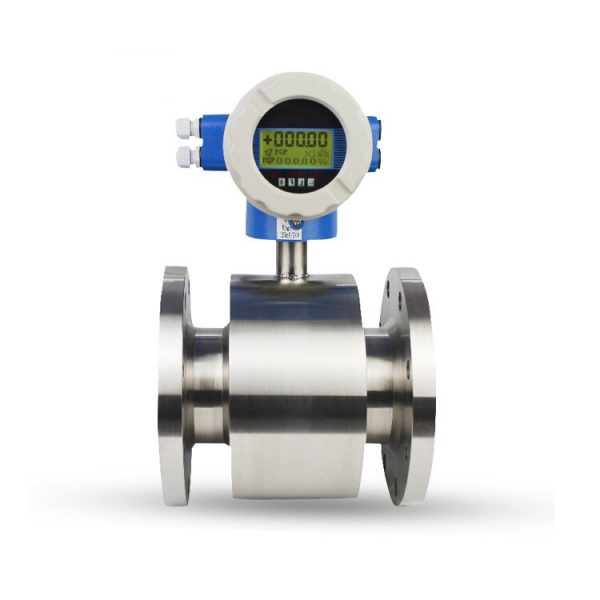

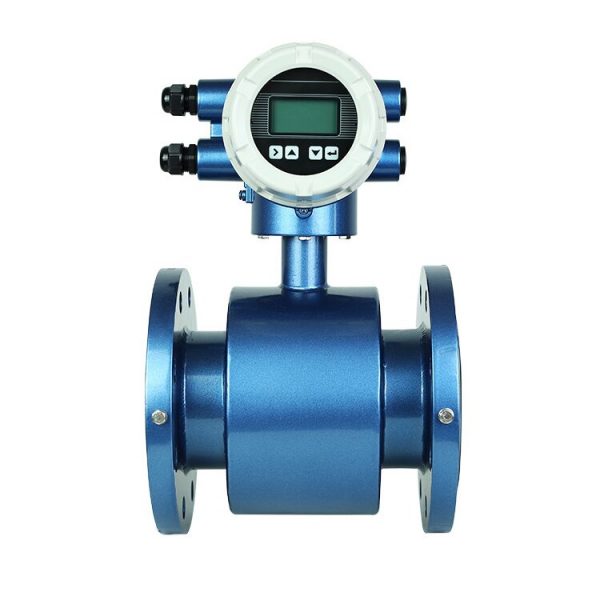

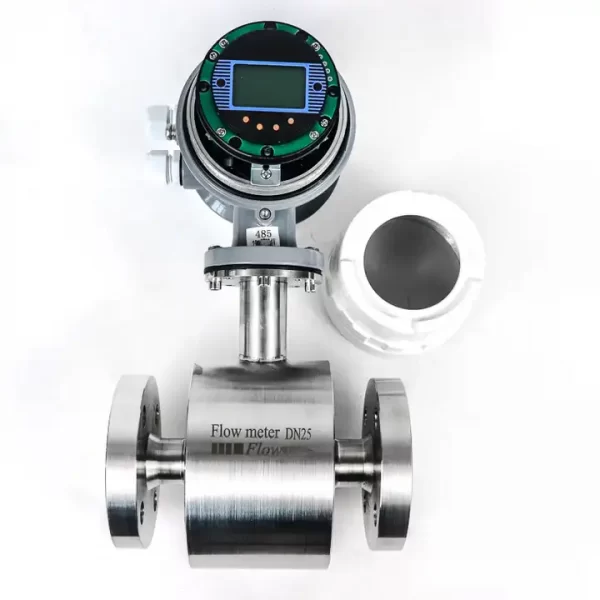

Integrated Electromagnetic Flowmeter
Electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and wastewater, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry, etc.
When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance.Defective meters or parts discovered within this period shall be replaced without charge upon return to the HBM Meters.
Description

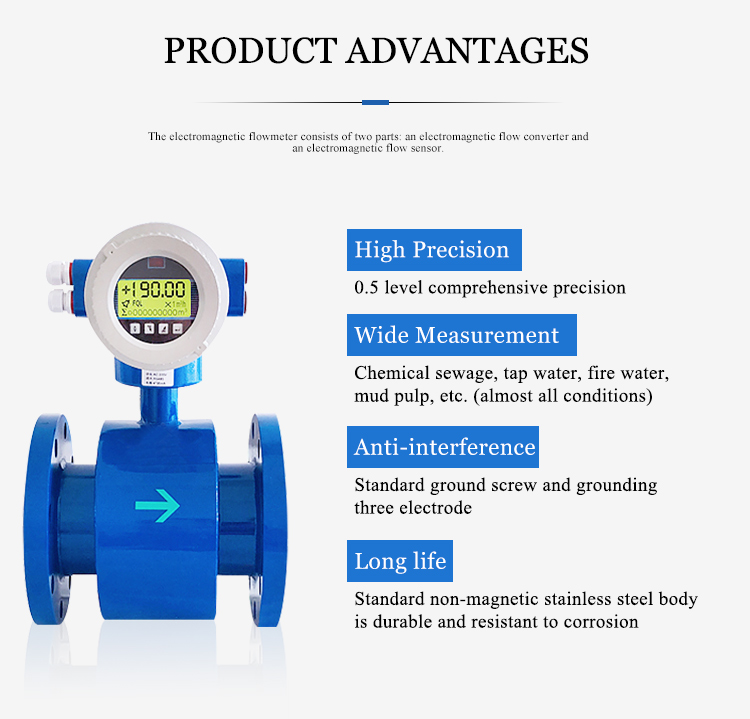

Features
▲ The measurement result has nothing to do with physical parameters such as velocity distribution, fluid pressure, temperature, density, viscosity, etc.
▲ At the scene, the range can be modified online according to the actual needs of the user.
▲ High-definition backlit LCD display, full Chinese menu operation, easy to use, simple operation, easy to learn and understand.
▲ Full digital processing, strong anti-interference ability, reliable measurement, high accuracy, flow measurement range up to 150: 1.
| Product name | Electromagnetic Flow Meter |
| Nominal Diameter(mm) | DN10-DN2000mm |
| Medium | water,waste water,slurry,sea water, mud and other conductivity liquids |
| Accuracy | 0.5% and 0.2% |
| Instrument material | Cast steel, SS304; SS316; etc. |
| Medium Temperature | <80℃(rubber); <180℃(PTFE) |
| Pressure | 4.0Mpa(DN10~80);1.6Mpa(DN100~150);1.0Mpa(DN200~1000);0.6Mpa(DN1200~2000) |
| Connection | Thread,Flange,Tri-clamp |

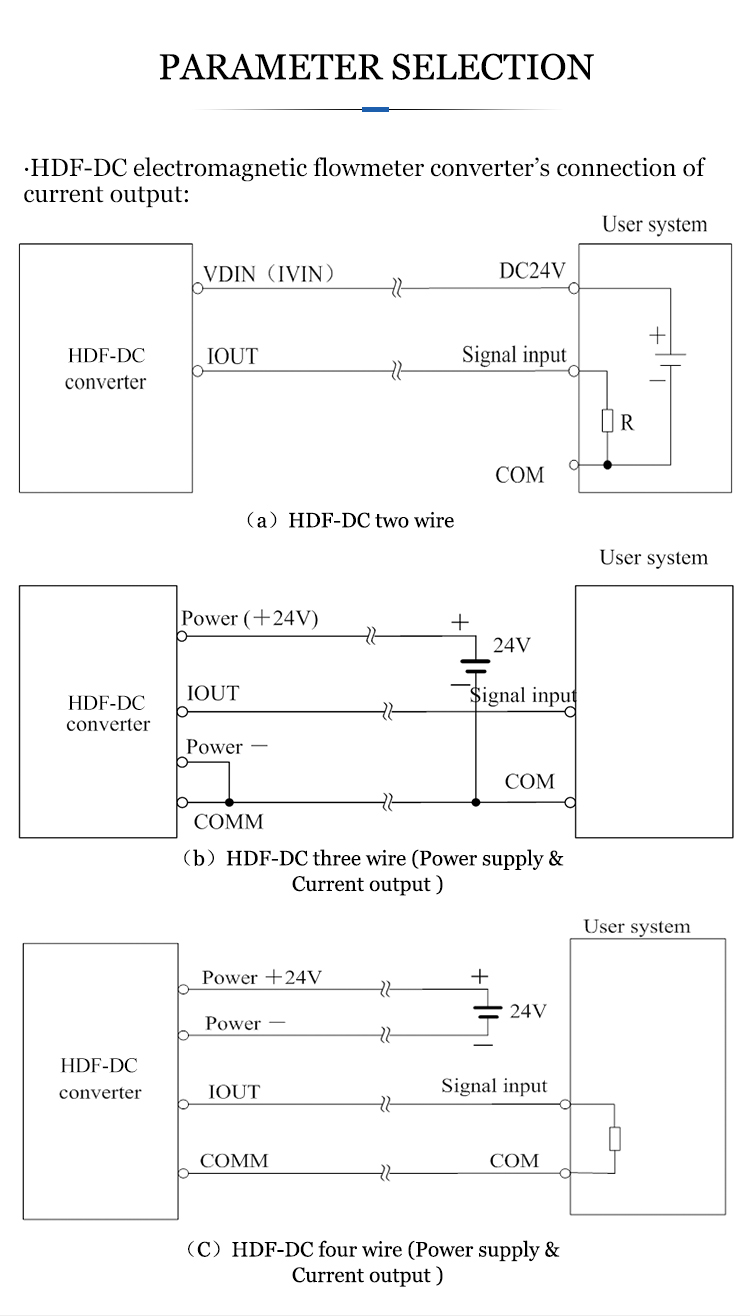

| Signal Output | Pulse;4~20mA;HART;RS485;RS232,MODBUS;GPRS |
| Supply Power | AC220V, DC24V or Battery |
| Electrode | SS316L(standard);Titanium;Tantalum;Hastelloy,platinum |
| Lining | PTFE;Rubber;polyurethane PU,etc |
| Protection Class | IP65 or IP68 |
| Keywords | electromagnetic flow meter to conductive liquid |
| Structure | Remote type,Integrated type |
| Relative humidity | 5% to 90% |
