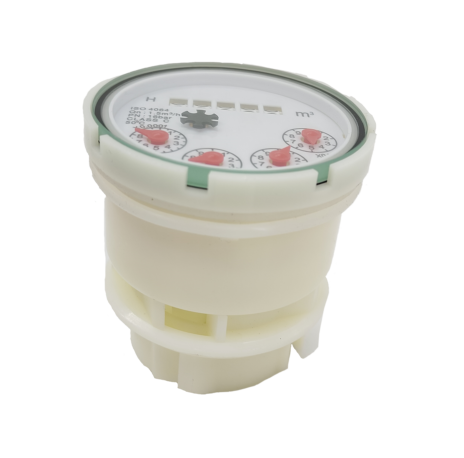

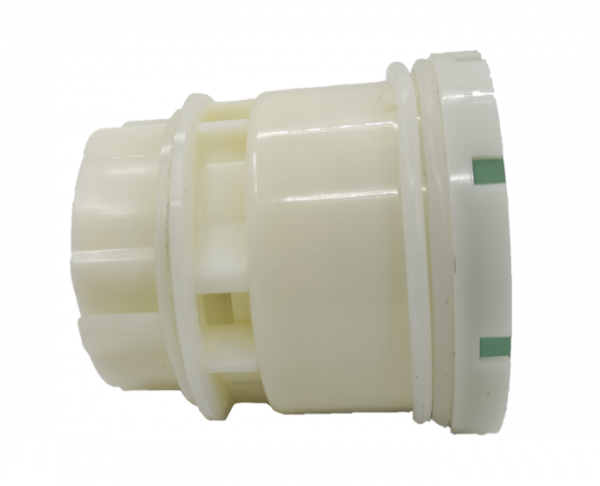

Plastic Class C dry type water meter mechanism
Measuring the volume of potable water passing throught the pipeline.
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance.Defective meters or parts discovered within this period shall be replaced without charge upon return to the HBM Meters.
Description
Features:
1.Dry type Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service(Also available wet type mechanism)
2 Multi-jet
3.Selected high quality materials for steady & reliable characteristic
4.Measuring accuracy conform to ISO 4064 class C Standard.
Working Condition:
Water temperature:≤30
Working pressure:≤1Mpa
Application:
Measuring the volume of potable water passing throught the pipeline.
Features:
1.Dry type Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
2 Multi-jet
3.Selected high quality materials for steady & reliable characteristic
4.Measuring accuracy conform to ISO 4064 class C Standard.
Working Condition:
Water temperature:≤30
Working pressure:≤1Mpa

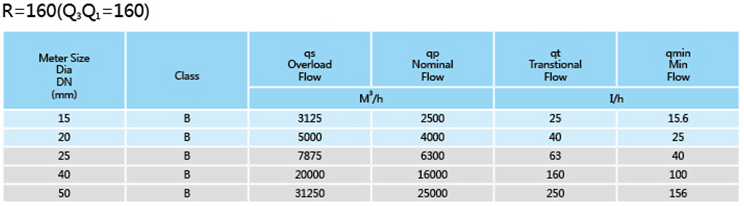

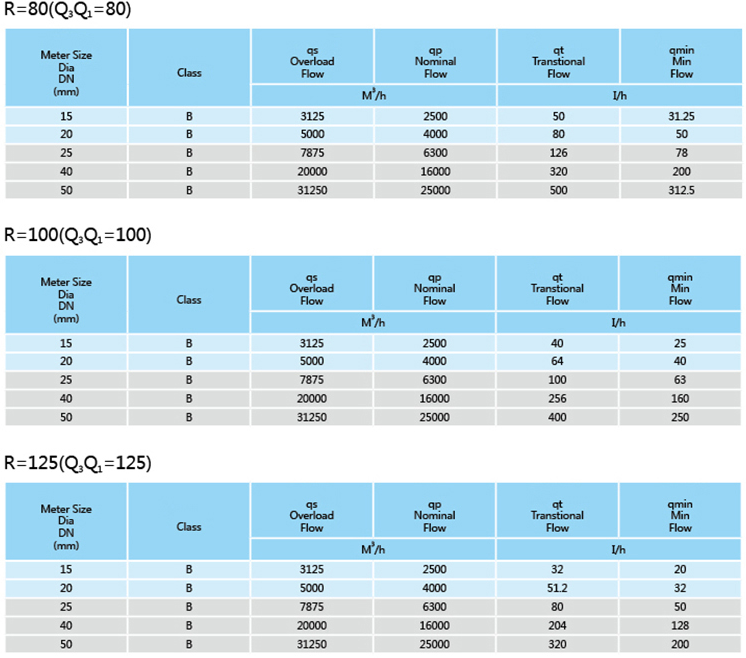

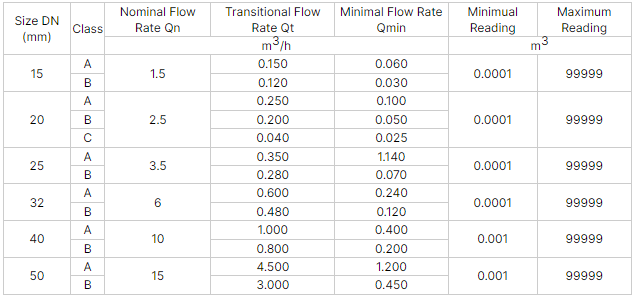

Technical Data:

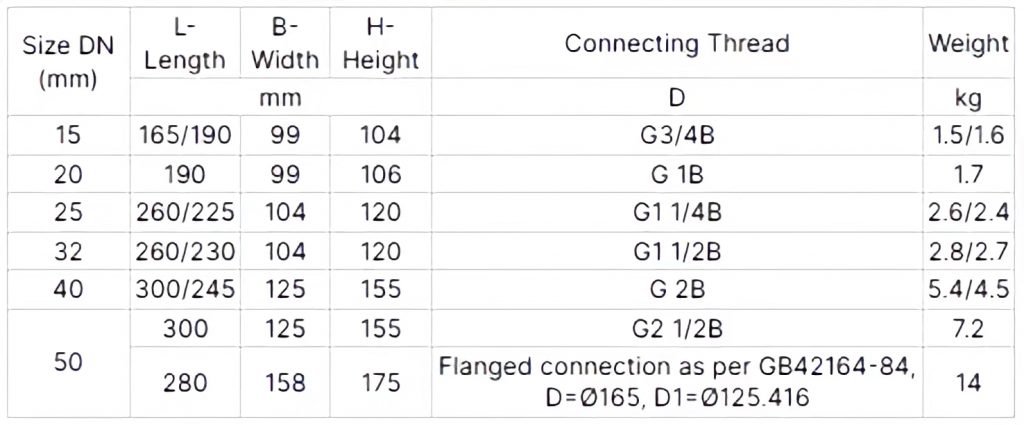

Dimensions and Weight
