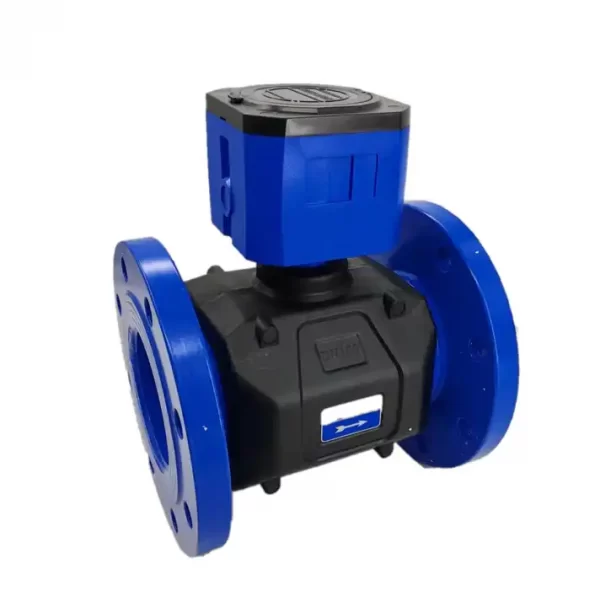

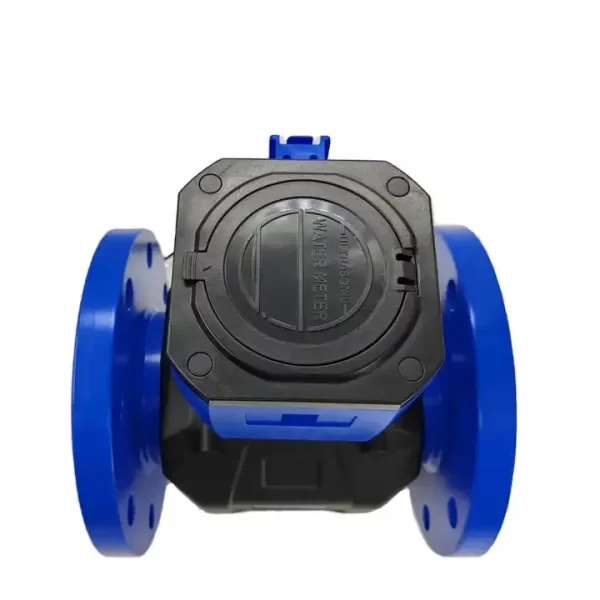

DN50-800 ULTRASONIC WATER METER

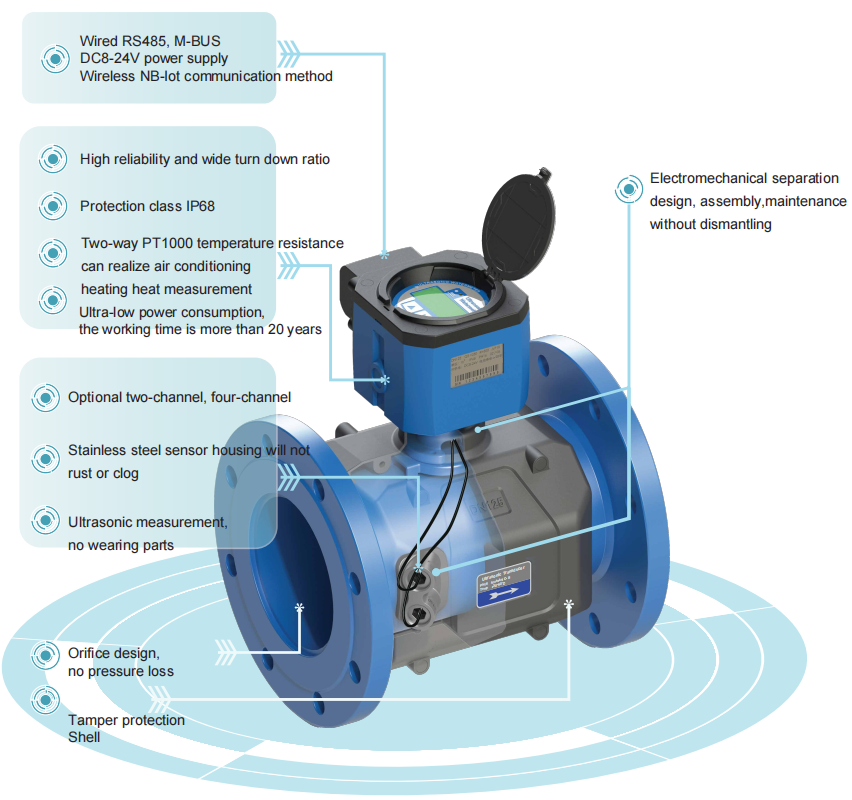

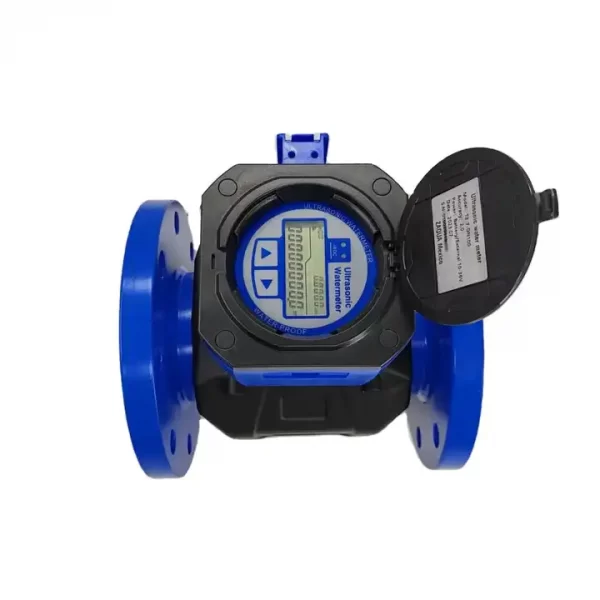

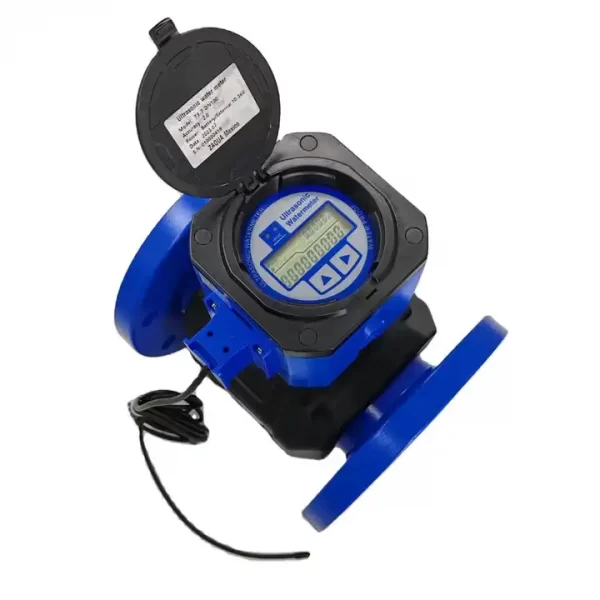

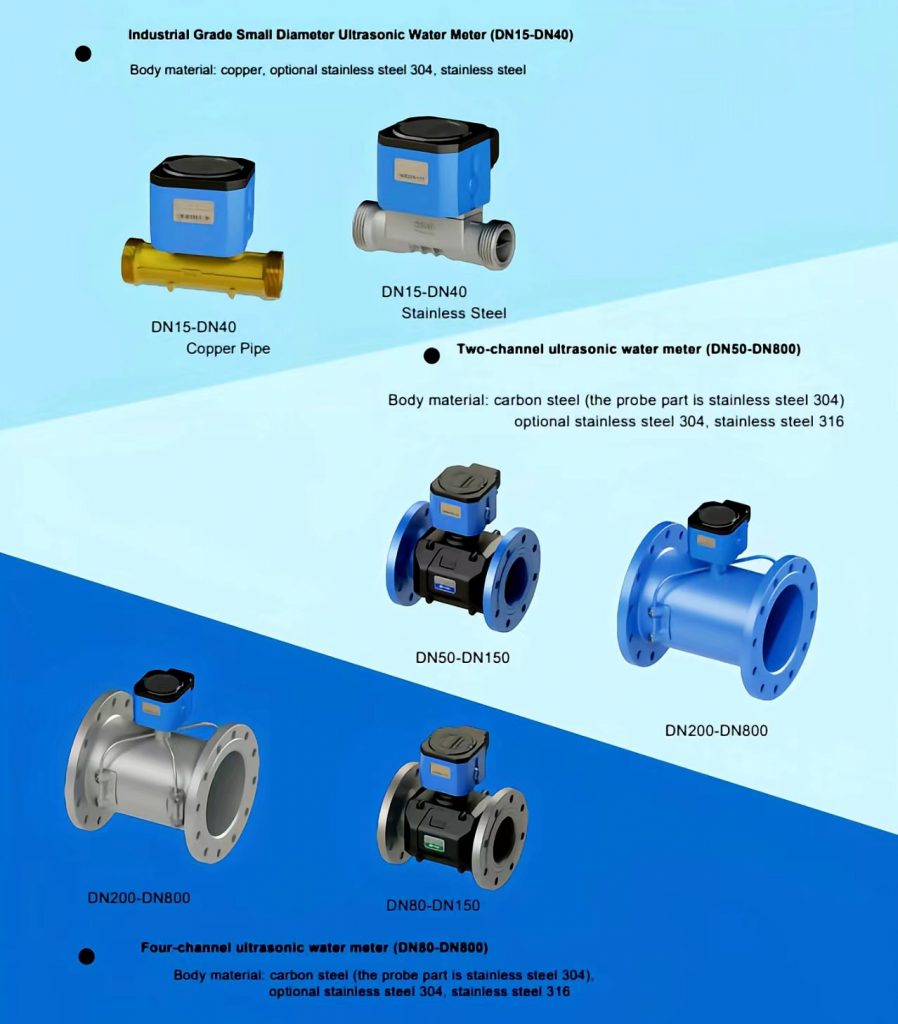

SSYT3-7 series ultrasonic water meter is a highly integrated two-channel, four-channel ultrasonic water meter newly launched according to ISO4064-2014 and GB/T778-2018.This series of ultrasonic water meters has the advantages of high range ratio, ultra-low power consumption, stable and reliable operation, etc. Every part of the water meter has IP68 protection level, which can be used in various harsh working environments, and is widely used in urban water supply, water resources management, agricultural irrigation, landscap-ing, industrial production and other industries. It is a major innovation in water metering technology.
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance.Defective meters or parts discovered within this period shall be replaced without charge upon return to the HBM Meters.
Description
Technical Parameter
Implementation standards: ISO4064-2014, GBT778-2018
Measure fluids: water, sewage, seawater (other liquids need to be customized) and fill the pipe
Fluid temperature :0.1-30℃
Working environment: Temperature: -30-45℃; Temperature 100%(RH)
Withstand pressure ：1.6MPa. Optional 2.5MPa.
Pressure loss : DN15-DN40 △P40; ≥DN50△P10
Upstream flow field sensitivity level: U3
Downstream flow field sensitivity level: Do
Climate and mechanical environment safety grade: C
Electromagnetic compatibility level: E2

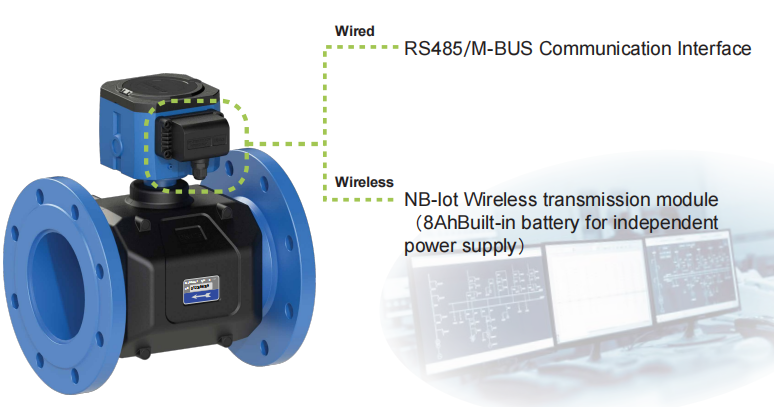

Communication interface: RS485/USART/ infrared, optional M-BUS; NB-lot wireless transmission
Output signal: OCT is optional
Power supply: 2 built-in lithium batteries (3.6V.8Ahy) External DC8-24V DC power supply
Protection level: IP68

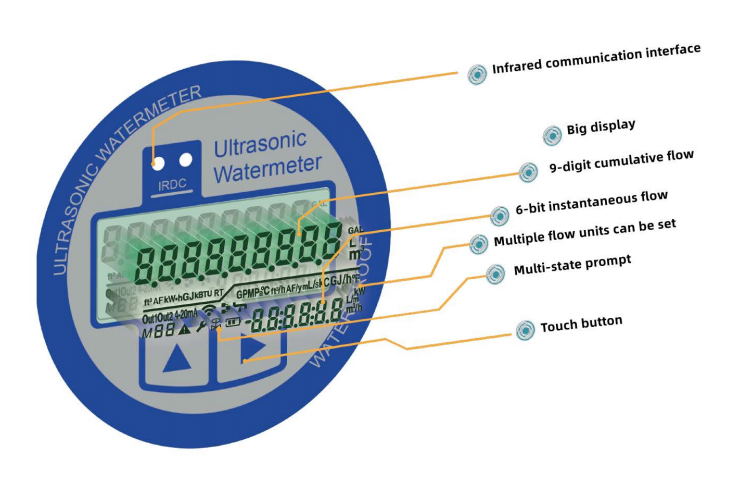

Local display: The two-line display includes 9-bit cumulant, 6-bit instantaneous flow, and various status prompts and units
Data storage: Use ferroelectric storage parameters to automatically record the accumulated traffic of the first 31 days of the previous 32 months
Current cycle measurement state: 1 time/second (can be set); Verification status: 4 times/second
Power consumption: standard stateus ≤ 30uA, can work continuously for more than 20 years
Material: Measuring tube body: carbon steel (stainless steel at sensor) ；Sensor: PEEK; Protective cover: nylon + Lang fiber
Display Operating

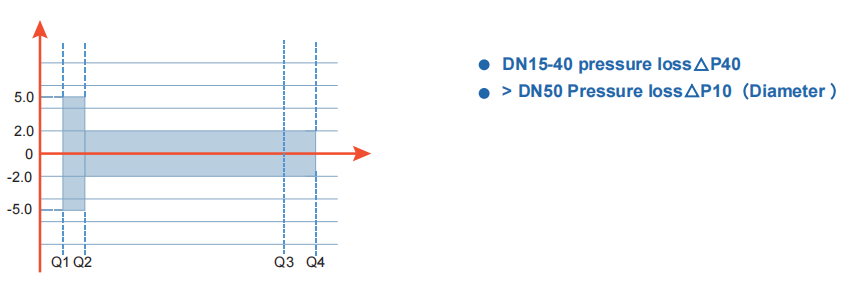

Error curve Pressure loss Communication & networking

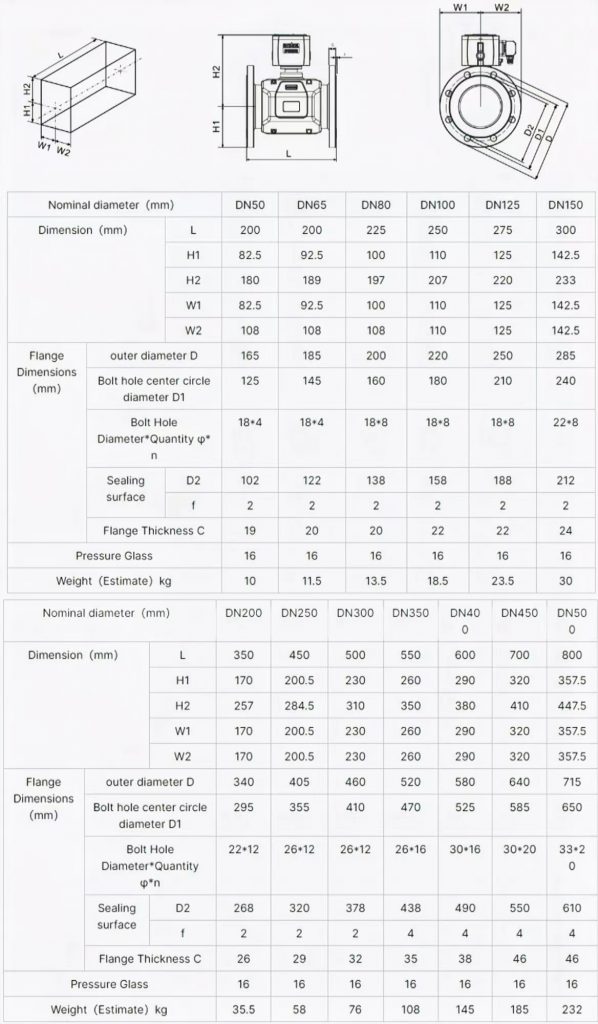

Dimension

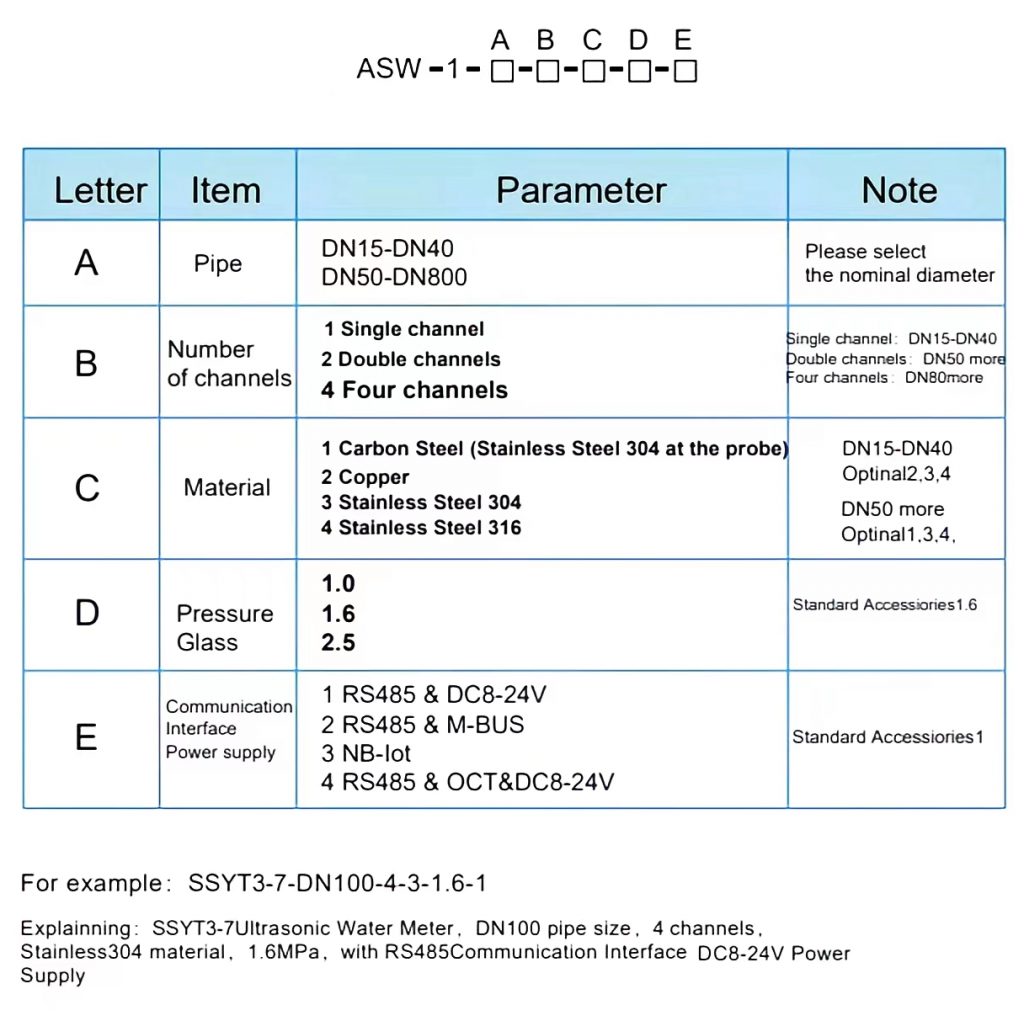

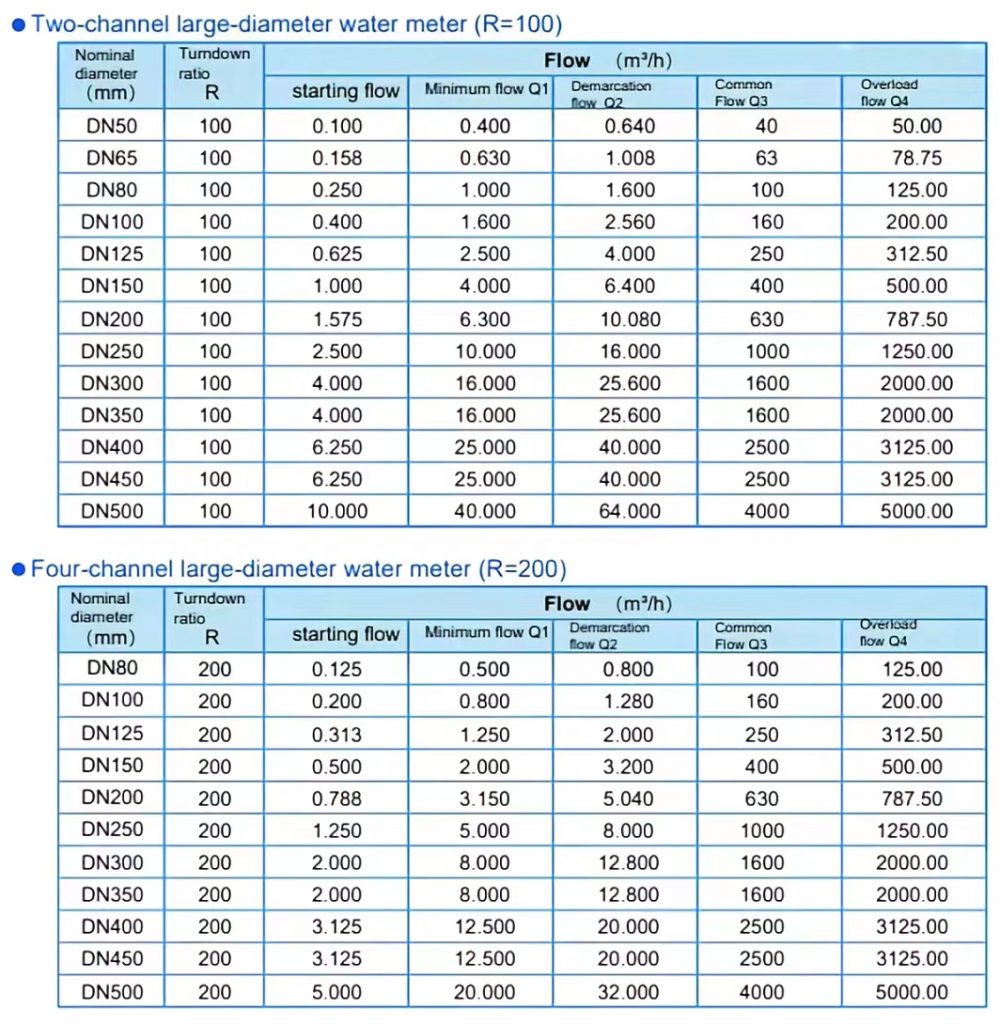

Flow range Selection code
