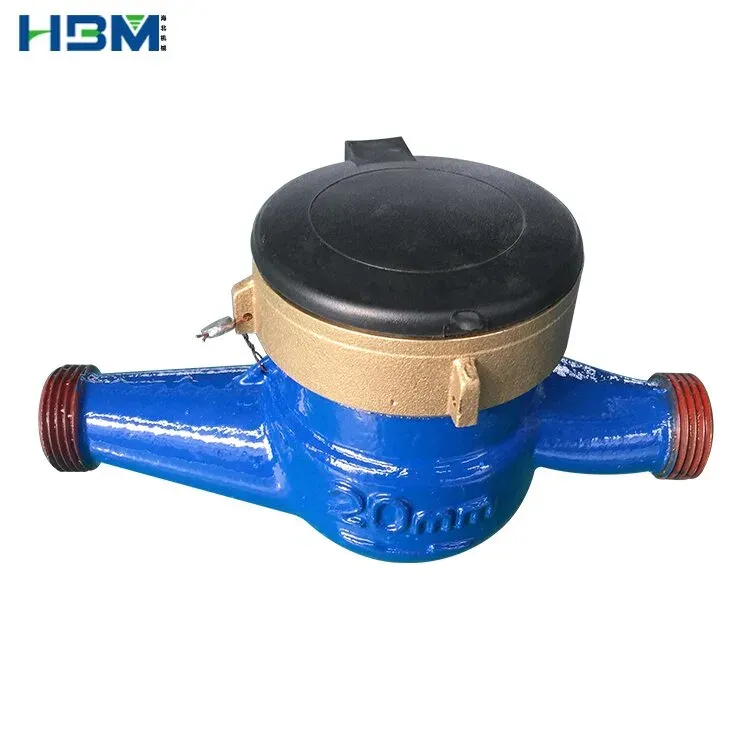

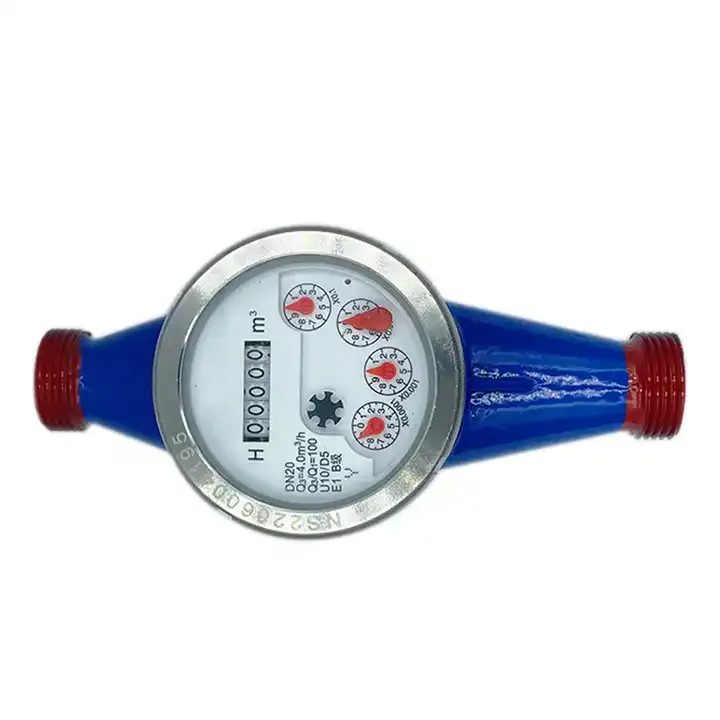

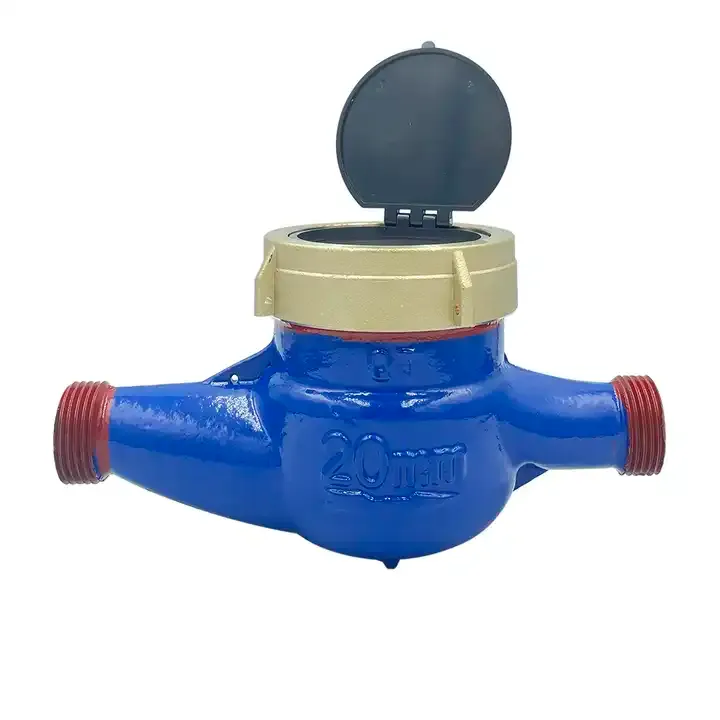

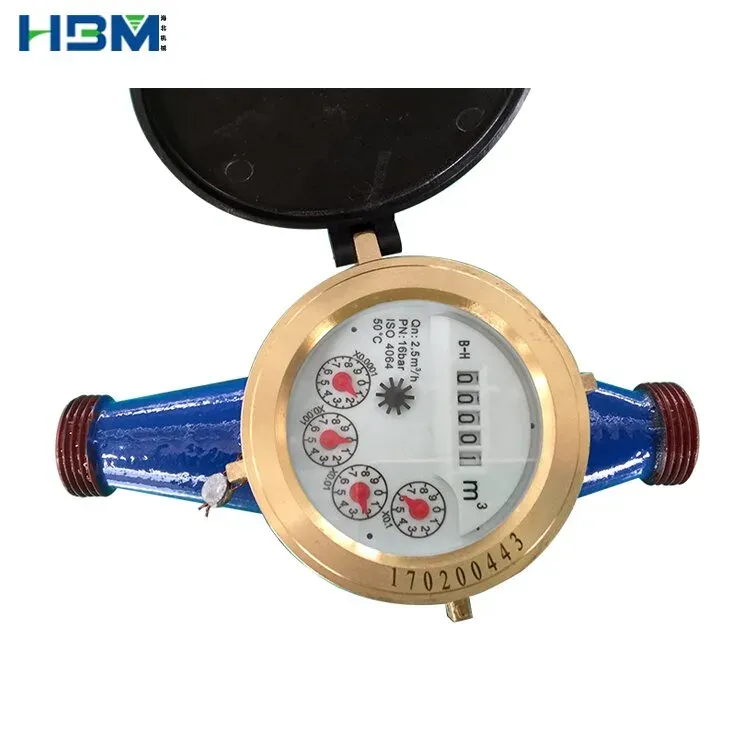

Cast Iron Cold (Hot) Multi Jet Water Meters DN15-50mm
Cast Iron Cold (Hot) Multi Jet Water Meters DN15-50mm. The DN15/20 connect can bring Non return valve & plastic filter.
Specifications
- Product
- Cast Iron Cold (Hot) Multi Jet Water Meters DN15-50mm
Application -Measuring the volume of cold (hot) water passing through the pipeline Feature -Multi-jet,dry dial,magnetic drive; -Vacuum sealed register, frost resistant,keeps clear reading for long time; -Removable measuring unit and strong universality, easy installation and maintenance; -Measuring high flowrate with low head loss,Inner and outside adjustment is optional; -Remote transmission device can be added upon request;such as Reed Switch or Hall pulse output; -Technical data conform to international standard ISO 4064. Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers. Working condition -Water temperature: 0.1℃～50℃ for cold water meter .0.1℃～90℃ for hot water meter. -Water pressure: PN10/16 -Pressure -loss class:△p25 Maximum permissible errors (1) From minimum flow -rate (Q1) inclusive to transitional flow-rate (Q2) exclusive ±5% (2) From transitional flrow-rate (Q2) to overload flow-rate(Q4):±2% ( Hot water meter±3% )
Optional Features -Register sealed type: Dry type; Semi-dry type; Super-dry type. -Accuracy: R=80 ; 100; 125; 160. -Brass, Iron ,Plastic Nylon,SS304,SS316 body can be choose. -Reed switch option. -Color can be change on body and cover. Dimensions Register
NOTE: The DN15/20 connect can bring Non return valve & plastic filter .
Thread end type : BSP / NPT.
