Agricultural irrigation (Sewage) type
Cast Iron agricultural irrigation（ Sewage ）type Turbine Water Meter
Cast Iron agricultural irrigation( Sewage )type Turbine Water Meter. LXXG(R)-50~300(mm) Irrigation(Sewage) Horizontal cold (hot) water meter.

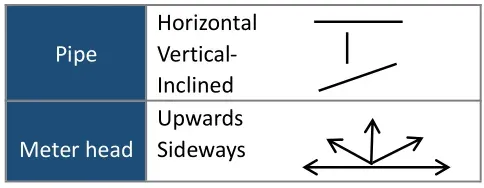

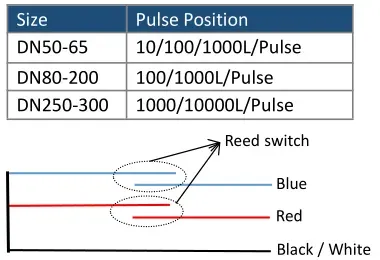

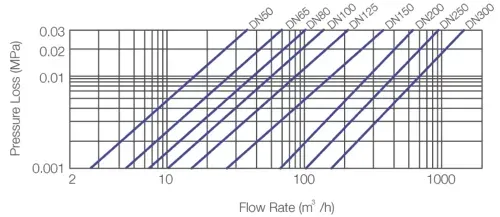

Specifications
- φD1 Outside diameter
- φD2 Bolt circle diameter Connecting Bolts (n- M)
- LXXG-50
- 50 200 253 165 125 4- M16
- LXXG-65
- 65 200 268 185 145 4- M16
- LXXG-80
- 80 225 284 200 160 8- M16
- LXXG-100
- 100 250 295 220 180 8- M16
- LXXG-125
- 125 250 310 250 210 8- M16
- LXXG-150
- 150 300 339 285 240 8- M20
- LXXG-200
- 200 350 382 340 295 8- M20(1.0MPa)
- LXXG-250
- 250 400 433 395 350 12- M20(1.0MPa)
- 450
- 438 405 355 12- M24(1.6MPa)
- LXXG-300
- 300 450 483 445 400 12-M20(1 0MPa)
- 500
- 488 460 410 12-M24(1.6MPa)
Specifications
Type | Size | L
Length | H
Height | Connecting flange
φD1
Outside
diameter | φD2 Bolt circle diameter | Connecting Bolts (n- M)
mm
LXXG-50 | 50 | 200 | 253 | 165 | 125 | 4- M16
LXXG-65 | 65 | 200 | 268 | 185 | 145 | 4- M16
LXXG-80 | 80 | 225 | 284 | 200 | 160 | 8- M16
LXXG-100 | 100 | 250 | 295 | 220 | 180 | 8- M16
LXXG-125 | 125 | 250 | 310 | 250 | 210 | 8- M16
LXXG-150 | 150 | 300 | 339 | 285 | 240 | 8- M20
LXXG-200 | 200 | 350 | 382 | 340 | 295 | 8- M20(1.0MPa)
12- M20(1.6MPa)
LXXG-250 | 250 | 400 | 433 | 395 | 350 | 12- M20(1.0MPa)
450 | 438 | 405 | 355 | 12- M24(1.6MPa)
LXXG-300 | 300 | 450 | 483 | 445 | 400 | 12-M20(1 0MPa)
500 | 488 | 460 | 410 | 12-M24(1.6MPa)
