LORA Wireless water meter

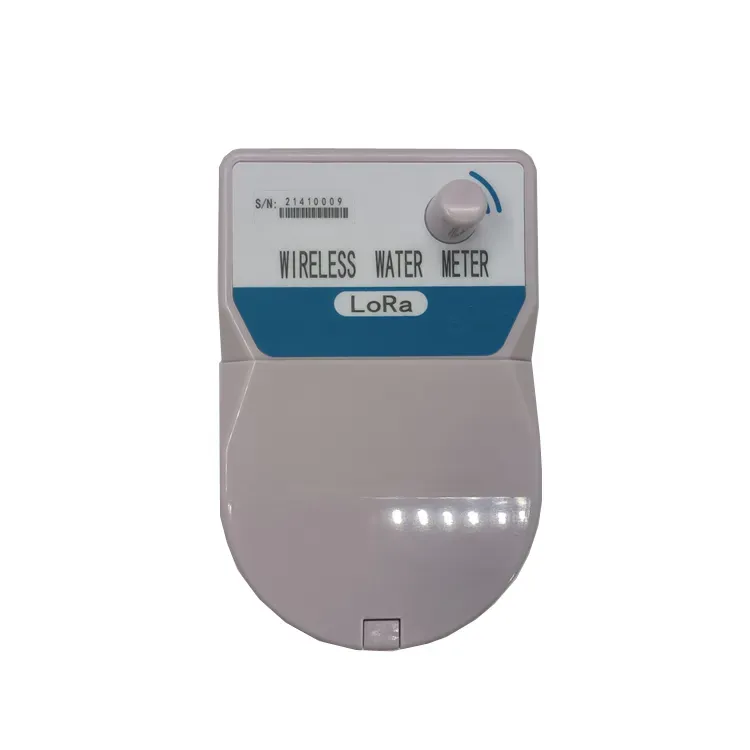

Electronic remote valve controlled water meter LoRa
Electronic remote valve controlled water meter LoRa. DN15-25 This type of water meter can be use of detection mode by double reed switch.
Specifications
- Product
- Electronic remote valve controlled water meter LoRa
With anti-magnetic interference function that when the two reed switches pick up caused by the magnetic interference, the valve closes off automatically; It automatically opens when the interference stops. With the battery voltage detection function, it can pass the power-off information to the management platform when the batetry almost runs out, facilitating the administrator to find that;Module with automatic data storage function when power down arises, assuring the data won't lost when power down, and when the power supply recovers,it is able to continue to work properly. The joint of the RF module and the base meter uses the integrated structure,with built-in antenna, reducing the damage of antenna in the process of installation.
Detailed

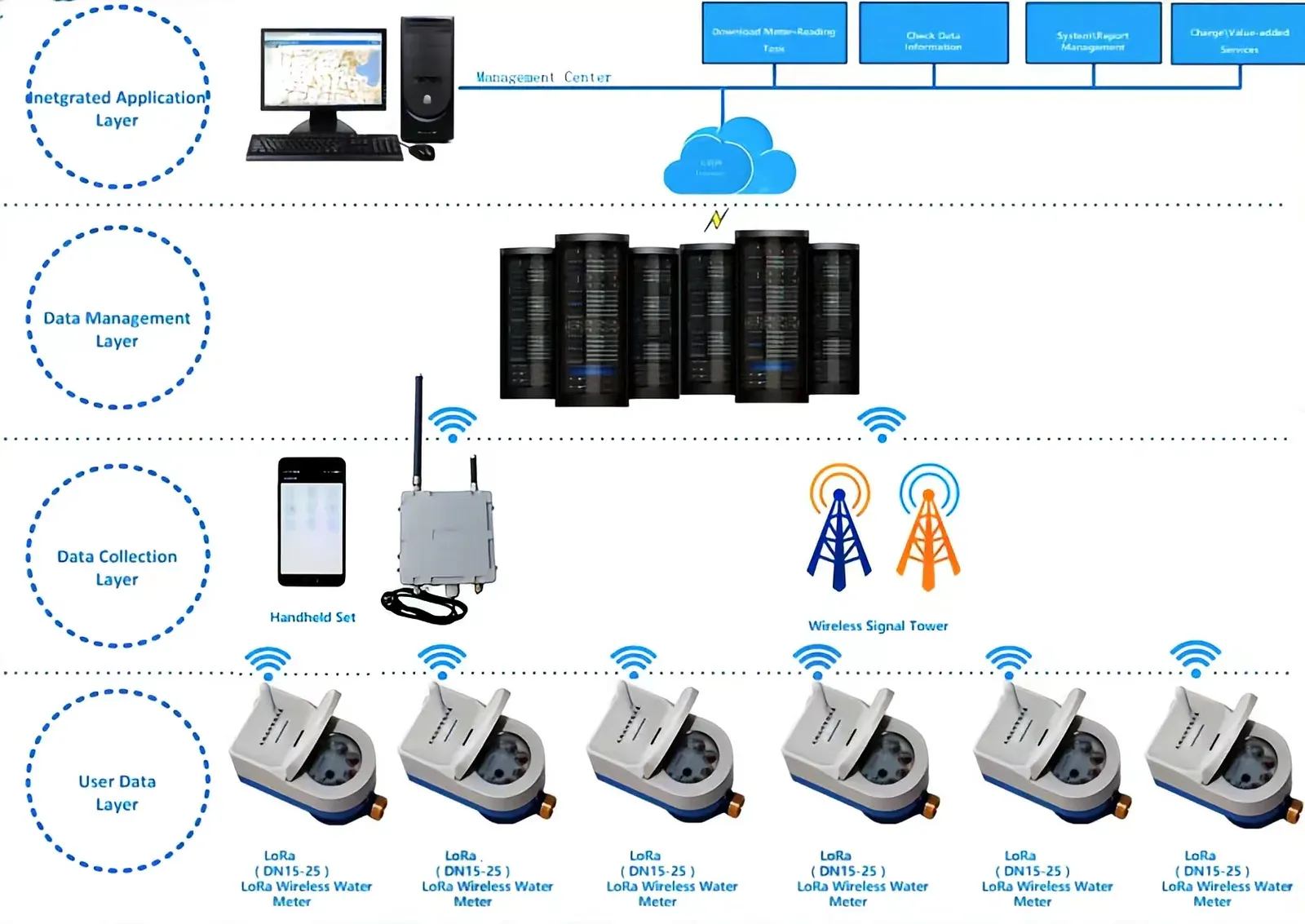

The communication distance of the wireless module can be optimized according to the different demands, peer-to-peer communication distance no less than 1000m(In open field condition, thus,during practical construction, the transfer impedance need to be considered). Use of LoRa transfer mode that can drastically extend the communication distance after the repeater(s) installed. The module uses of deep dormancy time design, it is able to completely close the wireless module during the deep dormancy time period(not in operation during night time ), which drastically help reduce the power consumption; Whole circuit board uses of ultra low power consumption design, power suuply by high capacity lithium battery,battery life over 8 years; Is able to set up the metering devices by the handset reader and check the original dat a and data from meter reading. AMI function that the system is able to control the shut on/off of the valve on real time by the help of the valve.

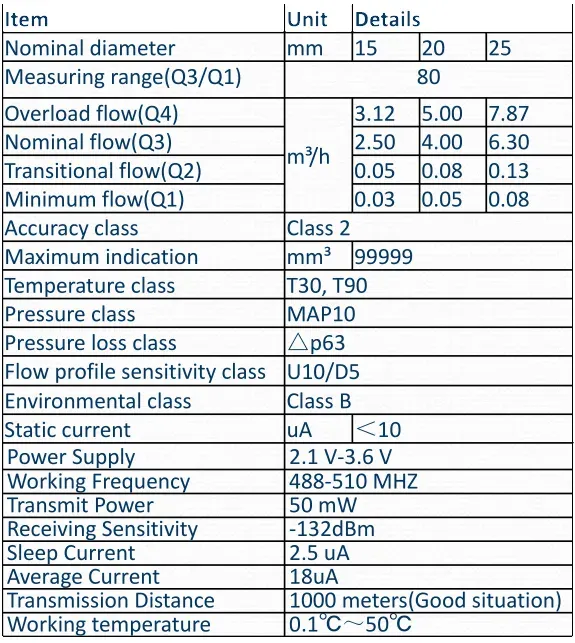

Power Supply: DC 2.8V-3.6V Battery Life Expectancy: >6 years Working Frequency: 488-510MHz Static Power Consumption: ≤10uA Average
Power Consumption: ≤18uA Working Pressure: ≤1.0MPa Pressure Loss: ≤0.063MPa Pressure Loss: ≤0.063MPa
Emitting Power: 50mW Receiving Sensitivity: -132dbm Peer-to-Peer Distance: 1500m Max Routing Levels: 8 Levels Settable
Working Temperature:Cold Water Meter:（0.1～30）℃;Hot Water Meter:（0.1～90）℃ Installation Environment: Class B
Electromagnetic Environment: E1-Residential, Commercial and industrial

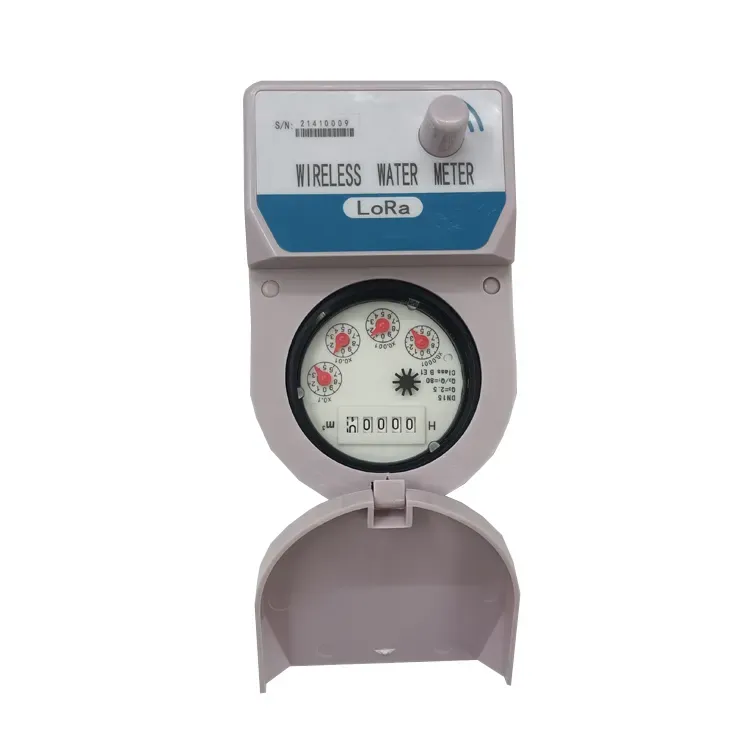

①、 Upright antenna to position the direction that drastically strengthen the receiving sensitivity of the signal. ②、 Unique clamshell design for dial counter that removes the issue of legibility caused by accumulated dust on dial register. ③、 For circuit board, using of complete potting and encapsulation technique, ensuring protection class up to IP67, is suited to all kinds of harsh environment
