Lorawan water meter

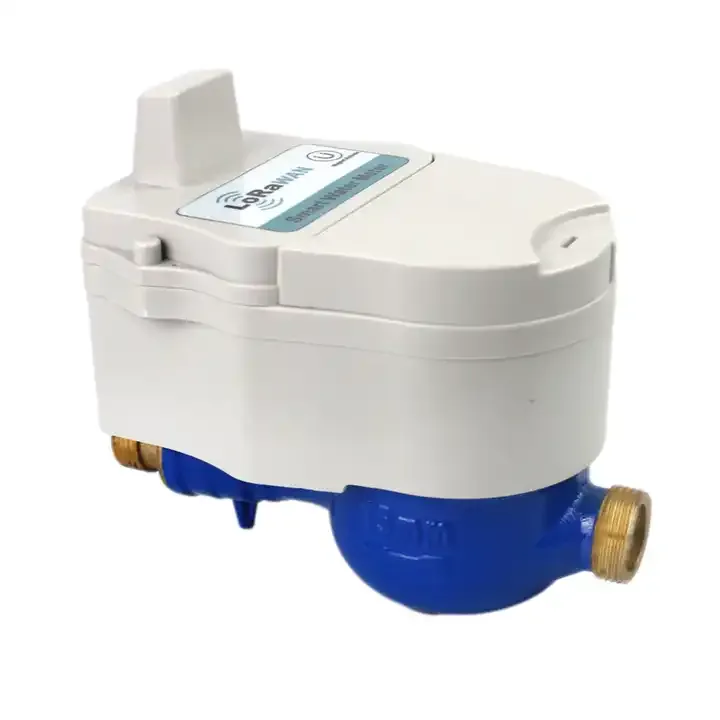

Lorawan smart water meter
Lorawan smart water meter. LoRaWAN smart water meter with an integrated radio module and low-power design for remote meter reading.
Specifications
- Parameter
- Min. Type Max. Units
- Operating Voltage
- 2.3 3.6 3.7 V
- Power on time
- - - 100 ms
- Working temperature range
- -20 25 75 ℃
- Operating humidity range
- 10 - 90 %rh
- Voltage
- -0.5 - 3.8 V
- I/O Level
- -0.3 - VDD+0.3 V
- storage temperature
- -40 - 125 ℃
- Model-DN
- Flow range Q3 Q4 Q2 Q1 Min. reading Max. reading
- Q3/Q1
- Q2/Q1 m3/h m3
- LXSY-15
- 80 1.6 2.5 3.125 0.05 0.03125 0.0001 999999
- LXSY-20
- 80 1.6 4.0 5.0 0.08 0.05 0.0001 999999
Specifications
Parameter | Min. | Type | Max. | Units
Operating Voltage | 2.3 | 3.6 | 3.7 | V
Power on time | - | - | 100 | ms
Working temperature range | -20 | 25 | 75 | ℃
Operating humidity range | 10 | - | 90 | %rh
Voltage | -0.5 | - | 3.8 | V
I/O Level | -0.3 | - | VDD+0.3 | V
storage temperature | -40 | - | 125 | ℃
Specifications
Model-DN | Flow range | Q3 | Q4 | Q2 | Q1 | Min. reading | Max. reading
Q3/Q1 | Q2/Q1 | m3/h | m3
LXSY-15 | 80 | 1.6 | 2.5 | 3.125 | 0.05 | 0.03125 | 0.0001 | 999999
LXSY-20 | 80 | 1.6 | 4.0 | 5.0 | 0.08 | 0.05 | 0.0001 | 999999
LXSY-25 | 80 | 1.6 | 6.3 | 7.875 | 0.126 | 0.07875 | 0.0001 | 999999
