Eight-word dial water meter

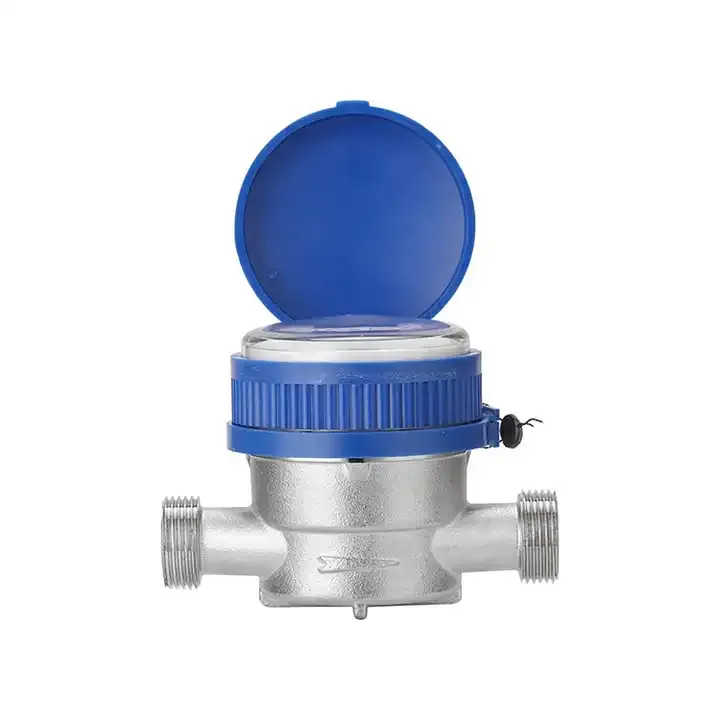

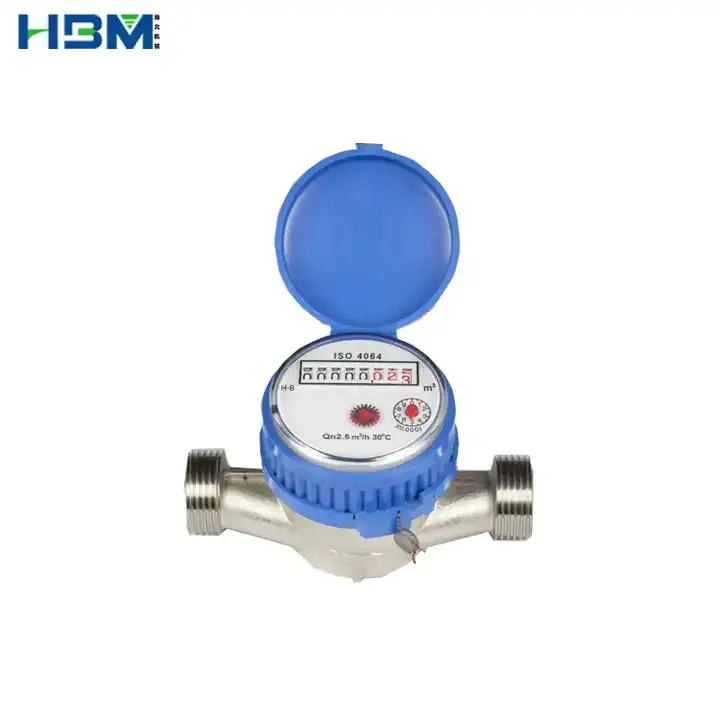

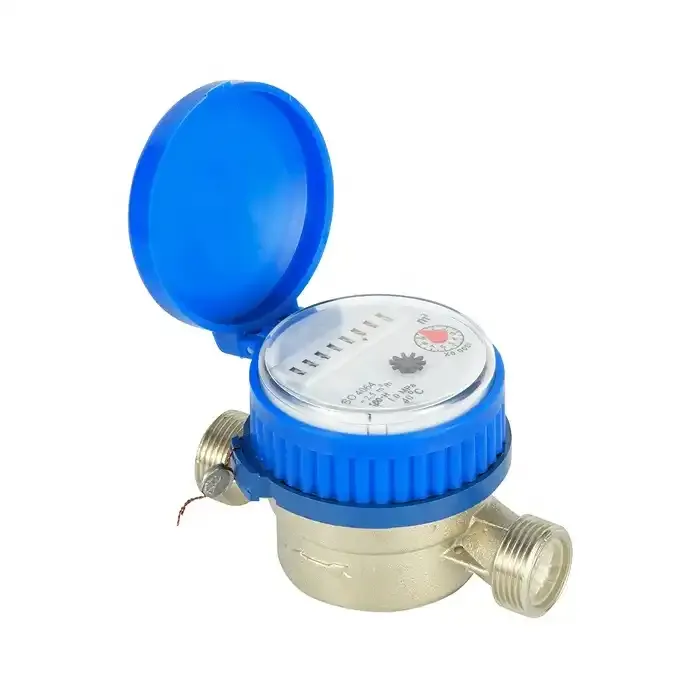

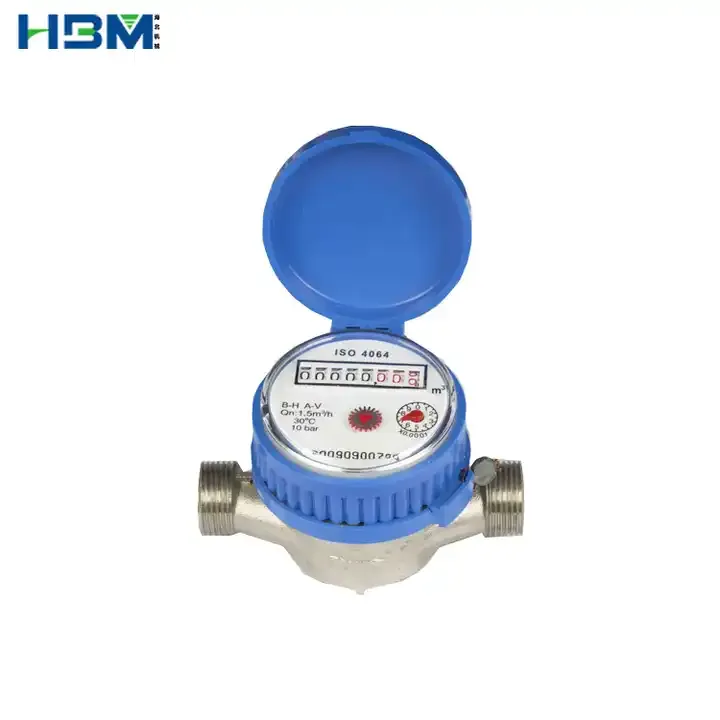

Stainless steel Cold (Hot) Single Jet Dry Dial 8 wheels water meter DN15-20(mm)
Stainless steel Cold (Hot) Single Jet Dry Dial 8 wheels water meter DN15-20(mm). Body material: Stainless steel body -Register sealed: Dry-dial only.
Specifications
- Product
- Stainless steel Cold (Hot) Single Jet Dry Dial 8 wheels water meter DN15-20(mm)
Application -Measuring the volume of cold (hot) water passing through the pipeline Feature -Single-jet, dry-dial, free rotating register, small in size and light in weight; -Magnetic drive, Resistance to exterior magnet interference, -keep the reading clear in a long term service; -Technical data conform to international standard ISO 4064. Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers. Working condition -Water temperature: 0.1℃～50℃ for cold water meter . 0.1℃～90℃ for hot water meter. -Water pressure: PN10/16 -Pressure -loss class:△p63 Maximum permissible errors Exploded View (1) From minimum flow -rate (Q1) inclusive to transitional flow-rate (Q2) exclusive ±5% (2) From transitional flrow-rate (Q2) to overload flow-rate (Q4):±2% ( Hot water meter±3% )
Optional Features -Available with different length on request.. -Body material: Stainless steel body -Register sealed: Dry-dial only. -Non-return valve. -Reed switch option. Dimensions

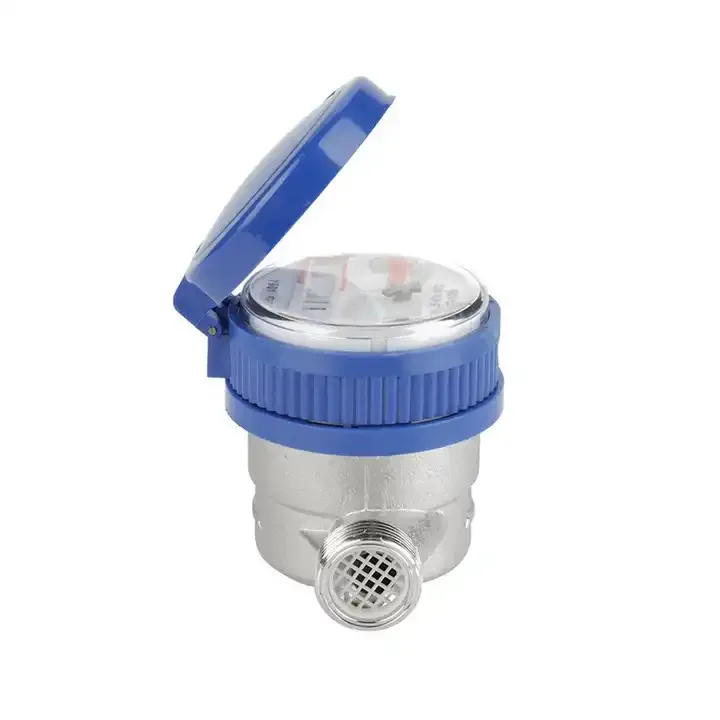

Note :The DN15/20 connect can bring Inlet filter . Thread end type : BSP / NPT.
