Flange industrial water meter
Gray iron case removable horizontal flange industrial water meter

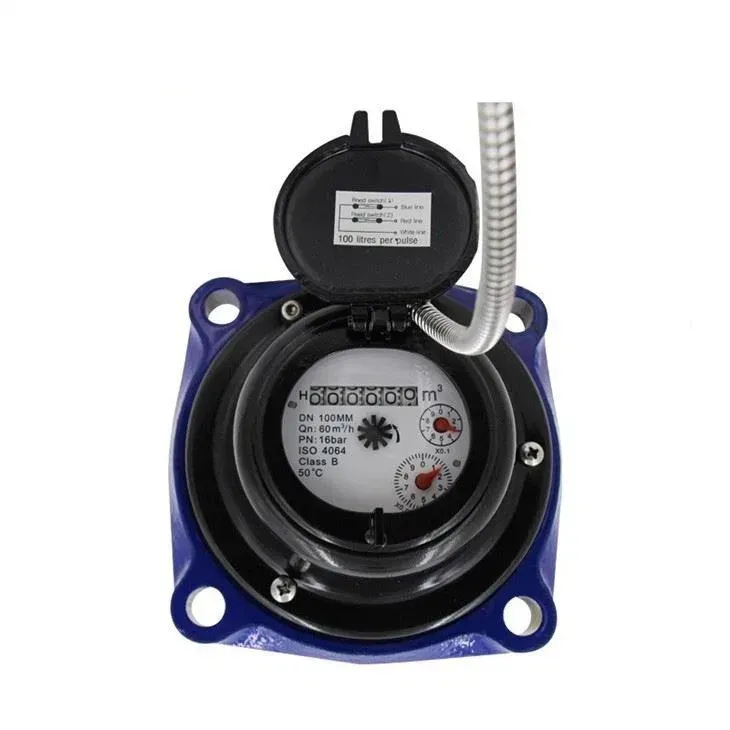

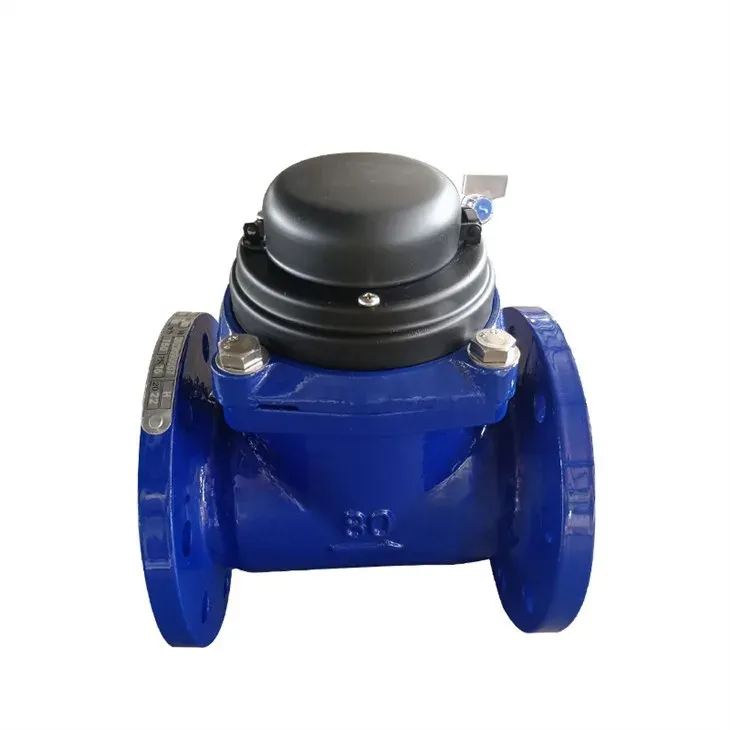

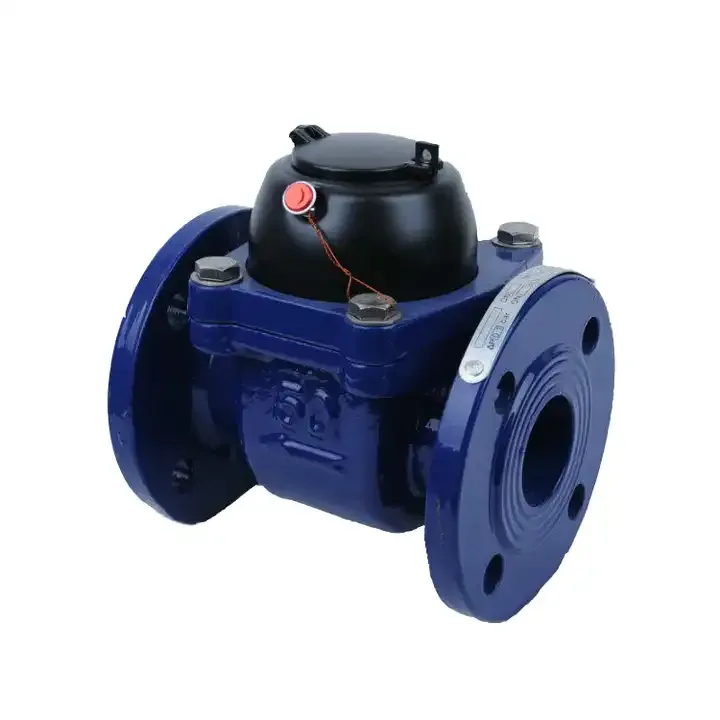

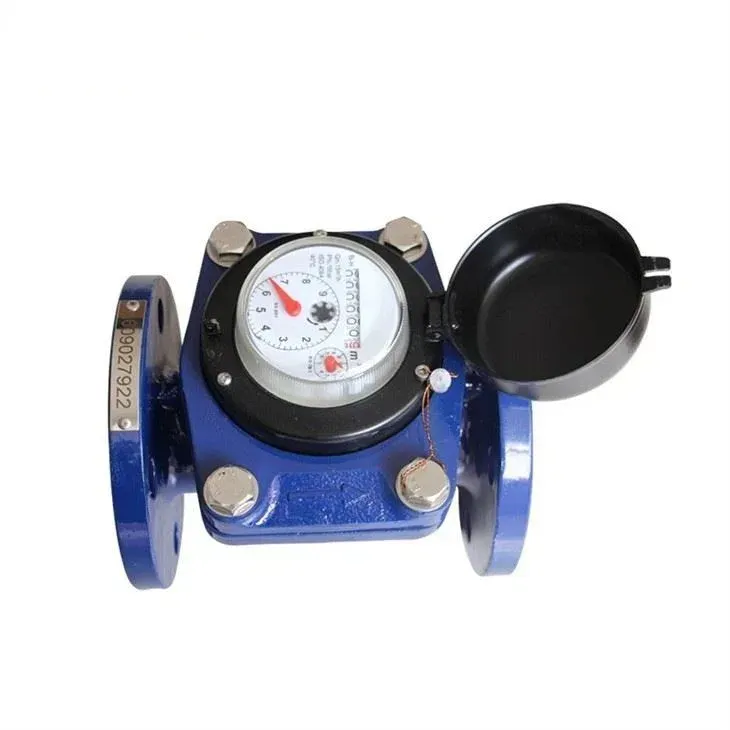

Gray iron case removable horizontal flange industrial water meter. Water meter is used for irrigation,municipality etc A flange is a connecting profile.
Specifications
- Flange Outer Φ mm
- Thread Hold center circle Φ mm Thread connect Numbers
- LXLC-50
- 50 200 232 380 165 125 4*M16 12
- LXLC-65
- 65 200 232 380 185 145 4*M16 13
- LXLC-80
- 80 225 252 360 200 160 8*M16 16
- LXLC-100
- 100 250 262 380 220 180 8*M16 18
- LXLC-125
- 125 250 275 380 250 210 8*M16 20
- LXLC-150
- 150 300 325 420 285 240 8*M20 38
- LXLC-200
- 200 350 352 420 340 295 8*M20 64
- LXLC-250
- 250 450 470 660 395 350 12*M20 94
- LXLC-300
- 300 500 492 660 445 400 12*M20 114

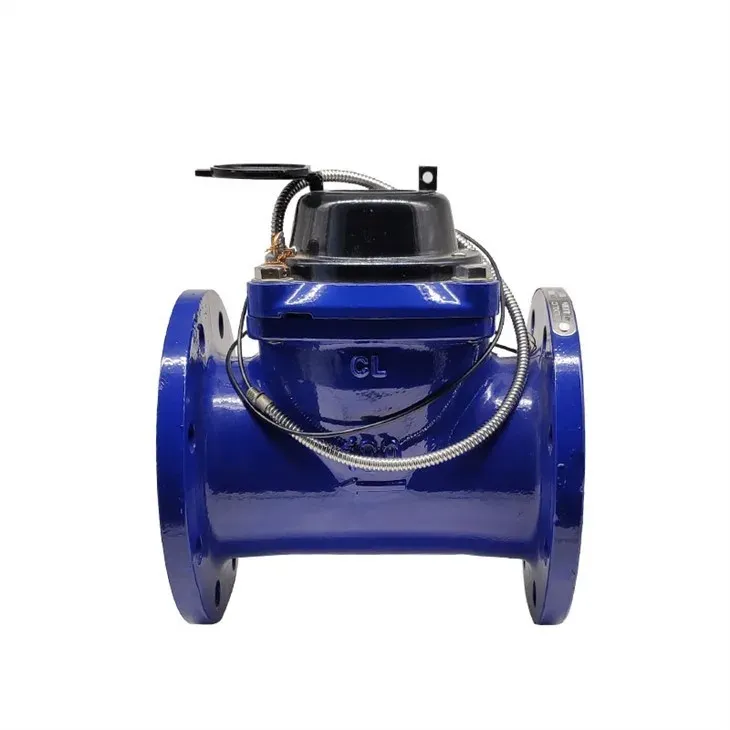

Operation mode: mechanical 、pulse output、 remote transmission RS485
Application Exploded View -Measuring the volume of cold (hot) water passing through the pipeline Feature -Removable element structure, easy installation and maintenance, Register for universal use within this range detachable without Removing the meter from the pipeline; -Dry-dial, Magnetic drive sensitive action, small pressure loss; -Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service; -Selected high quality materials for steady & reliable characteristic; -Technical data conform to international standard ISO 4064. Working condition -Water temperature: 0.1℃～50℃ for cold water meter .0.1℃～90℃ for hot water meter. -Water pressure: PN10/16/25 -Pressure -loss class:△p25 Maximum permissible errors (1) From minimum flow -rate (Q1) inclusive to transitional flow-rate (Q2) exclusive ±5% (2) From transitional flrow-rate (Q2) to overload flow-rate(Q4):±2% ( Hot water meter±3% )
W mm
Optional Features Dials -Plastic register, copper register and full glass register. -Reed switch option. -Flange standard can be choose. -360 degree rotate can be choose. -Cast iron, Ductile iron body . -Color can be change on body and cover.
Dimensions Installation
NOTE: The flange dimension conforms to ISO7005-2:1988 standard.
Order for products of special requirements is also accepted.
Pulse Position Pressure Loss Curve
Flow Technique Specification
Specifications
Model | Nominal Size | L mm | H mm | W mm | Connection Thread | Weight kg
Flange Outer Φ mm | Thread Hold center circle Φ mm | Thread connect Numbers
LXLC-50 | 50 | 200 | 232 | 380 | 165 | 125 | 4*M16 | 12
LXLC-65 | 65 | 200 | 232 | 380 | 185 | 145 | 4*M16 | 13
LXLC-80 | 80 | 225 | 252 | 360 | 200 | 160 | 8*M16 | 16
LXLC-100 | 100 | 250 | 262 | 380 | 220 | 180 | 8*M16 | 18
LXLC-125 | 125 | 250 | 275 | 380 | 250 | 210 | 8*M16 | 20
LXLC-150 | 150 | 300 | 325 | 420 | 285 | 240 | 8*M20 | 38
LXLC-200 | 200 | 350 | 352 | 420 | 340 | 295 | 8*M20 | 64
LXLC-250 | 250 | 450 | 470 | 660 | 395 | 350 | 12*M20 | 94
LXLC-300 | 300 | 500 | 492 | 660 | 445 | 400 | 12*M20 | 114
