Flange industrial water meter

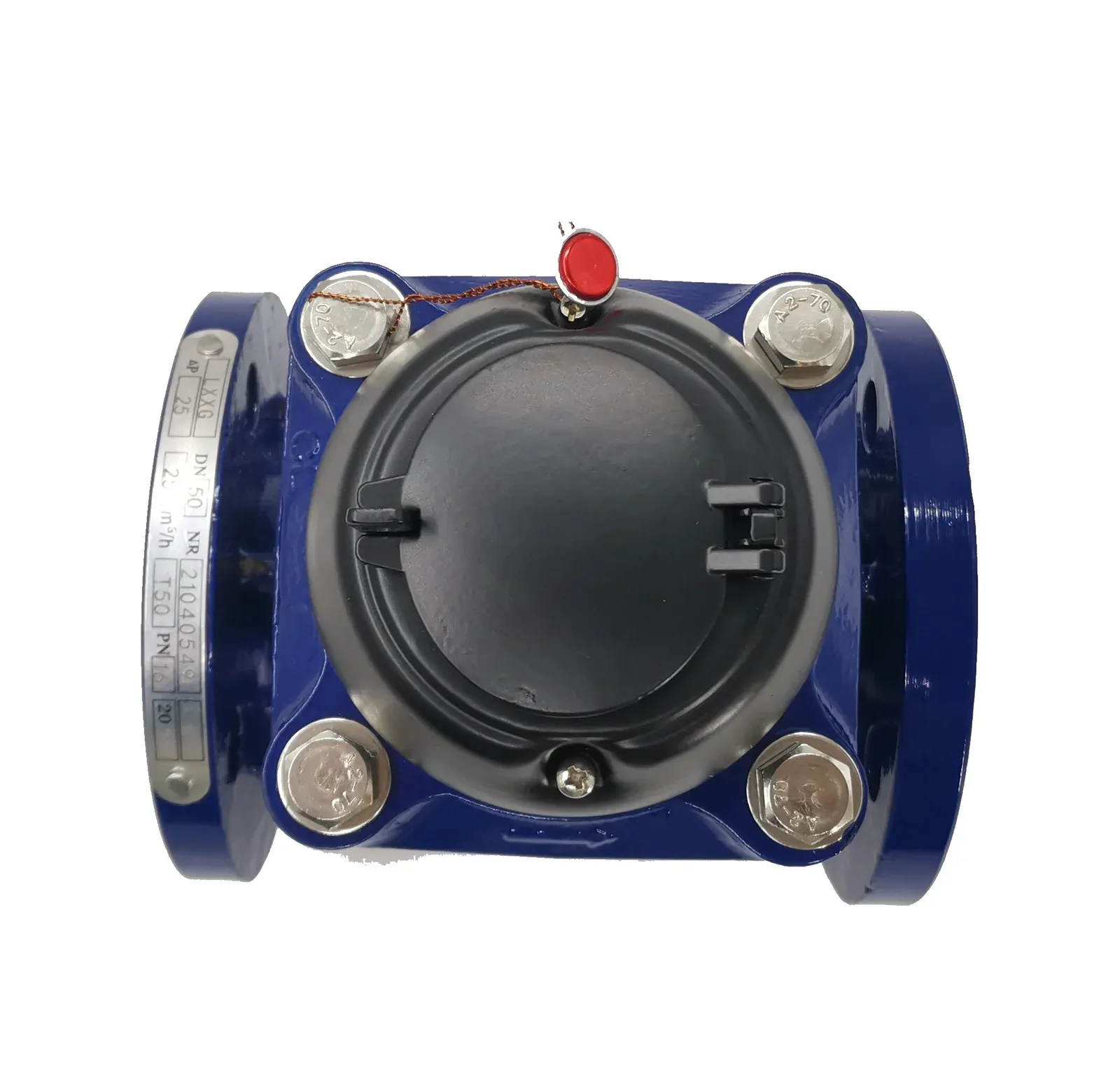

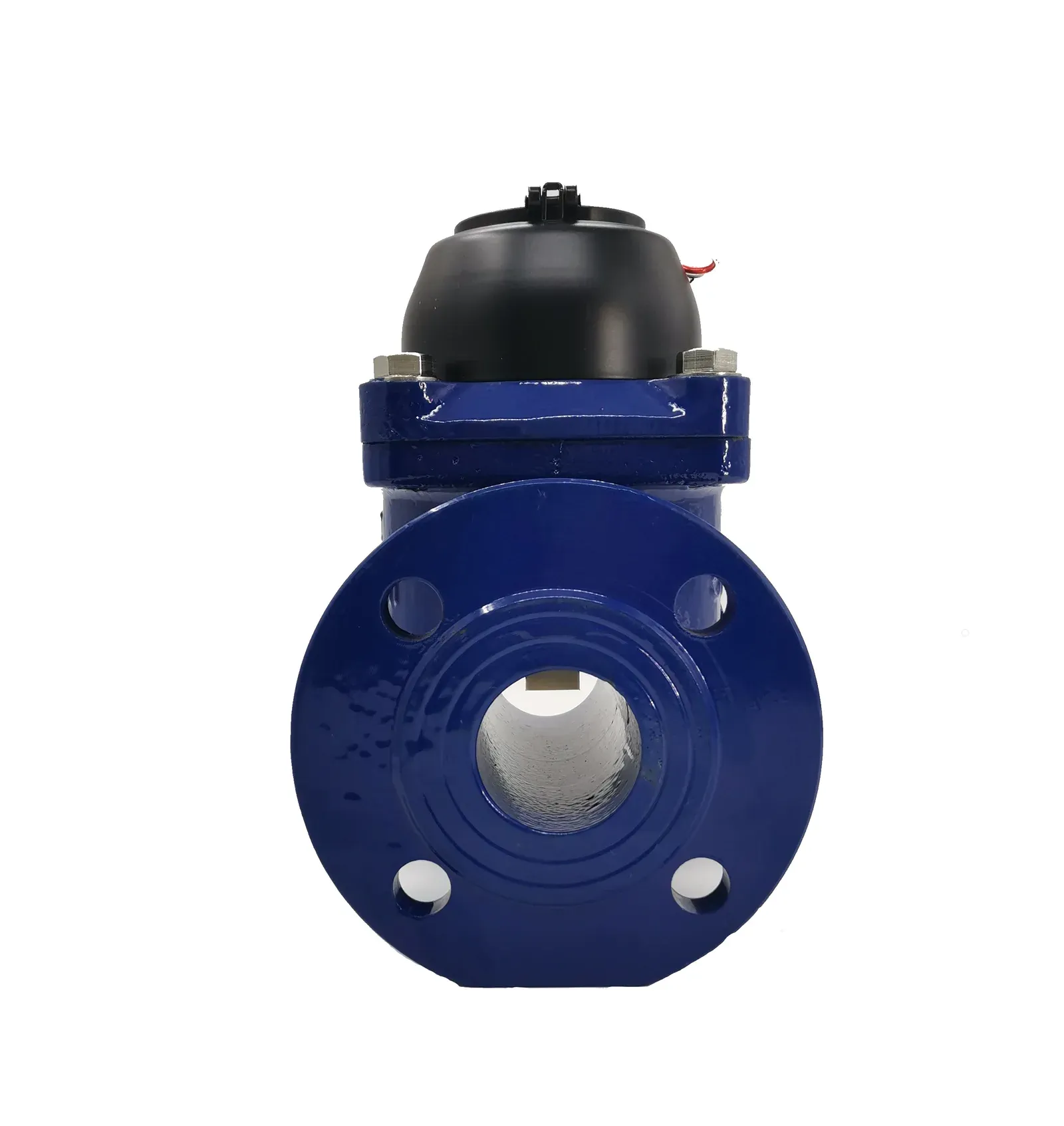

Nodular cast iron removable horizontal flange industrial water meter
Nodular cast iron removable horizontal flange industrial water meter. Water meter is used for irrigation,municipality etc A flange is a connecting profile.
Specifications
- Flange Outer Φ mm
- Thread Hold center circle Φ mm Thread connect Numbers
- LXLC-50
- 50 200 232 380 165 125 4*M16 12
- LXLC-65
- 65 200 232 380 185 145 4*M16 13
- LXLC-80
- 80 225 252 360 200 160 8*M16 16
- LXLC-100
- 100 250 262 380 220 180 8*M16 18
- LXLC-125
- 125 250 275 380 250 210 8*M16 20
- LXLC-150
- 150 300 325 420 285 240 8*M20 38
- LXLC-200
- 200 350 352 420 340 295 8*M20 64
- LXLC-250
- 250 450 470 660 395 350 12*M20 94
- LXLC-300
- 300 500 492 660 445 400 12*M20 114
Product Details:
Available Sizes: DN50~DN300 Material: Nodular Cast iron Connection: Welding
Application: Pipeline Application Trademark: OEM Thread: BSP NPT
Central Gear The center gear is equipped with four samarium cobalt magnets,which are not easy to weathering,degaussing and losing data.This ensures the life of the central transmission part of the water meter and the accuracy of measurement.
Dial Cover lt's made of food grade PC(polycarbonate) with transparent material. Fixed with screws,easy to replace.With double reed switch design, if one of them is damaged, it can still work normally.
Anti Magnetic Ring When the reed switch is installed, the anti-magnetic ring is added, the pig iron material is required, and the signal strength of the magnet steel is required to be 3,000-4,000 gauss,which ensures the stable output of the pulse signal.

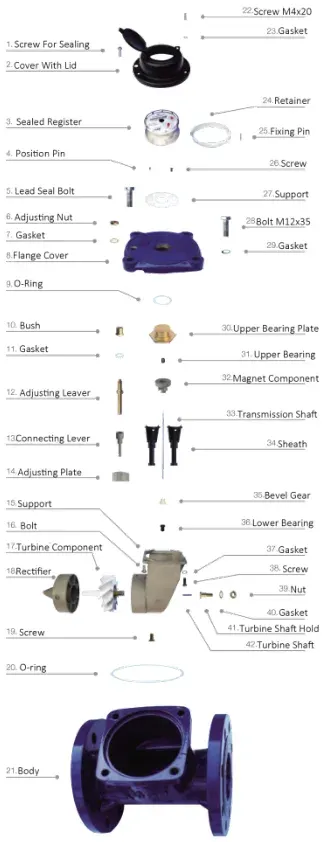

Upper Bearing Plate Exploded View Selection of copper plate, good magnetic transmission effect,not easy to crack, high durability.
Transmission Gear Drive gear,well-made, no burr, to ensure the accurate operation of the counting part.
Application -Measuring the volume of cold (hot) water passing through the pipeline Feature -Removable element structure, easy installation and maintenance, Register for universal use within this range detachable without Removing the meter from the pipeline; -Dry-dial, Magnetic drive sensitive action, small pressure loss; -Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service; -Selected high quality materials for steady & reliable characteristic; -Technical data conform to international standard ISO 4064. Working condition -Water temperature: 0.1℃～50℃ for cold water meter .0.1℃～90℃ for hot water meter. -Water pressure: PN10/16/25 -Pressure -loss class:△p25 Maximum permissible errors (1) From minimum flow -rate (Q1) inclusive to transitional flow-rate (Q2) exclusive ±5% (2) From transitional flrow-rate (Q2) to overload flow-rate(Q4):±2% ( Hot water meter±3% )
W mm

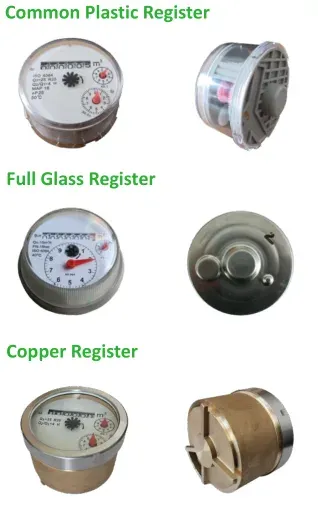

Optional Features Dials -Plastic register, copper register and full glass register. -Reed switch option. -Flange standard can be choose. -360 degree rotate can be choose. -Cast iron, Ductile iron body . -Color can be change on body and cover.
Dimensions Installation
NOTE: The flange dimension conforms to ISO7005-2:1988 standard.
Order for products of special requirements is also accepted.
Pulse Position Pressure Loss Curve
Flow Technique Specification
Specifications
Model | Nominal Size | L mm | H mm | W mm | Connection Thread | Weight kg
Flange Outer Φ mm | Thread Hold center circle Φ mm | Thread connect Numbers
LXLC-50 | 50 | 200 | 232 | 380 | 165 | 125 | 4*M16 | 12
LXLC-65 | 65 | 200 | 232 | 380 | 185 | 145 | 4*M16 | 13
LXLC-80 | 80 | 225 | 252 | 360 | 200 | 160 | 8*M16 | 16
LXLC-100 | 100 | 250 | 262 | 380 | 220 | 180 | 8*M16 | 18
LXLC-125 | 125 | 250 | 275 | 380 | 250 | 210 | 8*M16 | 20
LXLC-150 | 150 | 300 | 325 | 420 | 285 | 240 | 8*M20 | 38
LXLC-200 | 200 | 350 | 352 | 420 | 340 | 295 | 8*M20 | 64
LXLC-250 | 250 | 450 | 470 | 660 | 395 | 350 | 12*M20 | 94
LXLC-300 | 300 | 500 | 492 | 660 | 445 | 400 | 12*M20 | 114
