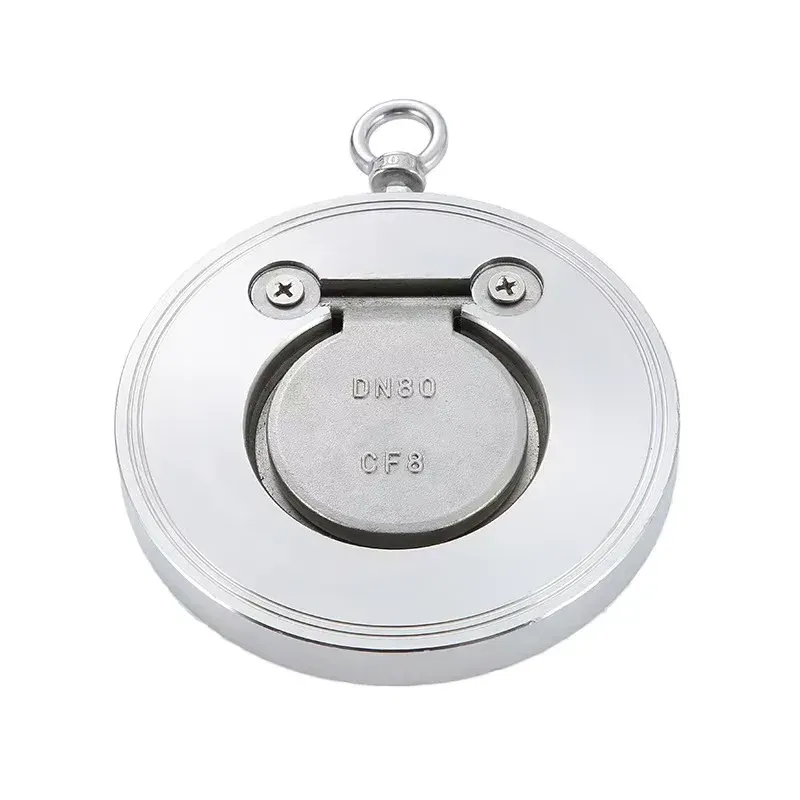

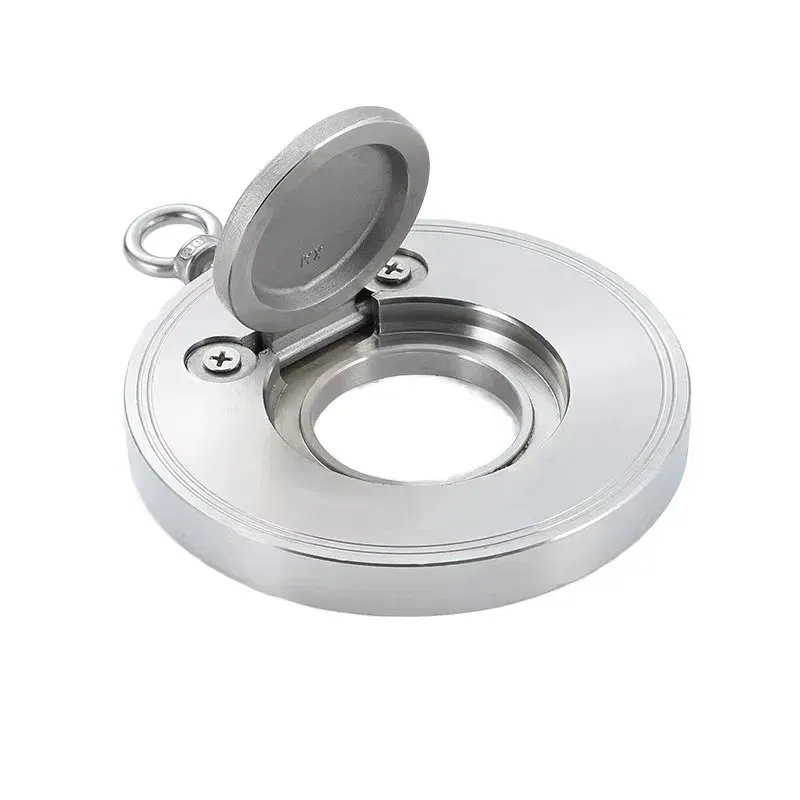

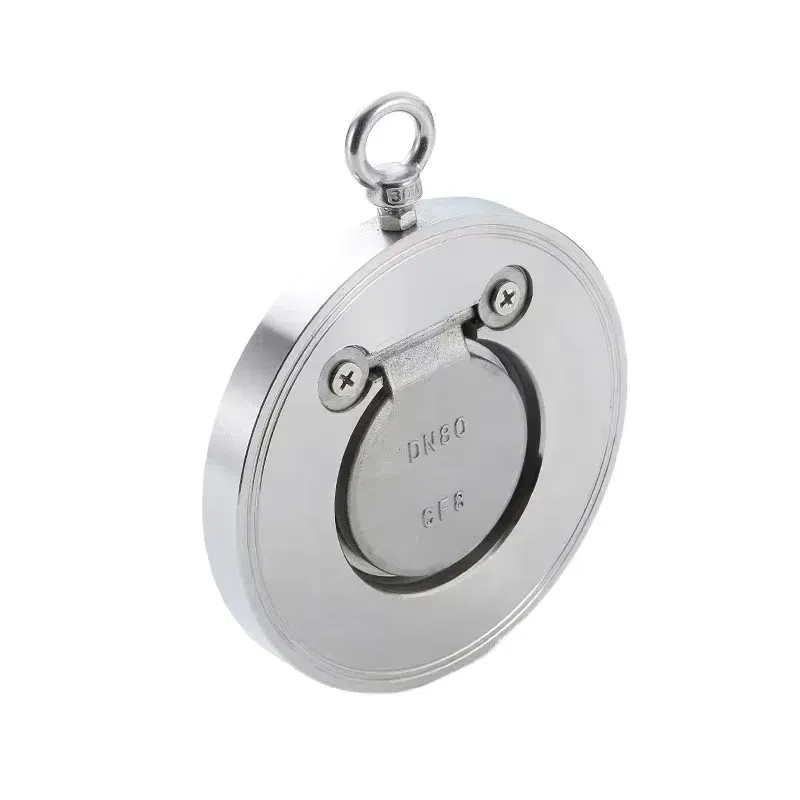

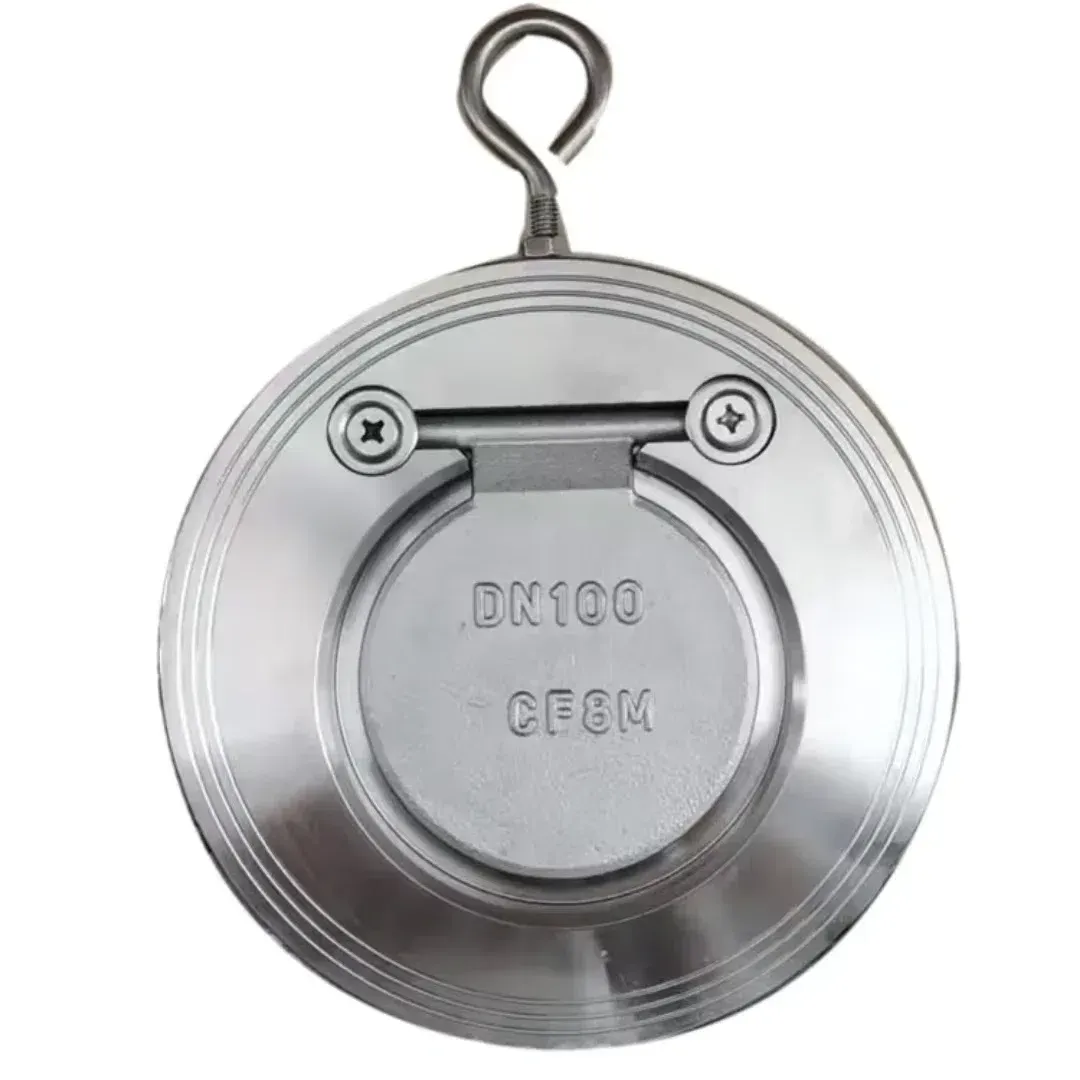

H74 Clamp single flap swing check valve

H74 Clamp single flap swing check valve. Clamp single-flap swing check valve with short structural length and quick, spring-assisted closing.

Specifications

Structural form

Type H74 Clamp single flap swing check valve

Water hammer pressure

Small, short disc stroke, and spring assisted closing, closing speed fast

Size and weight

The structure is very short in length, small in size and light in weight, which brings great convenience to the installation,handling, storage and pipeline layout of the valve, and can save a lot of m

Fluid resistance

Small, the fluid resistance coefficient is 2.6~2.7, with the increase of valve diameter, the fluid resistance coefficient decreases

Install

Can be installed horizontally or vertically, light weight, no need to set a support for the valve

Opening pressure

Very small, the disc can be fully opened at a small pressure difference

Reliability

The valve is the whole structure, simple and compact, the impact force is small when the valve is closed, the water hammer pressure is small, the valve life is long and the reliability is high
