Check valve

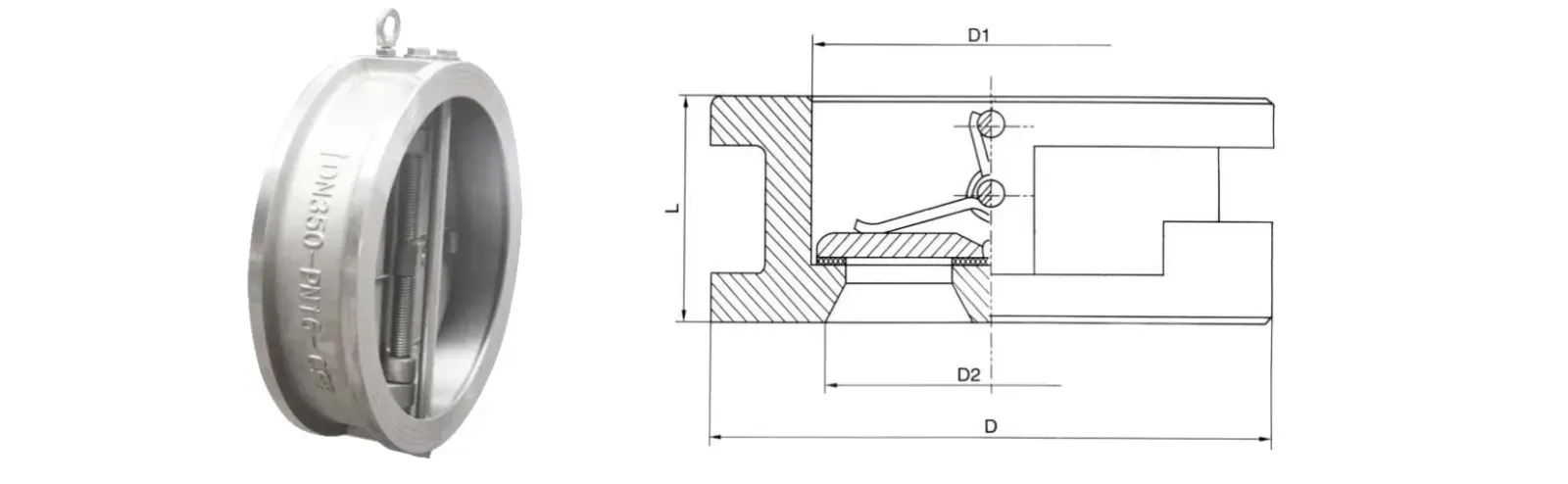

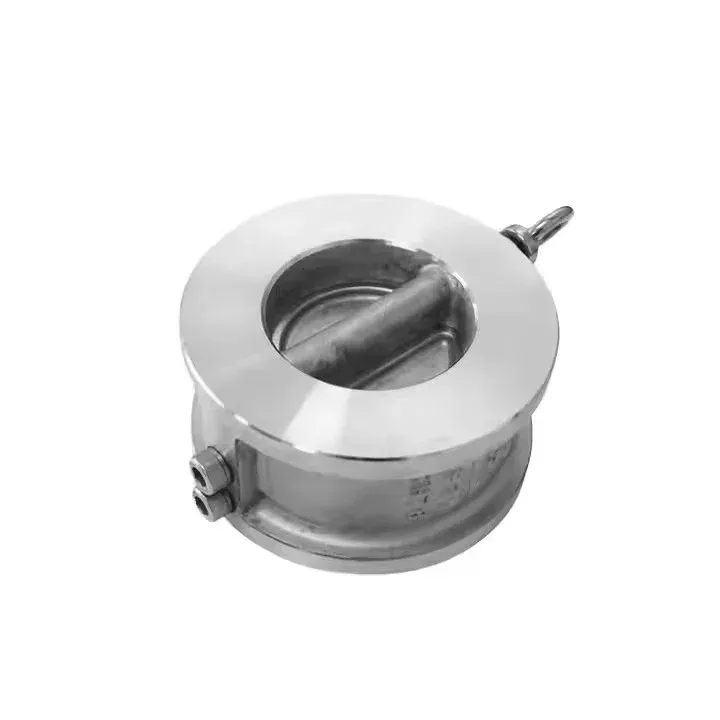

H77 Clamp Butterfly check valve
H77 Clamp Butterfly check valve. The structure length is short, its structure length is only 1/4 to 1/8 of the traditional flange check valve.
Specifications
- Structural form
- Type H77 Clamp double flap swing check valve
- Water hammer pressure
- Small, short disc stroke, and spring assisted closing, closing speed fast
- Size and weight
- The structure is very short in length, small in size and light in weight, which brings great convenience to the installation,handling, storage and pipeline layout of the valve, and can save a lot of m
- Fluid resistance
- Small, the fluid resistance coefficient is 2.6~2.7, with the increase of valve diameter, the fluid resistance coefficient decreases
- Install
- Can be installed horizontally or vertically, light weight, no need to set a support for the valve
- Opening pressure
- Very small, the disc can be fully opened at a small pressure difference
- Reliability
- The valve is the whole structure, simple and compact, the impact force is small when the valve is closed, the water hammer pressure is small, the valve life is long and the reliability is high
Standards and specifications
1, Design and manufacturing :API 594, API 6D, JB/T 8937:
2, structure length :API 594, API 6D, DIN 3202, JB/T 8937;
3, pressure-temperature rating :ANSIB 16.34, DIN 2401, GB/T 9124, HG 20605, SH 3406, JB/T 74;
4, test and inspection :API 598, JB/T 9092: 5, pipe flange; JBT 74~90, GB/T9112~9124, HG20592~20635, SH 3406, ANSIB 16.
5, DIN 2543~2548, GBT 13402, AP1 605,ASME B 16.47.
Structural characteristics
1, the structure length is short, its structure length is only 1/4 to 1/8 of the traditional flange check valve;
2, small size, light weight, its weight is only 1/4 to 1/20 of the traditional flange check valve;
3, and valve closing fast, water hammer pressure is small:
4, horizontal pipe or vertical pipe can be used, installation;
5, smooth flow channel, low fluid resistance;
6, sensitive action, good sealing performance:
7, the disc stroke is short, the valve closing impact is small;
8, the overall structure, simple and compact, beautiful shape:
9, long service life, strong reliability.

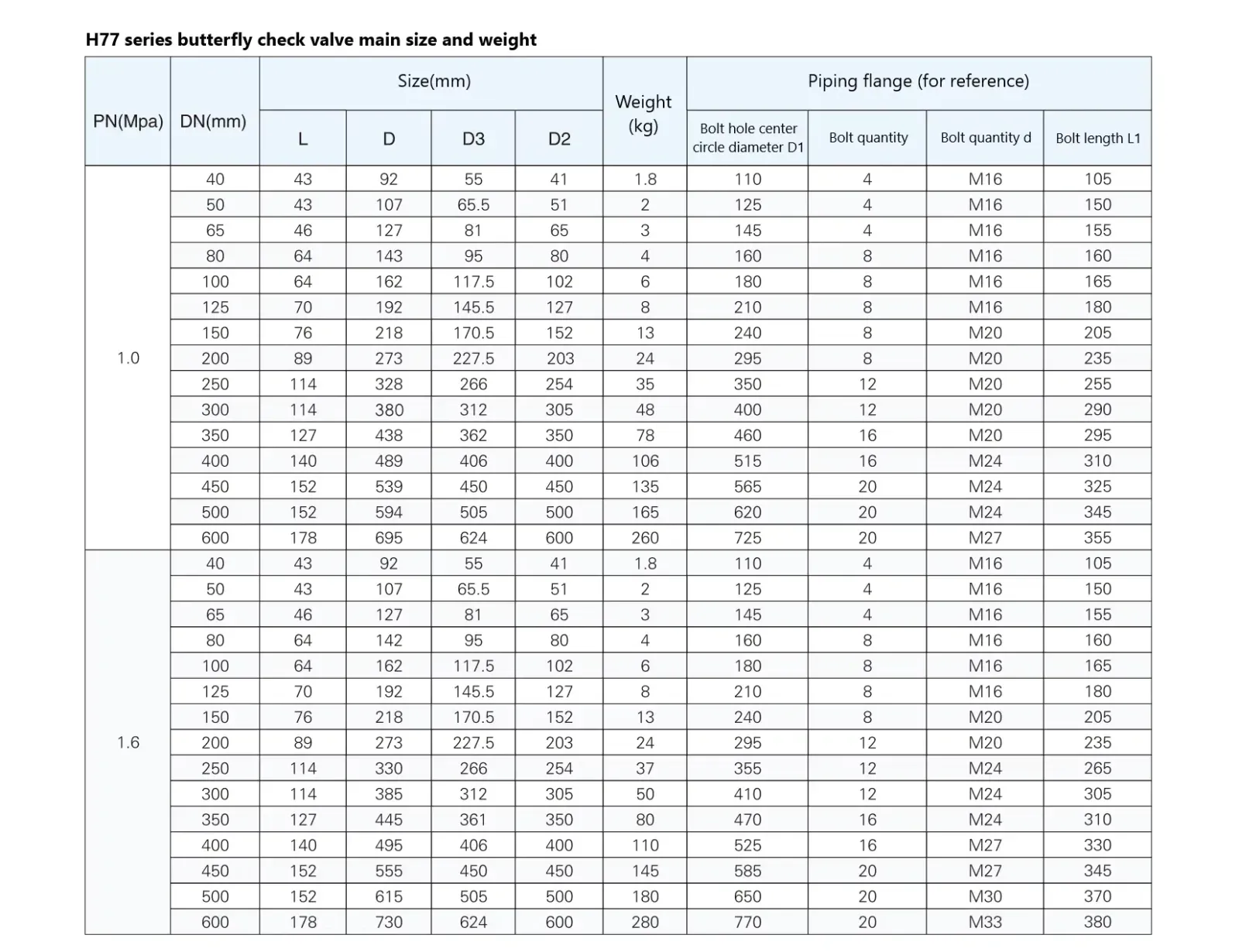

Specifications
Structural form | Type H77 Clamp double flap swing check valve
Water hammer pressure | Small, short disc stroke, and spring assisted closing, closing speed fast
Size and weight | The structure is very short in length, small in size and light in weight, which brings great convenience to the installation,handling, storage and pipeline layout of the valve, and can save a lot of materials and reduce the cost
Fluid resistance | Small, the fluid resistance coefficient is 2.6~2.7, with the increase of valve diameter, the fluid resistance coefficient decreases
Install | Can be installed horizontally or vertically, light weight, no need to set a support for the valve
Opening pressure | Very small, the disc can be fully opened at a small pressure difference
Reliability | The valve is the whole structure, simple and compact, the impact force is small when the valve is closed, the water hammer pressure is small, the valve life is long and the reliability is high
