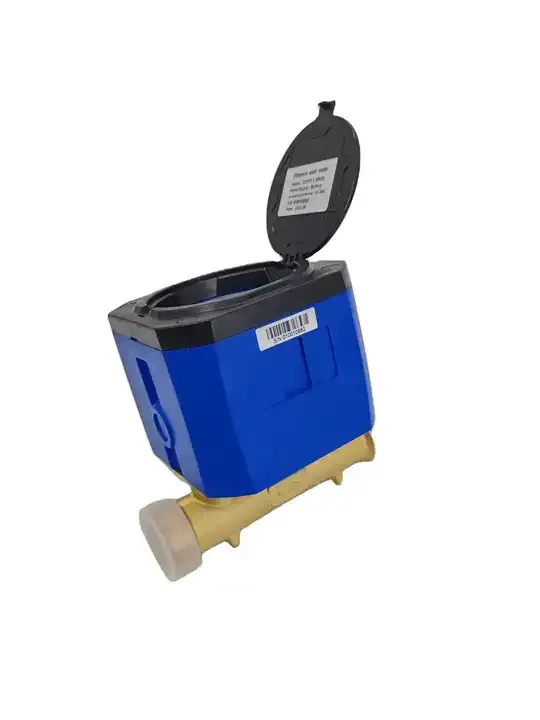

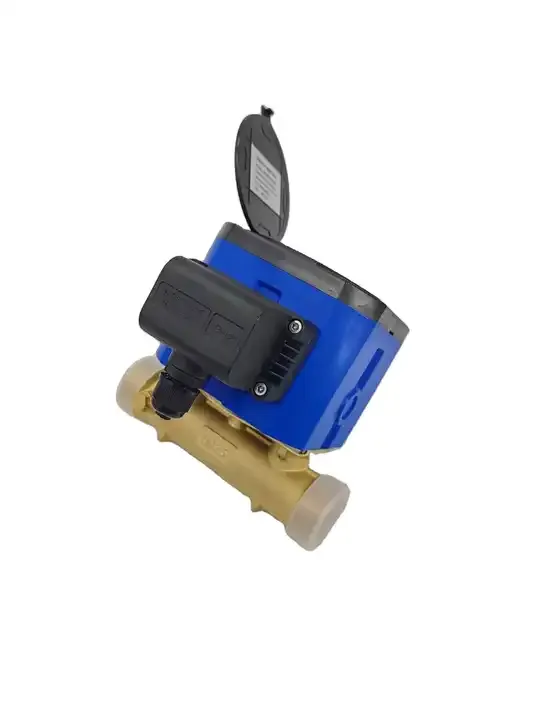

Industrial Grade Small Diameter Ultrasonic Water Meter

Industrial Grade Small Diameter Ultrasonic Water Meter. (DN15-DN40) This series of ultrasonic water meters has the advantages of high range ratio.

Specifications

Implementation standards: ISO4064-2014, GBT778-2018

Measure fluids: water, sewage, seawater (other liquids need to be customized) and fill the pipe

Fluid temperature : 0.1-30℃

Working environment: Temperature: -30-45℃; Temperature 100%(RH)

Withstand pressure ： 1.6MPa. Optional 2.5MPa.

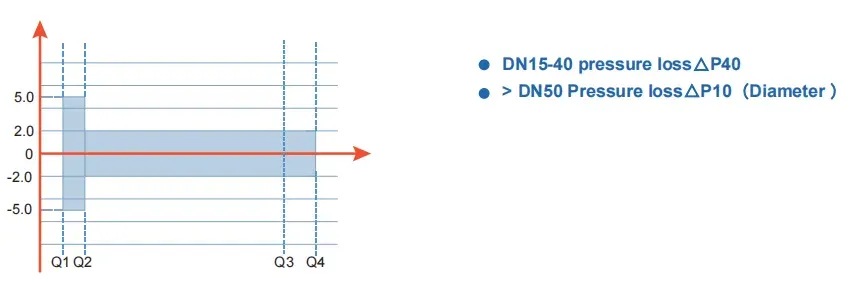

Pressure loss : DN15-DN40 △P40; ≥DN50△P10

Upstream flow field sensitivity level: U3

Downstream flow field sensitivity level: Do

Climate and mechanical environment safety grade: C

Electromagnetic compatibility level: E2

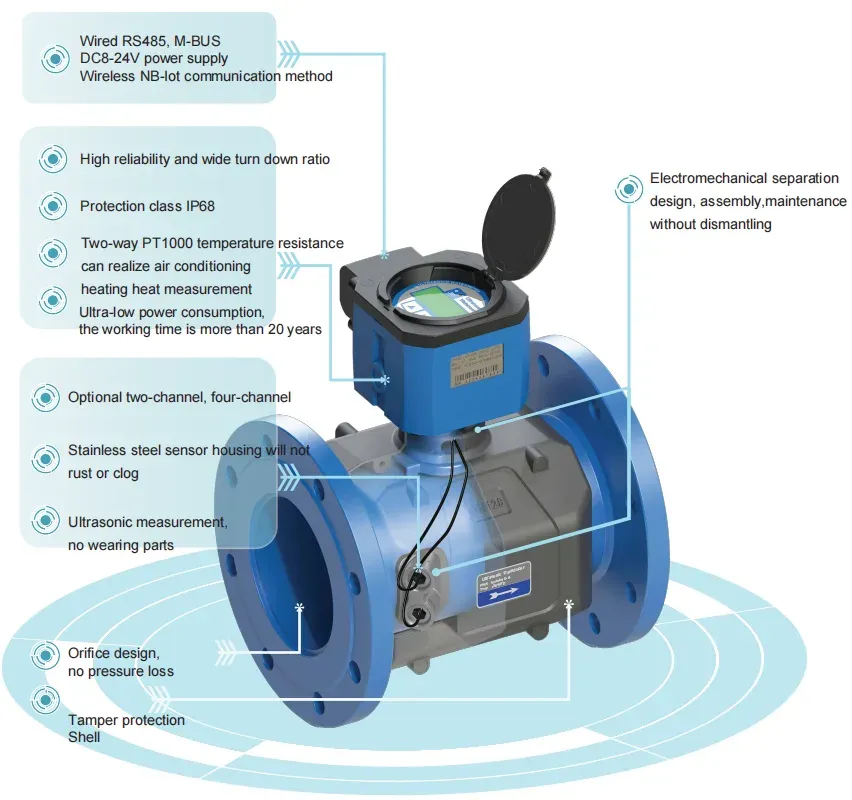

Communication interface: RS485/USART/ infrared, optional M-BUS; NB-lot wireless transmission

Output signal: OCT is optional

Power supply: 2 built-in lithium batteries (3.6V.8Ahy) External DC8-24V DC power supply

Protection level: IP68

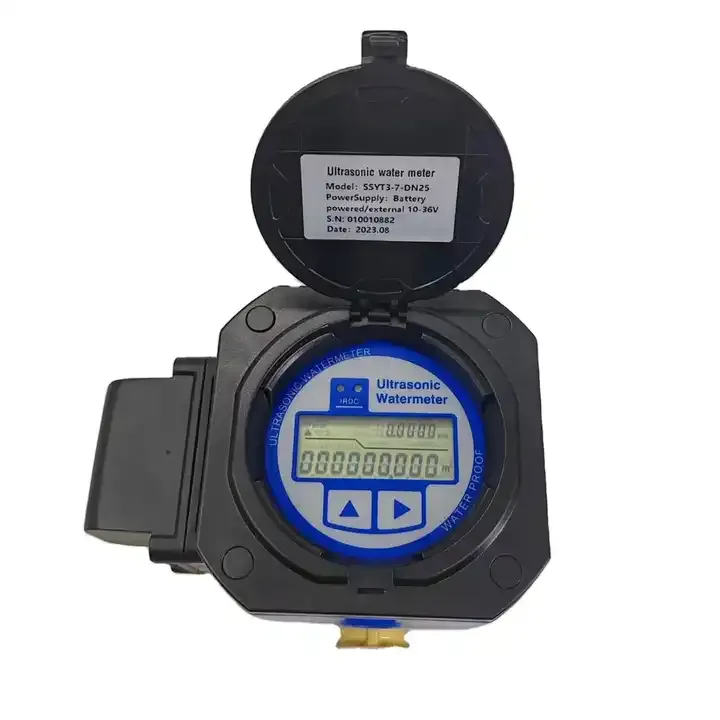

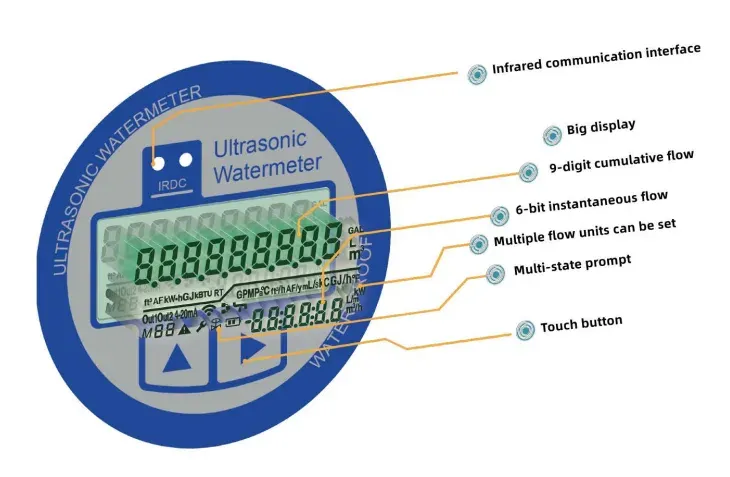

Local display: The two-line display includes 9-bit cumulant, 6-bit instantaneous flow, and various status prompts and units

Data storage: Use ferroelectric storage parameters to automatically record the accumulated traffic of the first 31 days of the previous 32 months

Current cycle measurement state: 1 time/second (can be set); Verification status: 4 times/second

Power consumption: standard stateus ≤ 30uA, can work continuously for more than 20 years

Material: Measuring tube body: carbon steel (stainless steel at sensor) ；Sensor: PEEK; Protective cover: nylon + Lang fiber
