Ultrasonic Water Meter

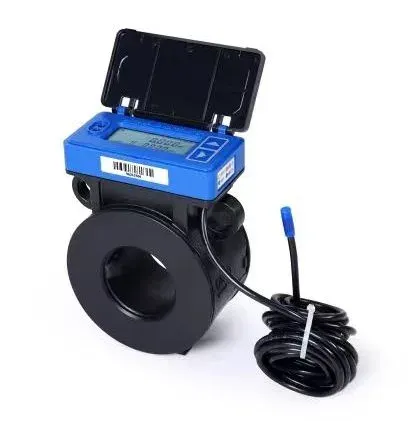

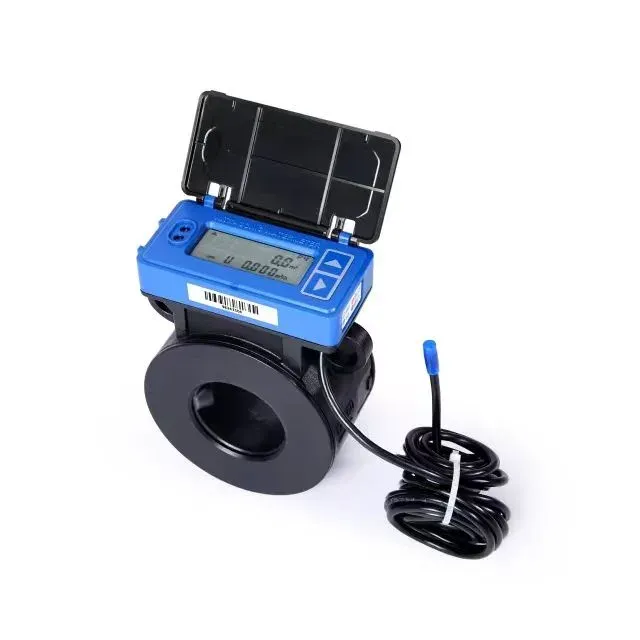

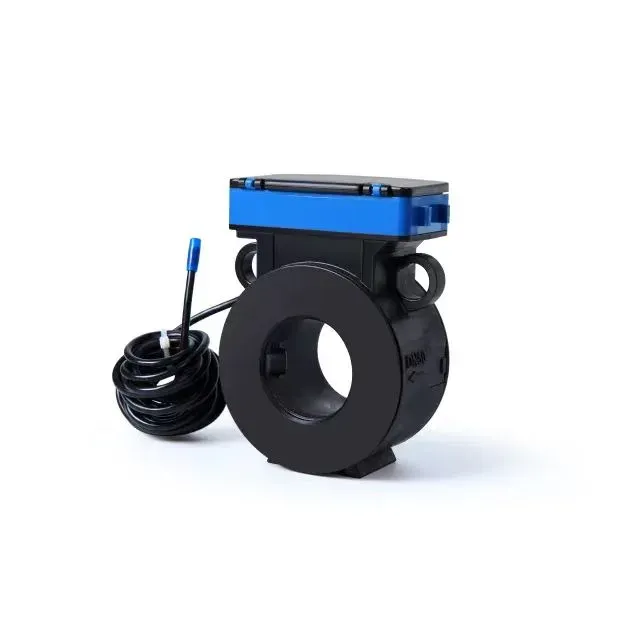

T3-1-2-K Sandwich-type Ultrasonic Water Meter
T3-1-2-K Sandwich-type Ultrasonic Water Meter. Our water meter is calibrated via constant-current method.
Specifications
- Product
- T3-1-2-K Sandwich-type Ultrasonic Water Meter

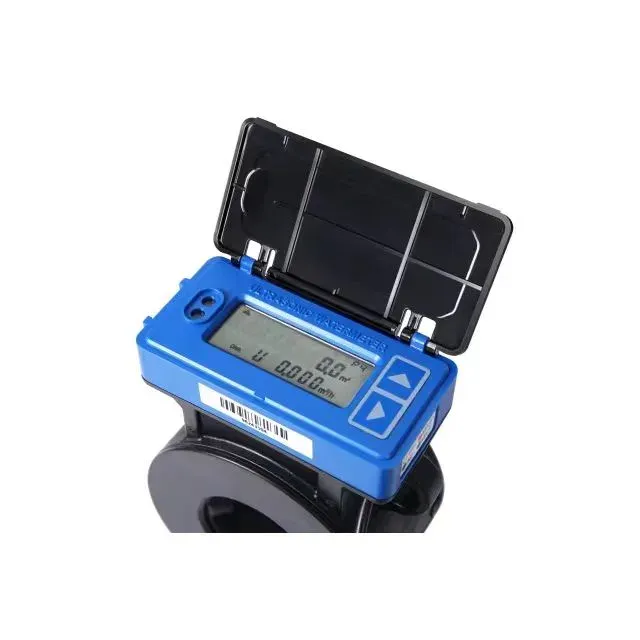

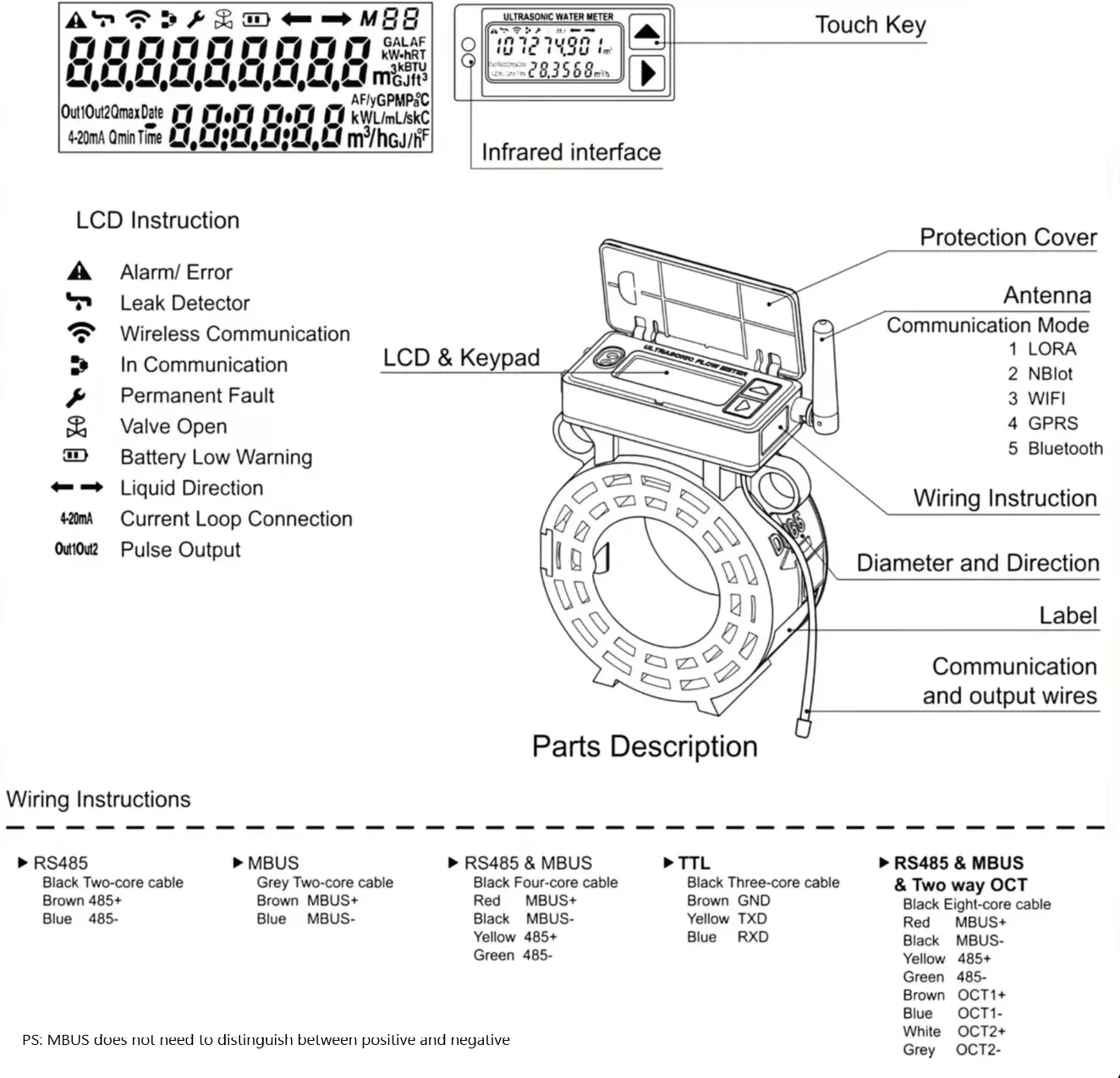

Operation Method Water meter is equipped with two touch keys " ▲ " and " ▶︎ ", slide from " ▲ " to "▶︎ " is " ▲▶︎" key to edit, slide from "▶︎" to "▲" is the key to quit. Formula: up click "▲"is up: down click "▶︎ "is down； Slide from up to down "▲▶︎" is modification : Slide from down to up "▶︎▲" is quit. Windows Display lnstructior Windows： No.Windows Functions Main Menu： M01：Display net cumulative and instantaneous flow M02：Display supply and return water temperature and temperature difference. M03：Calendar, display date and week on first line, display hour and minute on second line. M04：Display signal strength and error code on first line, display voltage and temperature on second line. M05：Calibration Menu M06：Batch Controller(lrrigation controller) M07：Display ESN and software version Water meter includes 5 kinds of menus: main menu, secondary menu 1, secondary menu 2. batch control menu and time-accumulated menu. You can enter any menus by the modification key "▲▶︎"
Example: On M01. press "▲▶︎" to access month cumulative flow On M03. press"▲▶︎"to access secondarv menu 1(M10~M19) On M19 of secondary menu 1 press "▲▶︎ " to access secondary menu 2 (M20-M2A). On M04. press"▲▶︎"to access day cumulative flow. On M05(start-stop calibration state). press "▲▶︎" to access constant-current method calibration state On M06, press "▲▶︎" to access batch control and time-accumulative menu (M30~M3C).
Our water meter is calibrated via constant-current method.
