Water meter parts

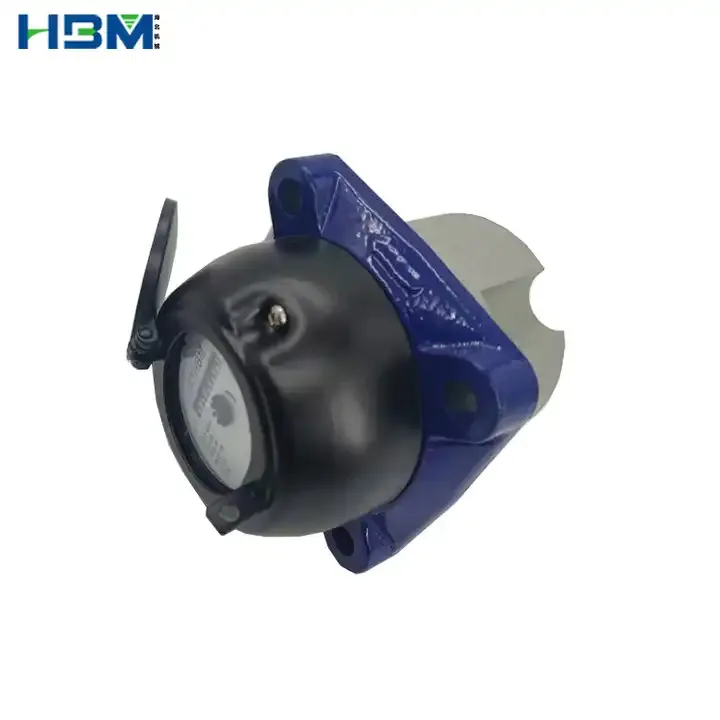

Large water meter parts
Large water meter parts. The meter boxes are designed to protect the water meter from unauthorized access and damage the meter boxes are suitable for use.
Specifications
- m3/h
- m3
- DN50
- 50 A 30 15 4.5 1.2 0.0002 999,999
- DN65
- 65 A 50 25 7.5 2.0 0.002 999,999
- DN80
- 80 A 80 40 12 3.2 0.002 999,999
- DN100
- 100 A 120 60 18 4.8 0.002 999,999
- DN125
- 125 A 200 100 30 8 0.002 999,999
- DN150
- 150 A 300 150 45 12 0.002 999,999
- DN200
- 200 A 500 250 75 20 0.002 999,999
- DN250
- 250 A 800 400 120 32 0.02 9,999,999
- DN300
- 300 A 1200 600 180 48 0.02 9,999,999
- φD1 Outside diameter
- φD2 Bolt circle diameter Connecting Bolts (n-M)
- LXXG-50
- 50 200 253 165 125 4-M16

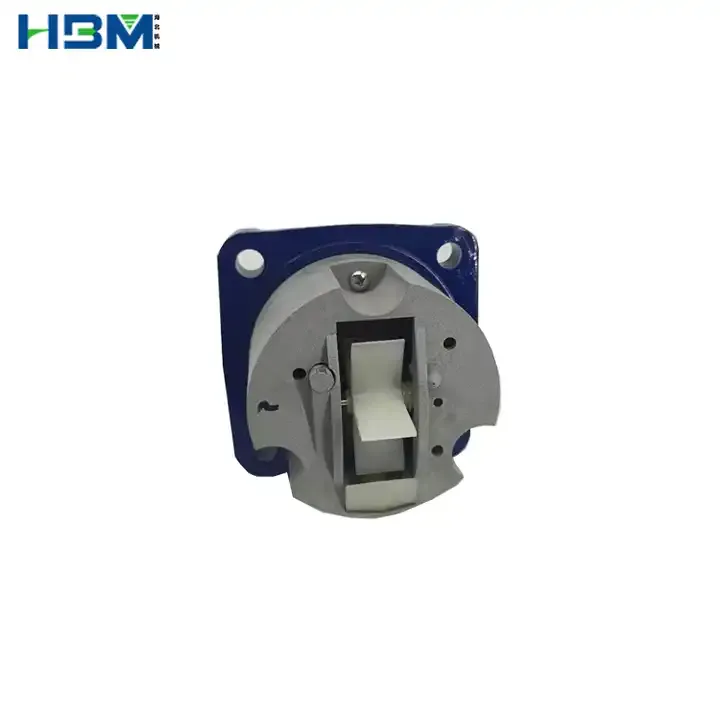

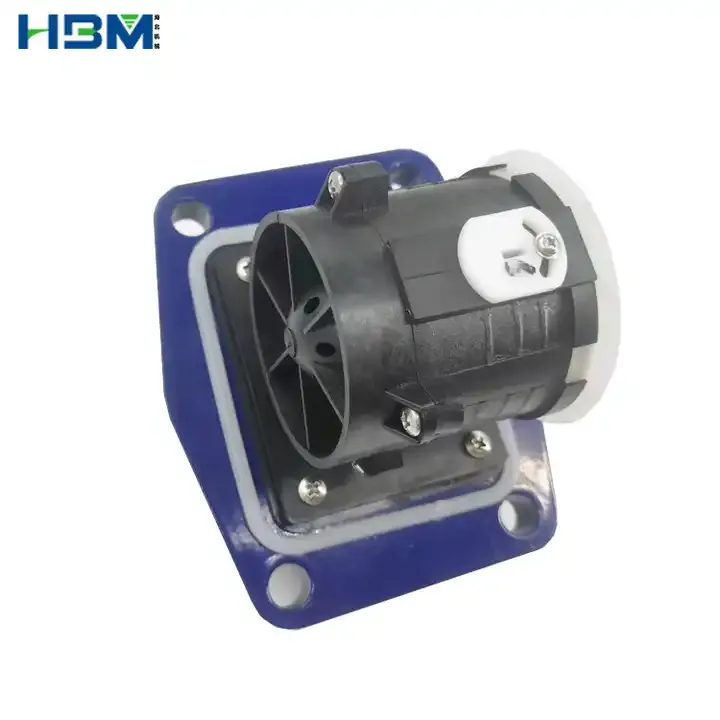

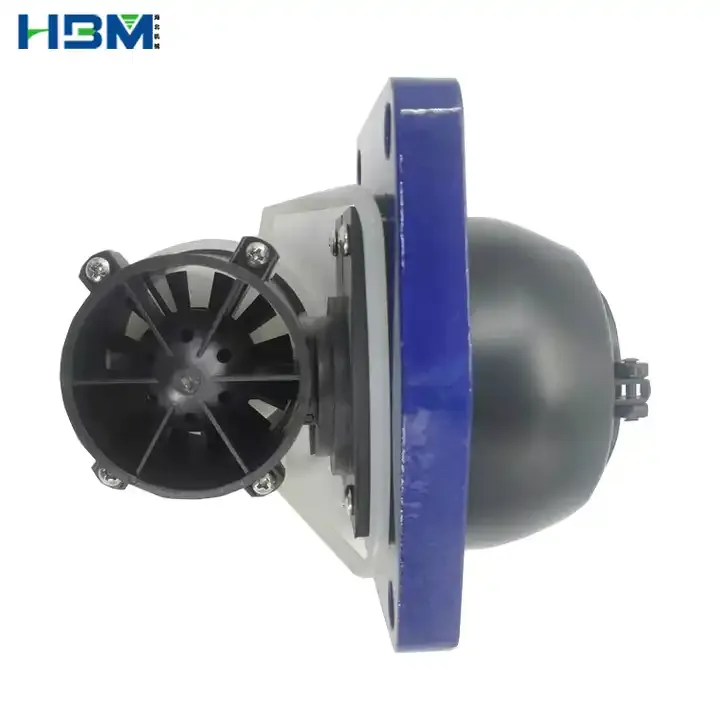

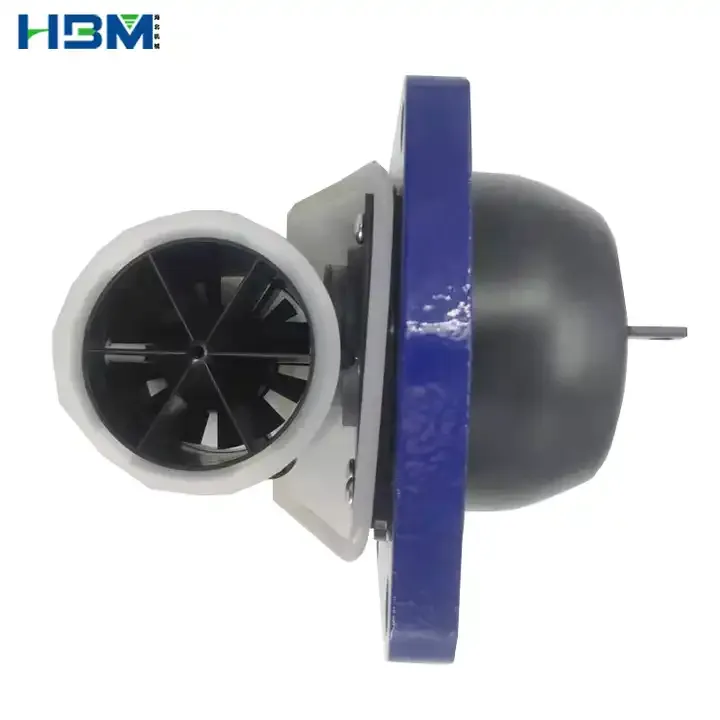

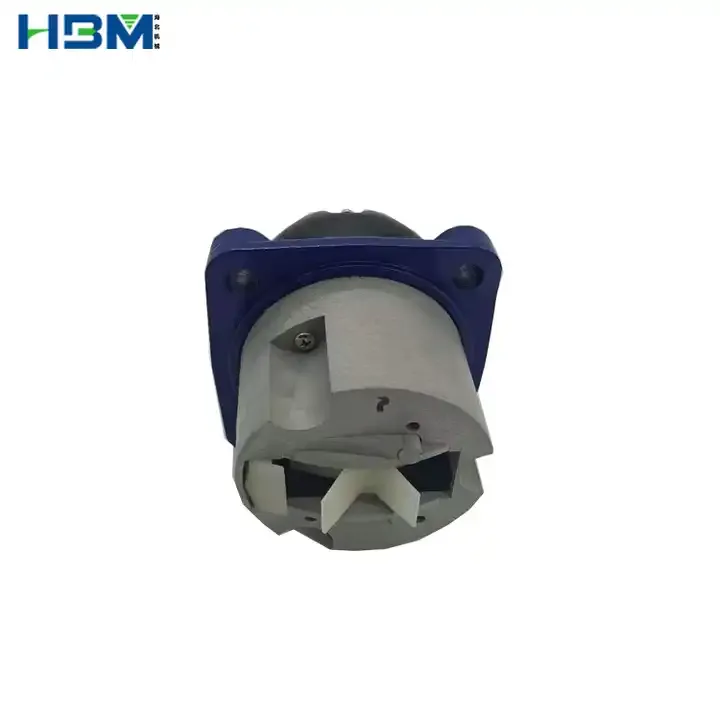

Description of multi jet and woltman turbine water meter mechanism
Meter cover: 15-600mm
Meter coupling: 15, 20, 25, 32, 40, 50mm (For multi jet & single jet & volumetric) Meter flange: 50mm-600mm
lead free meter fitting: 15mm-50mm
Technics: Forging, Casting. ductile Material: Brass, Plastic, cast iron, ductile iron
BSPT or NPT thread.

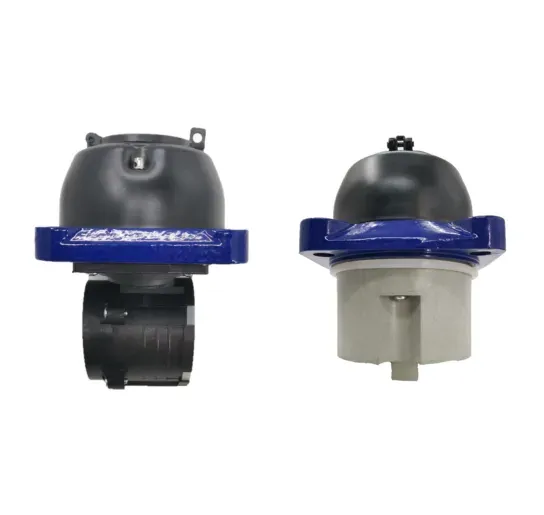

Meter mechanism: 15mm-600mm

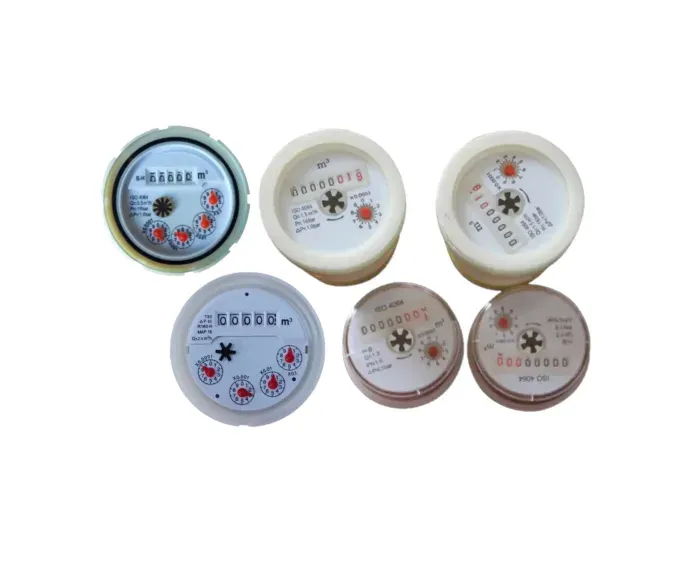

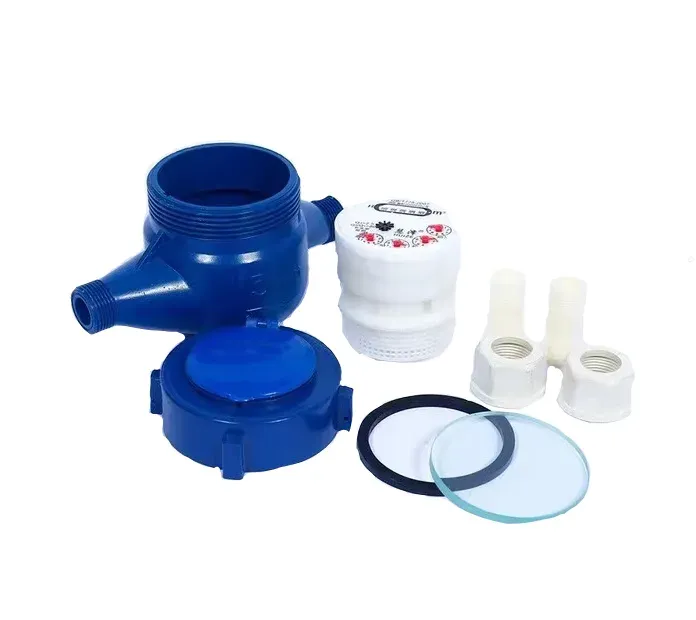

Meter box We produce all parts for multi-jet water meter, single-jet water meter, volumetric water meter, woltman water meter, prepaid water meter etc.
Specifications of water meter parts

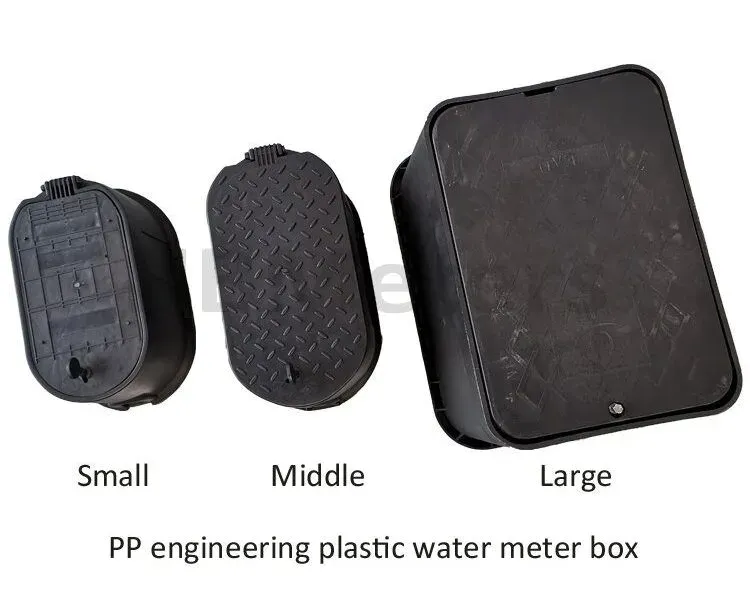

Plastic water meter box. good quality and cheap price.
Special locking mechanism , requiring a tailor-made key to open the lid
Unique coupings, conventient replacement for the meters inside the meter/ballcock assembly is lcoked where it passes through the meter box to prevent it from rotating during installation.
High quality ball cock shut off valves without rising headparts which can cause leaks.
Standards Compliance
ISO4064 Class B for horizontal installation
Application of water meter parts
The meter boxes are designed to protect the water meter from unauthorized access and damage the meter boxes are suitable for use in heave traffic situations working conditions
Water temperature: <40C
Irrigation Water Meter
Type
Size (mm)
Class
qs
Overload
Flow
qp
Permanent Flow
qt Transitional Flow
qmin Min. Flow
Min. Reading
Max. Reading
m3/h
m3
DN50
50
A
30
15
4.5
1.2
0.0002
999,999
DN65
65
A
50
25
7.5
2.0
0.002
999,999
DN80
80
A
80
40
12
3.2
0.002
999,999
DN100
100
A
120
60
18
4.8
0.002
999,999
DN125
125
A
200
100
30
8
0.002
999,999
DN150
150
A
300
150
45
12
0.002
999,999
DN200
200
A
500
250
75
20
0.002
999,999
DN250
250
A
800
400
120
32
0.02
9,999,999
DN300
300
A
1200
600
180
48
0.02
9,999,999
Type
Size
L
Length
H
Height
Connecting flange
φD1 Outside diameter
φD2
Bolt circle diameter
Connecting Bolts
(n-M)
mm
LXXG-50
50
200
253
165
125
4-M16
LXXG-65
65
200
268
185
145
4-M16
LXXG-80
80
225
284
200
160
8-M16
LXXG-100
100
250
295
220
180
8-M16
LXXG-125
125
250
310
250
210
8-M16
LXXG-150
150
300
339
285
240
8-M20
LXXG-200
200
350
382
340
295
8-M20(1.0MPa)
12-M20(1.6MPa)
LXXG-250
250
400
433
395
350
12-M20(1.0MPa)
450
438
405
355
12-M24(1.6MPa)
LXXG-300
300
450
483
445
400
12-M20(1.0MPa)
500
488
460
410
12-M24(1.6MPa)
Industrial water meter
Q3/Q1 Q4
Overload
Flow Q3
Permanent
Flow Q2
Transitional
Flow Q1
Minimum
Flow Minimum
Reading Maximum
Reading DN m³/h m³ 50 A 50 31.3 25 0.8 0.5 0.0002 999,999 B 80 50 40 0.5 0.32 65 A 50 50 40 1.28 0.8 0.0002 999,999 B 80 0.8 0.5 80 A 50 78.8 63 2 1.26 0.002 999,999 B 80 1.3 0.79 100 A 50 125 100 3.2 2 0.002 999,999 B 80 2 1.25 125 A 50 200 160 5.12 3.2 0.002 999,999 B 80 3.2 2 150 A 50 312.5 250 8 5 0.002 999,999 B 80 5 3.1 200 A 50 500 400 12.8 8 0.002 999,999 B 80 8 5 250 A 25 787.5 630 40.32 25.2 0.002 9,999,999 B 50 20.16 12.6 300 A 25 1250 1000 64 40 0.02 9,999,999 B 50 32 20 DIMENSIONS Type Size L
Length H
Height Connecting flange mm D1
Outside
diameter D2
Bolt circle
diameter Conneting
Bolts
(n-M) LXLC-50 50 200 261 165 125 4-M16 LXLC-65 65 200 271 185 145 4-M16 LXLC-80 80 225 279 200 160 8-M16 LXLC-100 100 250 289 220 180 8-M16 LXLC-125 125 250 299 250 210 8-M16 LXLC-150 150 300 319 285 240 8-M20 LXLC-200 200 350 346 340 295 8-M20(1.0MPa) 12-M20(1.6MPa) LXLC-250 250 450 450 395(1.0MPa) 350(1.0MPa) 12-M20(1.0MPa) 405(1.6MPa) 355(1.6MPa) 12-M24(1.6MPa) LXLC-300 300 500 478 445(1.0MPa) 400(1.0MPa) 12-M20(1.0MPa) 460(1.6MPa) 410(1.6MPa) 12-M24(1.6MPa)
Specifications
Type | Size (mm) | Class | qs
Overload
Flow | qp
Permanent Flow | qt Transitional Flow | qmin Min. Flow | Min. Reading | Max. Reading
m3/h | m3
DN50 | 50 | A | 30 | 15 | 4.5 | 1.2 | 0.0002 | 999,999
DN65 | 65 | A | 50 | 25 | 7.5 | 2.0 | 0.002 | 999,999
DN80 | 80 | A | 80 | 40 | 12 | 3.2 | 0.002 | 999,999
DN100 | 100 | A | 120 | 60 | 18 | 4.8 | 0.002 | 999,999
DN125 | 125 | A | 200 | 100 | 30 | 8 | 0.002 | 999,999
DN150 | 150 | A | 300 | 150 | 45 | 12 | 0.002 | 999,999
DN200 | 200 | A | 500 | 250 | 75 | 20 | 0.002 | 999,999
DN250 | 250 | A | 800 | 400 | 120 | 32 | 0.02 | 9,999,999
DN300 | 300 | A | 1200 | 600 | 180 | 48 | 0.02 | 9,999,999
Specifications
Type | Size | L
Length | H
Height | Connecting flange
φD1 Outside diameter | φD2
Bolt circle diameter | Connecting Bolts
(n-M)
mm
LXXG-50 | 50 | 200 | 253 | 165 | 125 | 4-M16
LXXG-65 | 65 | 200 | 268 | 185 | 145 | 4-M16
LXXG-80 | 80 | 225 | 284 | 200 | 160 | 8-M16
LXXG-100 | 100 | 250 | 295 | 220 | 180 | 8-M16
LXXG-125 | 125 | 250 | 310 | 250 | 210 | 8-M16
LXXG-150 | 150 | 300 | 339 | 285 | 240 | 8-M20
LXXG-200 | 200 | 350 | 382 | 340 | 295 | 8-M20(1.0MPa)
12-M20(1.6MPa)
LXXG-250 | 250 | 400 | 433 | 395 | 350 | 12-M20(1.0MPa)
450 | 438 | 405 | 355 | 12-M24(1.6MPa)
LXXG-300 | 300 | 450 | 483 | 445 | 400 | 12-M20(1.0MPa)
500 | 488 | 460 | 410 | 12-M24(1.6MPa)
Specifications
Size | Class | R=
Q3/Q1 | Q4
Overload
Flow | Q3
Permanent
Flow | Q2
Transitional
Flow | Q1
Minimum
Flow | Minimum
Reading | Maximum
Reading
DN | m³/h | m³
50 | A | 50 | 31.3 | 25 | 0.8 | 0.5 | 0.0002 | 999,999
B | 80 | 50 | 40 | 0.5 | 0.32
65 | A | 50 | 50 | 40 | 1.28 | 0.8 | 0.0002 | 999,999
B | 80 | 0.8 | 0.5
80 | A | 50 | 78.8 | 63 | 2 | 1.26 | 0.002 | 999,999
B | 80 | 1.3 | 0.79
100 | A | 50 | 125 | 100 | 3.2 | 2 | 0.002 | 999,999
B | 80 | 2 | 1.25
125 | A | 50 | 200 | 160 | 5.12 | 3.2 | 0.002 | 999,999
B | 80 | 3.2 | 2
150 | A | 50 | 312.5 | 250 | 8 | 5 | 0.002 | 999,999
B | 80 | 5 | 3.1
200 | A | 50 | 500 | 400 | 12.8 | 8 | 0.002 | 999,999
B | 80 | 8 | 5
250 | A | 25 | 787.5 | 630 | 40.32 | 25.2 | 0.002 | 9,999,999
B | 50 | 20.16 | 12.6
300 | A | 25 | 1250 | 1000 | 64 | 40 | 0.02 | 9,999,999
B | 50 | 32 | 20
