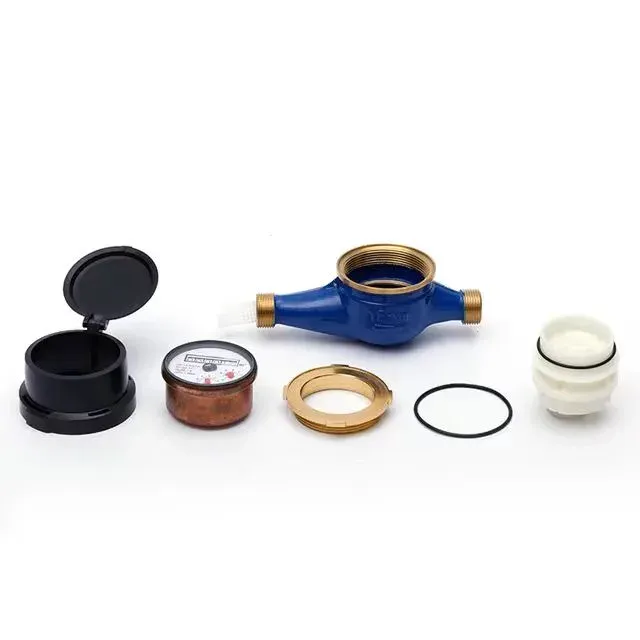

Water meter parts
Small water meter parts

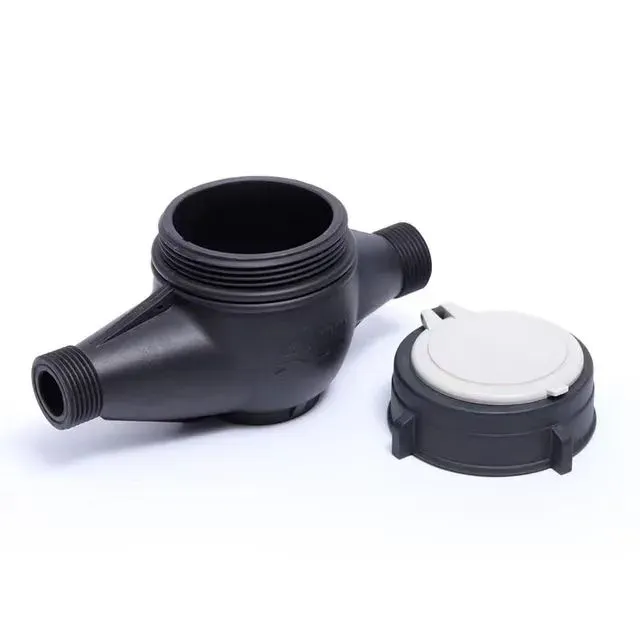

Small water meter parts. The meter should be installed in horizontal position with the direction of the flow as indicated by the arrow cast in the meter body.
Specifications
- DN
- mm 15 20 20 20 25 25
- inch
- 1/2″ 3/4″ 3/4″ 3/4″ 1″ 1″
- L2 (without connect coupling)
- mm 165/170 190 190 220 175 175/260
- L1 (with connect coupling)
- mm 245/250 286 286 316 293 293/378
- D1
- inch 3/4″ 1″ 1″ 1″ 1 1/4″ 1 1/4″
- D2
- inch 1/2″ 3/4″ 3/4″ 3/4″ 1″ 1″
- B
- mm 95 95 95 95 95 95
- H1 kx
- mm 120 120 120 120 120 120
- H1 mx
- mm 125 125 125 125 125 125
- H2
- mm ~35 ~25 ~25 ~35 ~35 ~35
- H3
- mm 15 15 15 15 15 15
- Size
- 15mm - 50mm (1/2 inch ~ 2 inch)
Our main products are Medium and High grade water meter for Export, include hot & cold water meter, small and large caliber removable water meter (Woltman type, irrigation & sewage type ) and smart water meter series，and water meter parts.
Meter cover: 15-600mm

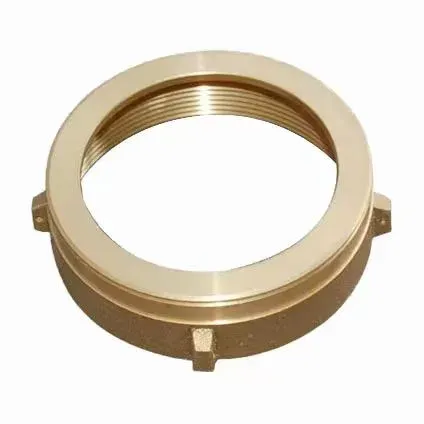

Meter coupling: 15, 20, 25, 32, 40, 50mm (For multi jet & single jet & volumetric) Meter flange: 50mm-600mm
lead free meter fitting: 15mm-50mm

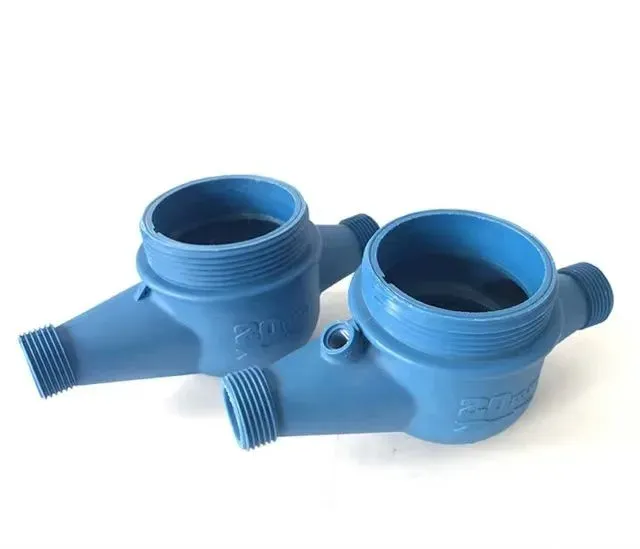

Technics: Forging, Casting. ductile Material: Brass, Plastic, cast iron, ductile iron
BSPT or NPT thread.
Meter mechanism: 15mm-600mm
Meter box We produce all parts for multi-jet water meter, single-jet water meter, volumetric water meter, woltman water meter, prepaid water meter etc.
Description

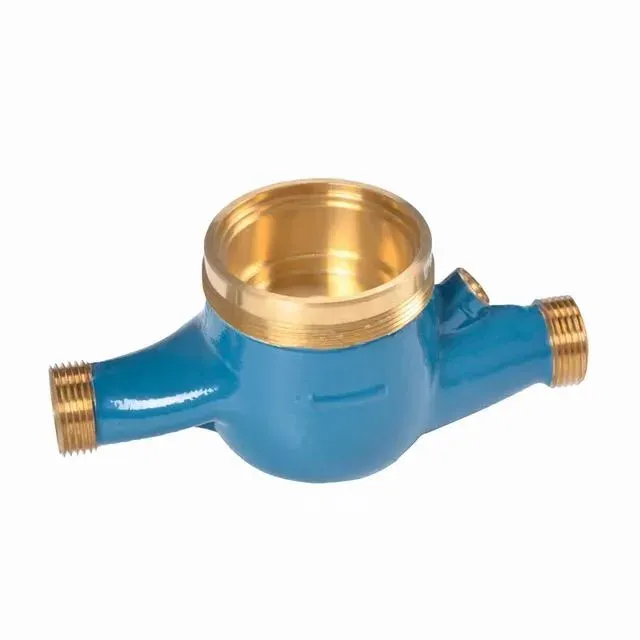

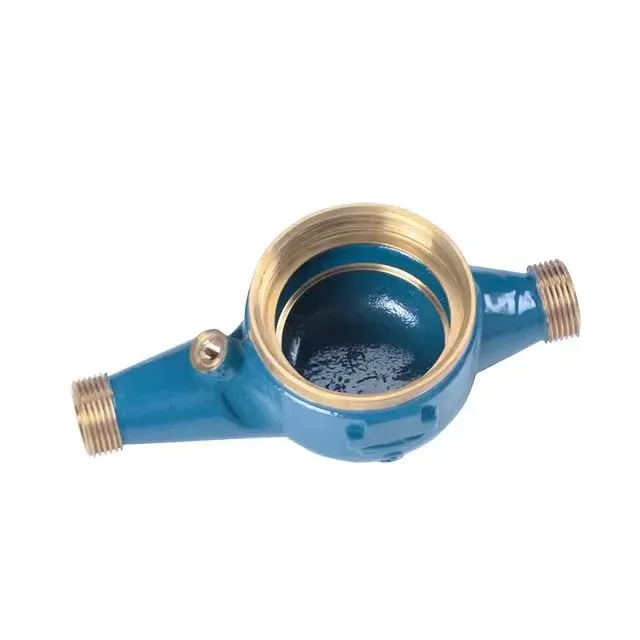

1. Product name: Brass Water Meter Body / Brass Body of Water Meter / Brass Water Meter Body. 2. Material: Brass (Cu≥58% Zn≤39% Pb≤3%) / cast iron/plastic 3. Manufacturing technique: Gravity casting / Sand casting. 4. Analytical equipment: Direct-reading spectrometer. 5. Standard: According to customer's drawings (OEM and design). 6. Size: 15-50mm for multi jet, 15-25mm for the single jet.
Mechanism for Dry type multi jet water meters from DN15-50 Class B or R80,R100,R125,R160
Multi-jet Dry Type Vane Wheel Water Meter It is a multi-jet super dry water meter for residential application in sizes 15mm-20mm for cold and hot meter.
Features Compact design with smaller meter body. Brass body is only 570g weight for save cost 45° inclined register, hot wire tamper proof. Magnetic drive mechanism with anti-magnetic protection. External regulation device
Optional Features Several lengths and connections available on request Non return Valve Reed switch option
Working Conditions Water temperature: ≤50ºC for cold water meter, ≤90ºC for hot water meter Water pressure: ≤1MPa or 1.6MPa optional (10bar or 16bar option)
Accessories Each meter has one set coupling optional: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
Installation Requirements The meter should be installed in horizontal position with the direction of the flow as indicated by the arrow cast in the meter body with the register face upwards. Pipeline must be flushed before installation. The meter should be constantly full of water during operation.
Maximum Permissible Error In the lower zone from Qmin inclusive up to but excluding Qt is ±5%. In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%.
Type: 8 rollers dial /5 rollers dial
Size: DN15-DN600
Material: Primary plastic
Brand: OEM
Application: Water meter
Supply Ability: 100000 Piece/Pieces per Month water meter mechanism
Packaging Details: Export Class Carton/ wooden case/box
Multi-jet Vane Wheel Water Meter
Removable Element Woltman Water Meter
Rotary Piston Liquid Sealed Class C Water Meter
Single-jet Vane Wheel Water Meter
Prepaid Water Meter
Application: Measuring the volume of potable cold water passing through the pipeline
Features: Register sealed in a vacuum, anti-condensation atomization proof, enables clear reading; detachable, easy maintenance
Standards: ISO4064 class B
Packaging and Transport:LXSG type - Multijet LXDG type - Single jet
Each meter is packed in a small box. Outer packing is a carton.
LXLC type - Industrial flange LXXG type - Agistrar Irrigation & Sewage water
Each meter is packed in a carton / wooden box.
Specifications
DN | mm | 15 | 20 | 20 | 20 | 25 | 25
inch | 1/2″ | 3/4″ | 3/4″ | 3/4″ | 1″ | 1″
L2 (without connect coupling) | mm | 165/170 | 190 | 190 | 220 | 175 | 175/260
L1 (with connect coupling) | mm | 245/250 | 286 | 286 | 316 | 293 | 293/378
D1 | inch | 3/4″ | 1″ | 1″ | 1″ | 1 1/4″ | 1 1/4″
D2 | inch | 1/2″ | 3/4″ | 3/4″ | 3/4″ | 1″ | 1″
B | mm | 95 | 95 | 95 | 95 | 95 | 95
H1 kx | mm | 120 | 120 | 120 | 120 | 120 | 120
H1 mx | mm | 125 | 125 | 125 | 125 | 125 | 125
H2 | mm | ~35 | ~25 | ~25 | ~35 | ~35 | ~35
H3 | mm | 15 | 15 | 15 | 15 | 15 | 15
Specifications
Size | 15mm - 50mm (1/2 inch ~ 2 inch)
Material | Brass & Plastic & Iron
Type | Dry-dial, Semi-dry, Wet-dial
Standard | Class B, Class C
Connection | Screw / Thread end
Specifications
Size | 40mm - 600mm (1-1/2 inch ~ 24 inch)
Material | Cast Iron & Ductile Iron & Stainless Steel
Connection | Flange end
Standard | Class A (irrigation type), Class B (industry type), Class C (Vertical Helix)
Applications | Industrial & Agriculture
