Water meter parts

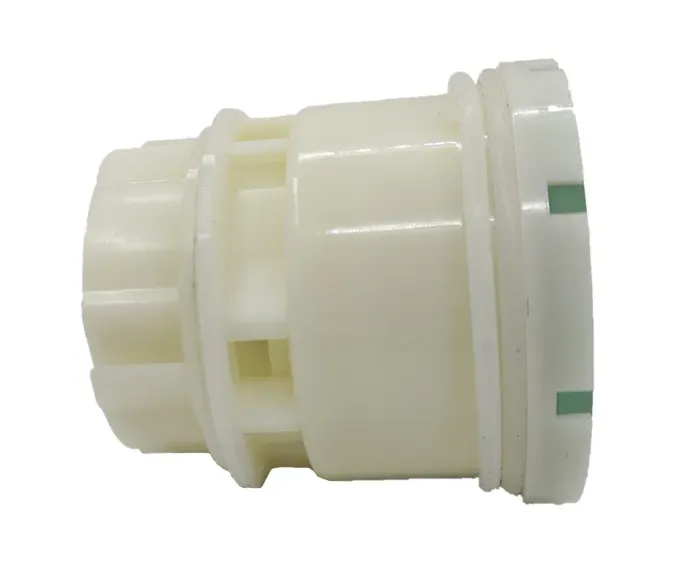

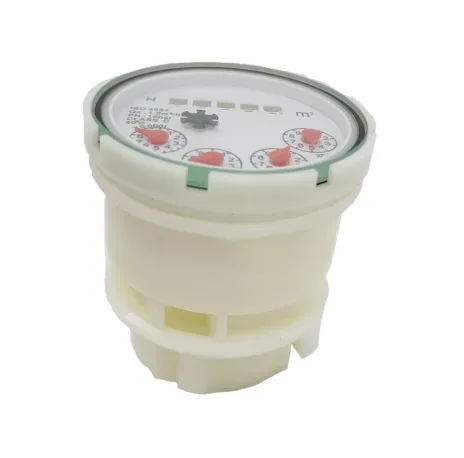

Plastic Class C dry type water meter mechanism

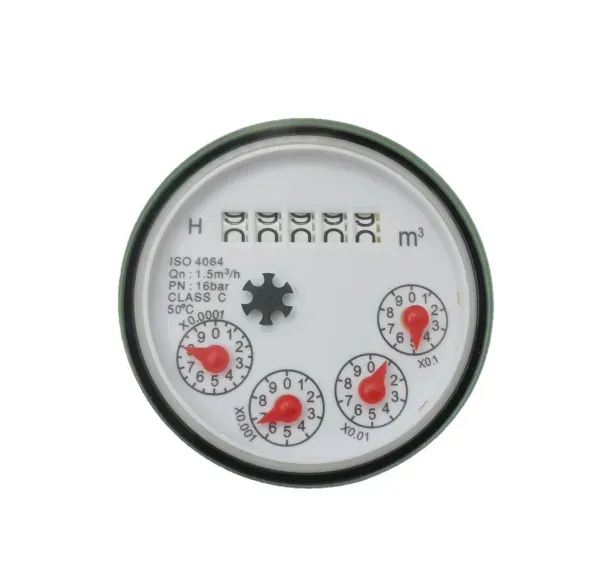

Plastic Class C dry type water meter mechanism. Dry type Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term.
Specifications
- Product
- Plastic Class C dry type water meter mechanism
Features:
1.Dry type Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service(Also available wet type mechanism)
2 Multi-jet
3.Selected high quality materials for steady & reliable characteristic
4.Measuring accuracy conform to ISO 4064 class C Standard.
Working Condition:
Water temperature:≤30 Working pressure:≤1Mpa
Application:
Measuring the volume of potable water passing throught the pipeline.
Features:
1.Dry type Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
2 Multi-jet
3.Selected high quality materials for steady & reliable characteristic
4.Measuring accuracy conform to ISO 4064 class C Standard.
Working Condition:
Water temperature:≤30 Working pressure:≤1Mpa

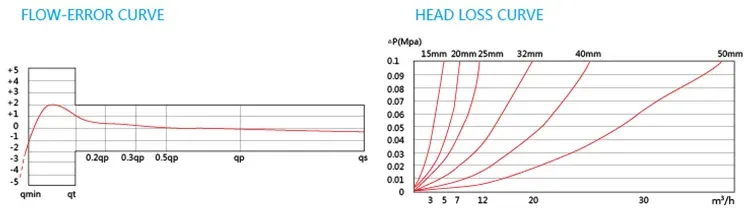

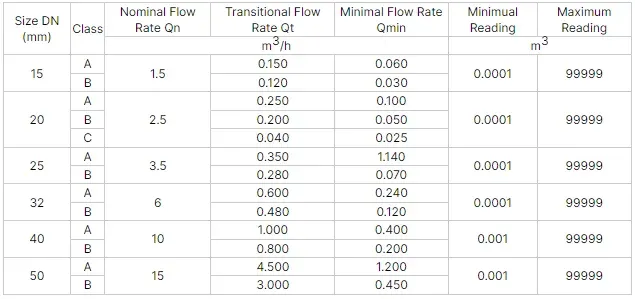

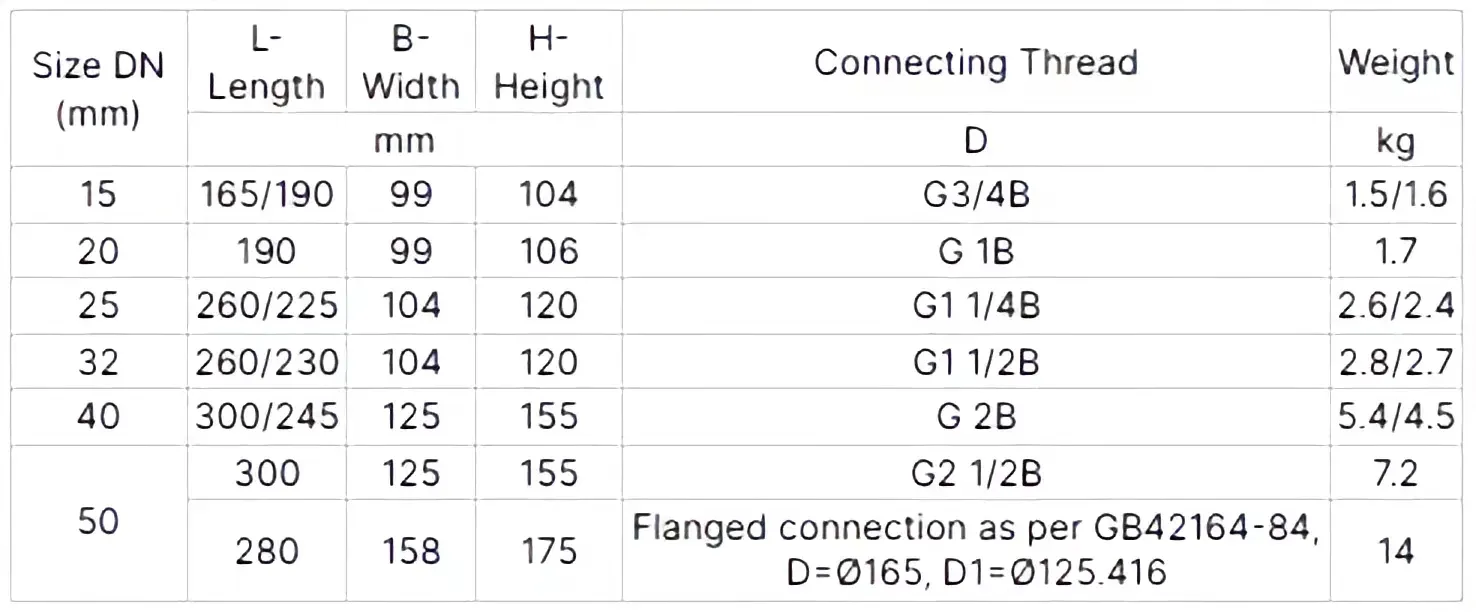

Technical Data:
