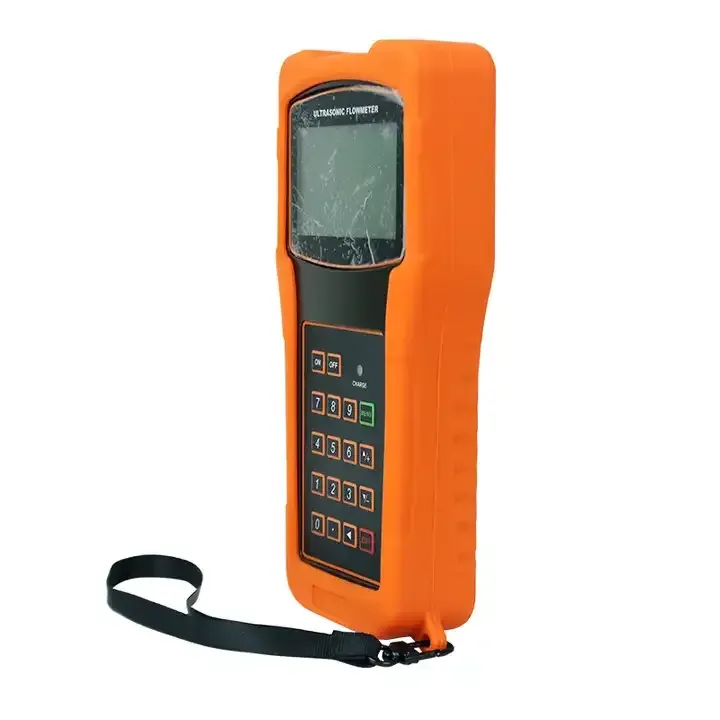

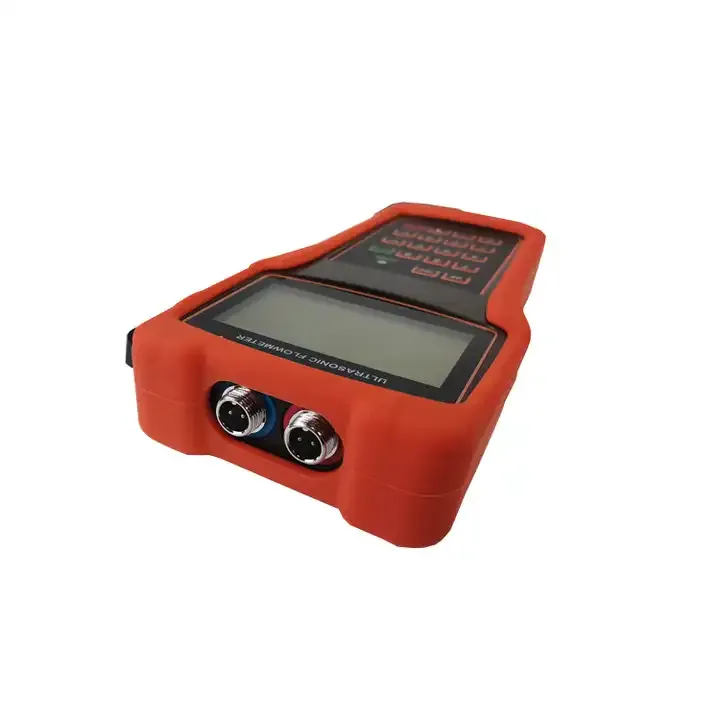

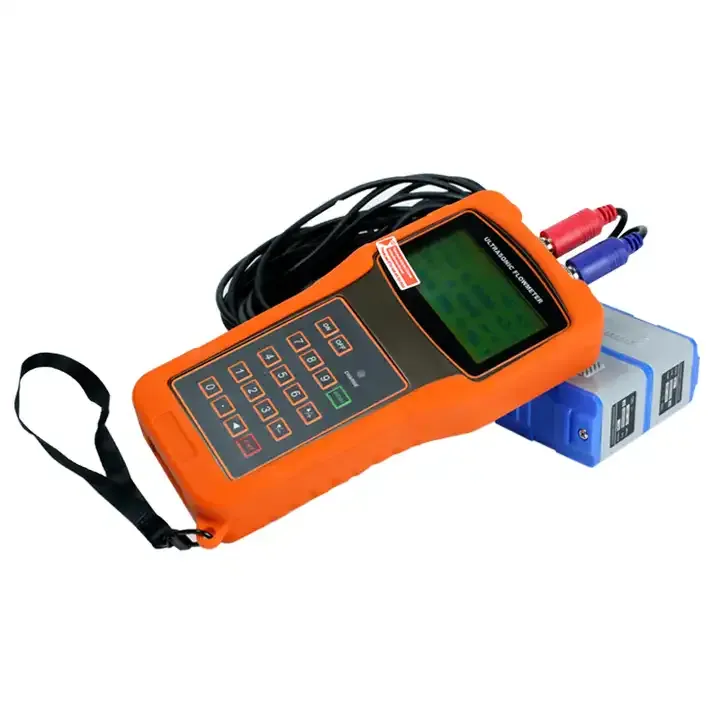

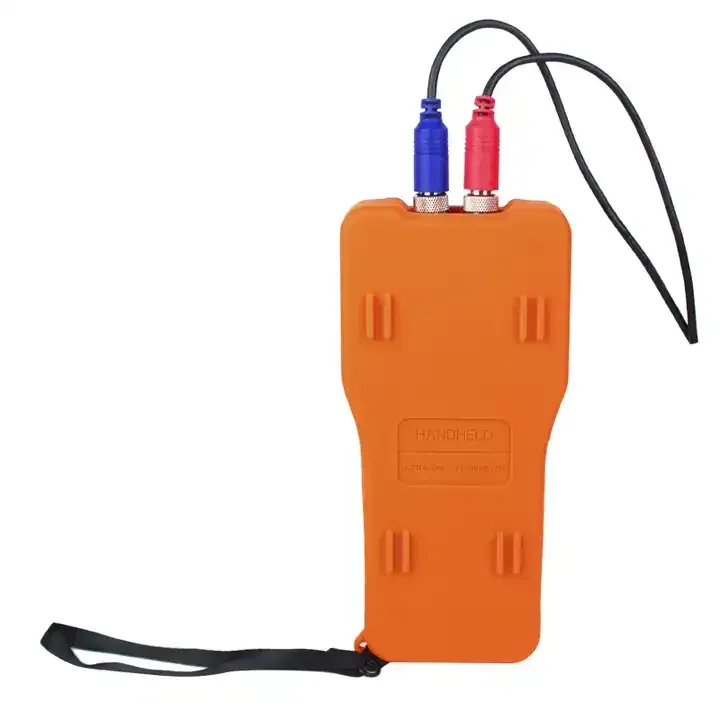

DN25-6000mm Handheld Ultrasonic Flowmeter
DN25-6000mm Handheld Ultrasonic Flowmeter. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals.
Specifications
- Converto
- Principle Transit-time ultrasonic flowmeter
- Accuracy
- ±1%
- Display
- 4×16 character LCD with backlight, support the language of Chinese, English and Italy

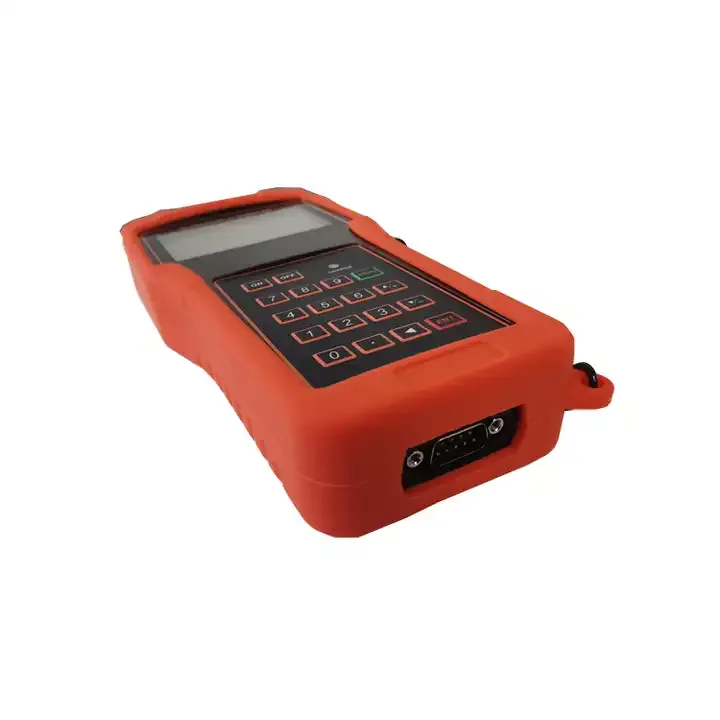

- Data Interface
- Insulate Rs232 serial interface, upgrade the flowmeter software by computer
- Pipe Installation Condition
- Pipe Material Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
- Pipe Diameter
- 25-6000mm
- Straight Pipe
- Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump
- Measuring Medium
- Type of Liquid Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil (crude oil, lubricati
- Temperature
- -30~160℃
- Turbidity
- No more than 10000ppm and less bubble
- Flowrate
- 0~±10m/s
- Working Environment
- Temperature Convertor：-20~60℃；Flow Transducer：-30~160℃
High Accuracy measuring
Accurac y : ±1 % , linearit y : 0.5 % , repeatabil it y : 0.2 %
Wide measuring range
Several types transducer for selection, measuring pipe size from DN 15 mm to DN 6000 mm
Large capacity battery
Built-in rechargeable Ni-MH battery, provide over 12 hours of continuous operation

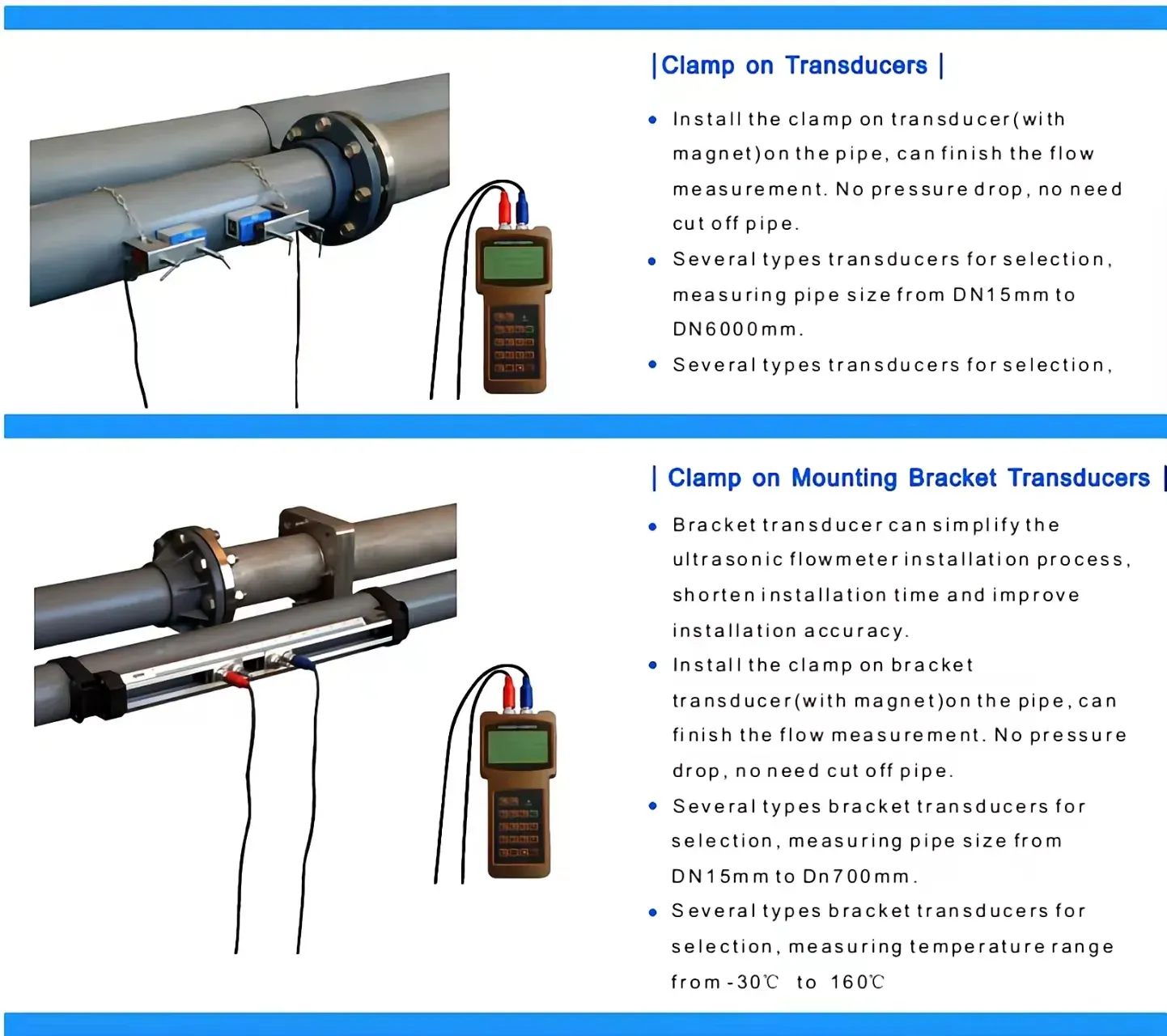

Non- intrusive measur ing
Non- intrusive, clamp-on transducer, no pressure drop, no pipe disturbance
Support Multiple Language Menu
C hinese, English, Italian and other languages can be customized
Large LCD di splay
Display instantaneous flow, accumulated flow (positive, negative and net ) , velocit y, working status etc .
Built-in data logger
Built- in 24K data logger, store over 2000 lines measuring data
Specifications
Items Performance & Parameter
Converto | Principle | Transit-time ultrasonic flowmeter
Accuracy | ±1%
Display | 4×16 character LCD with backlight, support the language of Chinese, English and Italy
Data Interface | Insulate Rs232 serial interface, upgrade the flowmeter software by computer
Pipe Installation Condition | Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
Pipe Diameter | 25-6000mm
Straight Pipe | Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump
Measuring Medium | Type of Liquid | Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage
with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, etc.); Plant
effluent; Beverage; Ultra-pure liquids, etc
Temperature | -30~160℃
Turbidity | No more than 10000ppm and less bubble
Flowrate | 0~±10m/s
Working Environment | Temperature | Convertor：-20~60℃；Flow Transducer：-30~160℃
Humidity | Convertor: 85%RH；Flow Transducer: Ip67
Power Supply | 3 AAA built-in Ni-MH batteries 1.2V(for over 12 hours of operation). 90V-260V AC adapter
Power Consumption | 1.5W
Case Material | ABS
Dimension | 200*93*32MM(Convertor)
Specifications
Items Performance & Parameter
Converto | Principle | Transit-time ultrasonic flowmeter
Accuracy | ±1%
Display | 4×16 character LCD with backlight, support the language of Chinese, English and Italy
Data Interface | Insulate Rs232 serial interface, upgrade the flowmeter software by computer
Pipe Installation Condition | Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
Pipe Diameter | 25-6000mm
Straight Pipe | Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump
Measuring Medium | Type of Liquid | Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage
with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, etc.); Plant
effluent; Beverage; Ultra-pure liquids, etc
Temperature | -30~160℃
Turbidity | No more than 10000ppm and less bubble
Flowrate | 0~±10m/s
Working Environment | Temperature | Convertor：-20~60℃；Flow Transducer：-30~160℃
Humidity | Convertor: 85%RH；Flow Transducer: Ip67
Power Supply | 3 AAA built-in Ni-MH batteries 1.2V(for over 12 hours of operation). 90V-260V AC adapter
Power Consumption | 1.5W
Case Material | ABS
Dimension | 200*93*32MM(Convertor)
