Flow Meter

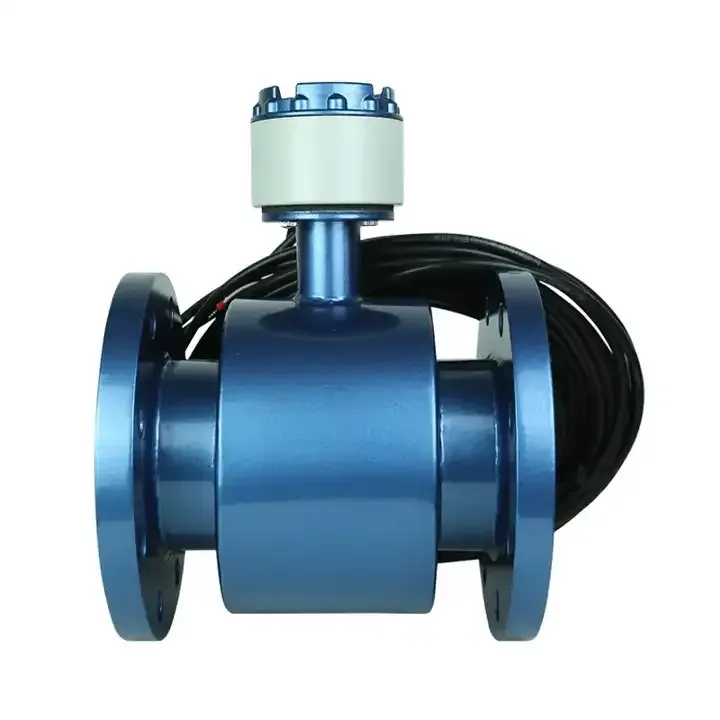

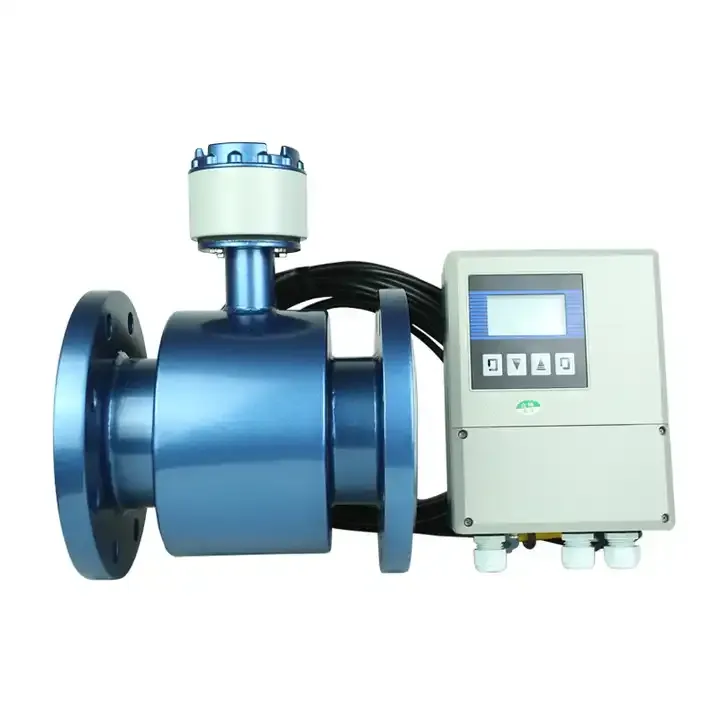

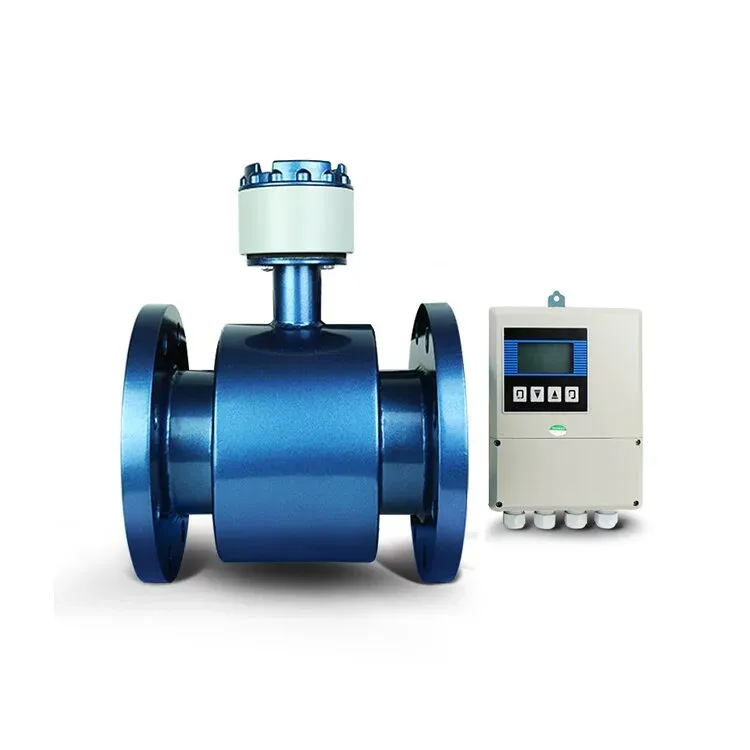

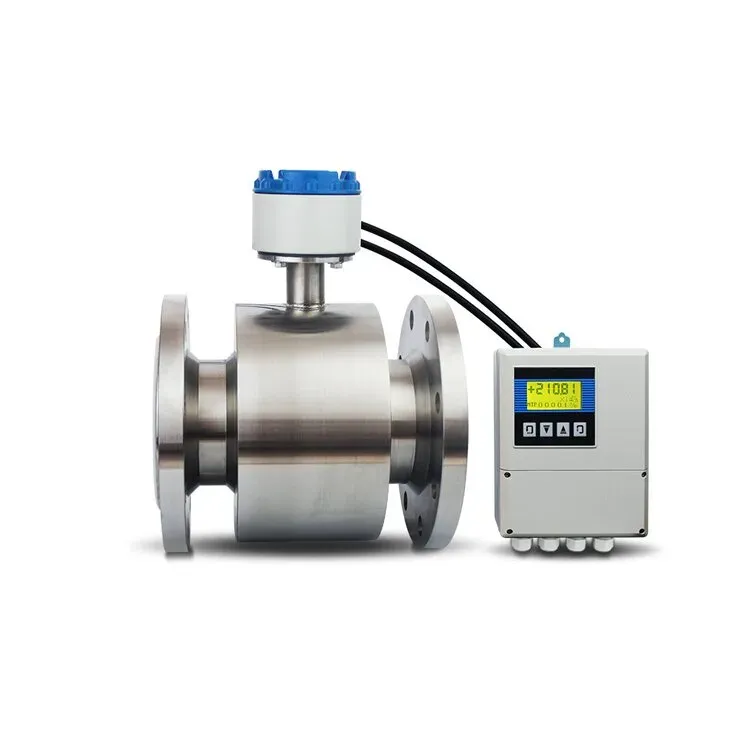

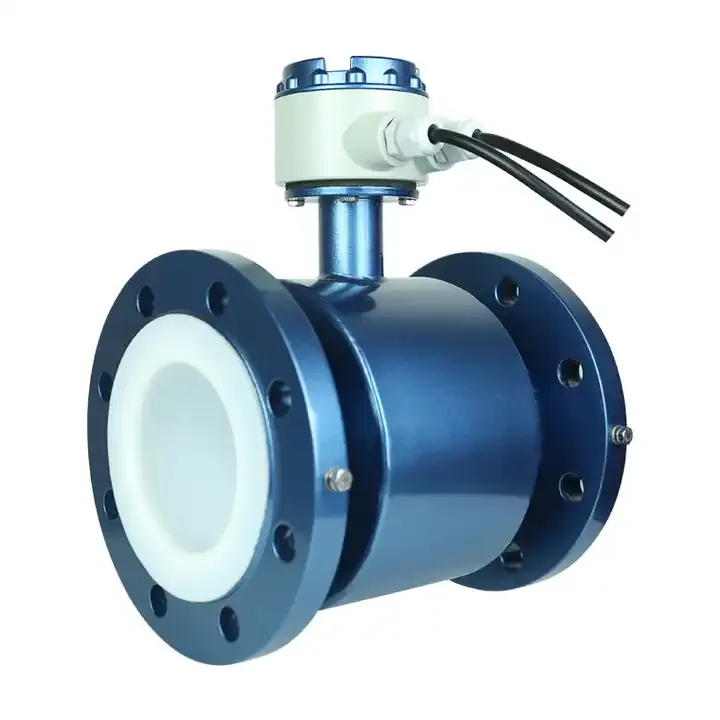

Split type electromagnetic flowmeter
Split type electromagnetic flowmeter. For example, code 150 indicates a caliber of 15 mm; code 151 indicates a diameter of 150 mm.
Specifications
- Nominal diameter
- DN15~DN2000
- Accuracy
- ±0.2%,±0.3%,±0.5%
- Measurement range (flow rate)
- 0.01m/s~15m/s
- Conductivity of medium
- more than 5μS/cm
- Nominal pressure
- 0.6MPa,1.0MPa,4.0MPa
- Protection grade
- IP65,IP67,IP68
- Electrode material
- Stainless steel 316L,Hastelloy B, Hastelloy C, Titanium alloy, Tantalum alloy, Platinum-iridium alloy, Stainless steel-coated tungsten carbide and other special material .
- Lining material
- Neoprene,Polyurethane rubber,natural rubber, nitrile rubber, Teflon(PFA),Polytetrafluoroethylene(PTFE), fluorinated ethylene propylene (FEP OR F46), ceramics.
- Connection
- Flange connection [GB/T9119-2010 standard]
- Ambient temperature
- -10℃~50℃
- Power supply
- AC220V/DC24V/DC3.6V
- Signal output
- Analog 4mA-20mA, 0Hz~ 5 KHz frequency, two alarm outputs: high limit alarm and low limit alarm
Electromagnetic flow meters are flowmeters that measure flow according to Faraday's law of electromagnetic induction. Electromagnetic flowmeters have the advantage of minimal pressure loss and a large range of measurable flow rates. The ratio of the maximum flow rate to the minimum flow rate is generally more than 20:1. The applicable industrial tube diameter is wide, up to 3 meters. The output signal and the measured flow rate are linear, and the accuracy is high. The conductivity can be measured ≥5μs/cm. Acid, alkali, salt solution, water, sewage, corrosive liquids, and fluid flow of mud, pulp, pulp, etc. However, it cannot measure the flow of gas, steam, and pure water.
Expression of electromagnetic flowmeter caliber: The expression of the electromagnetic flowmeter caliber is three digits, the first two are the first and the second. Number of caliber, the third digit means number of 0. For example, code 150 indicates a caliber of 15 mm; code 151 indicates a diameter of 150 mm; code 152 indicates a caliber of 1500.
Specifications
Nominal diameter | DN15~DN2000
Accuracy | ±0.2%,±0.3%,±0.5%
Measurement range (flow rate) | 0.01m/s~15m/s
Conductivity of medium | more than 5μS/cm
Nominal pressure | 0.6MPa,1.0MPa,4.0MPa
Protection grade | IP65,IP67,IP68
Electrode material | Stainless steel 316L,Hastelloy B, Hastelloy C, Titanium alloy, Tantalum alloy, Platinum-iridium alloy, Stainless steel-coated tungsten carbide and other special material .
Lining material | Neoprene,Polyurethane rubber,natural rubber, nitrile rubber, Teflon(PFA),Polytetrafluoroethylene(PTFE), fluorinated ethylene propylene (FEP OR F46), ceramics.
Connection | Flange connection [GB/T9119-2010 standard]
Ambient temperature | -10℃~50℃
Power supply | AC220V/DC24V/DC3.6V
Signal output | Analog 4mA-20mA, 0Hz~ 5 KHz frequency, two alarm outputs: high limit alarm and low limit alarm
Communication | RS485,RS232,MODBUS,HART,PROFIBUS-DP ( OPTIONAL)
Specifications
Nominal diameter | DN15~DN2000
Accuracy | ±0.2%,±0.3%,±0.5%
Measurement range (flow rate) | 0.01m/s~15m/s
Conductivity of medium | more than 5μS/cm
Nominal pressure | 0.6MPa,1.0MPa,4.0MPa
Protection grade | IP65,IP67,IP68
Electrode material | Stainless steel 316L,Hastelloy B, Hastelloy C, Titanium alloy, Tantalum alloy, Platinum-iridium alloy, Stainless steel-coated tungsten carbide and other special material .
Lining material | Neoprene,Polyurethane rubber,natural rubber, nitrile rubber, Teflon(PFA),Polytetrafluoroethylene(PTFE), fluorinated ethylene propylene (FEP OR F46), ceramics.
Connection | Flange connection [GB/T9119-2010 standard]
Ambient temperature | -10℃~50℃
Power supply | AC220V/DC24V/DC3.6V
Signal output | Analog 4mA-20mA, 0Hz~ 5 KHz frequency, two alarm outputs: high limit alarm and low limit alarm
Communication | RS485,RS232,MODBUS,HART,PROFIBUS-DP ( OPTIONAL)
