Flow Meter

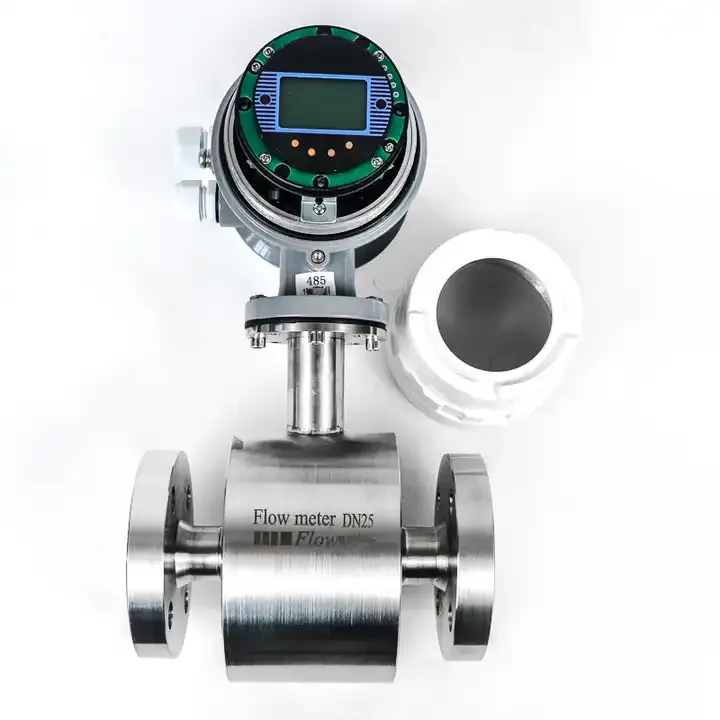

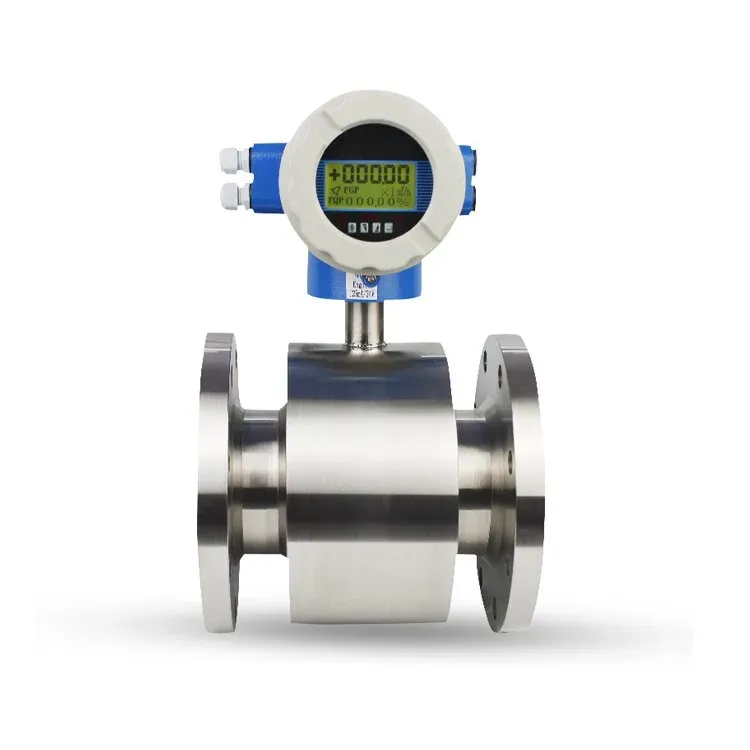

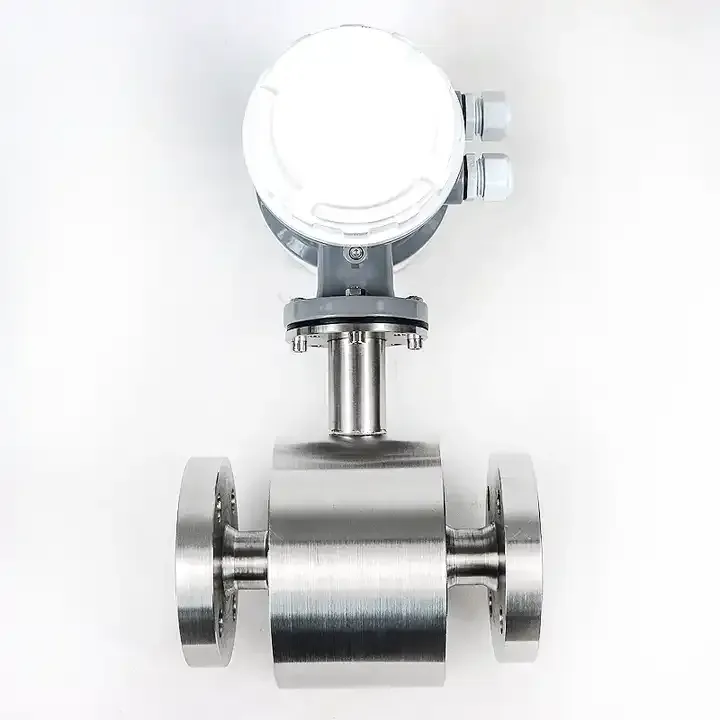

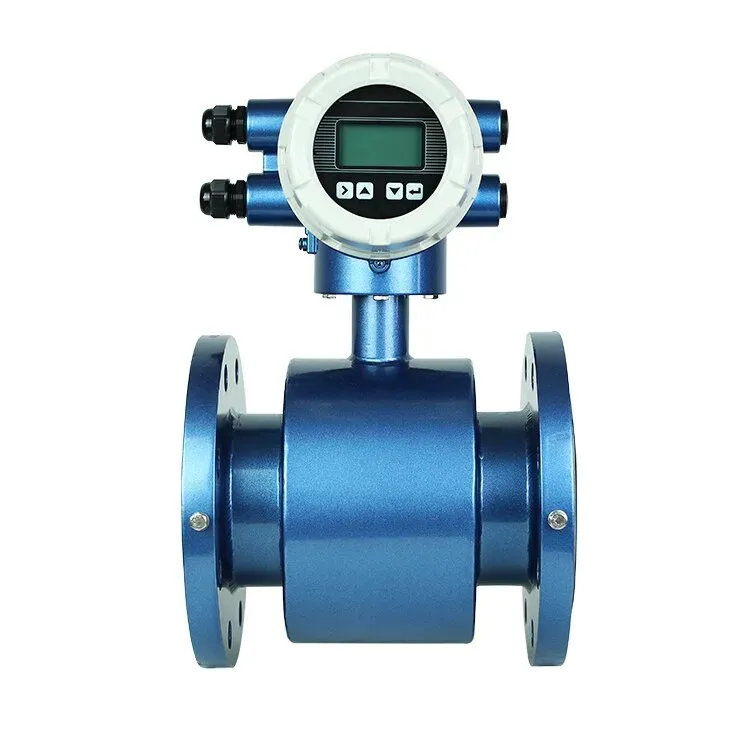

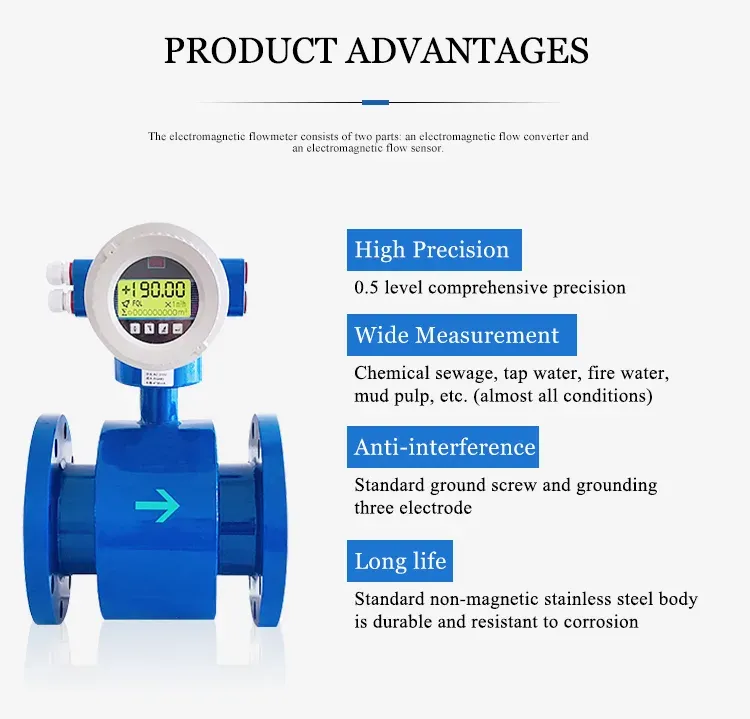

Integrated Electromagnetic Flowmeter
Integrated Electromagnetic Flowmeter. Electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline.
Specifications
- Product name
- Electromagnetic Flow Meter
- Nominal Diameter(mm)
- DN10-DN2000mm
- Medium
- water,waste water,slurry,sea water, mud and other conductivity liquids
- Accuracy
- 0.5% and 0.2%
- Instrument material
- Cast steel, SS304; SS316; etc.
- Medium Temperature
- <80℃(rubber); <180℃(PTFE)
- Pressure
- 4.0Mpa(DN10~80);1.6Mpa(DN100~150);1.0Mpa(DN200~1000);0.6Mpa(DN1200~2000)
- Connection
- Thread,Flange,Tri-clamp
- Signal Output
- Pulse;4~20mA;HART;RS485;RS232,MODBUS;GPRS
- Supply Power
- AC220V, DC24V or Battery
- Electrode
- SS316L(standard);Titanium;Tantalum;Hastelloy,platinum
- Lining
- PTFE;Rubber;polyurethane PU,etc
Specifications
Product name | Electromagnetic Flow Meter
Nominal Diameter(mm) | DN10-DN2000mm
Medium | water,waste water,slurry,sea water, mud and other conductivity liquids
Accuracy | 0.5% and 0.2%
Instrument material | Cast steel, SS304; SS316; etc.
Medium Temperature | <80℃(rubber); <180℃(PTFE)
Pressure | 4.0Mpa(DN10~80);1.6Mpa(DN100~150);1.0Mpa(DN200~1000);0.6Mpa(DN1200~2000)
Connection | Thread,Flange,Tri-clamp
Signal Output | Pulse;4~20mA;HART;RS485;RS232,MODBUS;GPRS
Supply Power | AC220V, DC24V or Battery
Electrode | SS316L(standard);Titanium;Tantalum;Hastelloy,platinum
Lining | PTFE;Rubber;polyurethane PU,etc
Protection Class | IP65 or IP68
Keywords | electromagnetic flow meter to conductive liquid

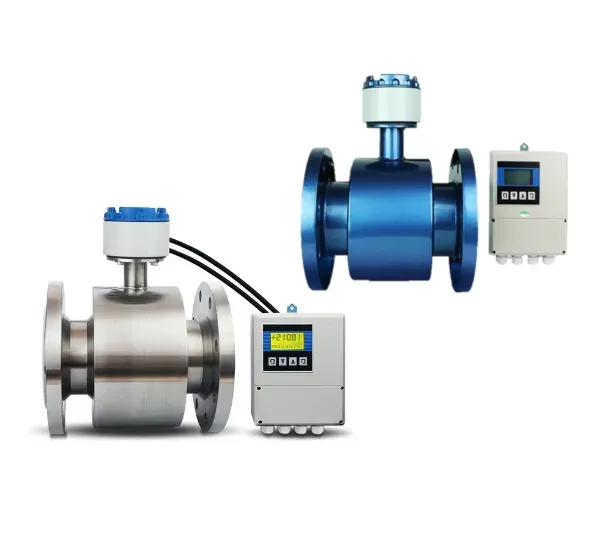

Structure | Remote type,Integrated type
Relative humidity | 5% to 90%
Specifications
Product name | Electromagnetic Flow Meter
Nominal Diameter(mm) | DN10-DN2000mm
Medium | water,waste water,slurry,sea water, mud and other conductivity liquids
Accuracy | 0.5% and 0.2%
Instrument material | Cast steel, SS304; SS316; etc.
Medium Temperature | <80℃(rubber); <180℃(PTFE)
Pressure | 4.0Mpa(DN10~80);1.6Mpa(DN100~150);1.0Mpa(DN200~1000);0.6Mpa(DN1200~2000)
Connection | Thread,Flange,Tri-clamp
Signal Output | Pulse;4~20mA;HART;RS485;RS232,MODBUS;GPRS
Supply Power | AC220V, DC24V or Battery
Electrode | SS316L(standard);Titanium;Tantalum;Hastelloy,platinum
Lining | PTFE;Rubber;polyurethane PU,etc
Protection Class | IP65 or IP68
Keywords | electromagnetic flow meter to conductive liquid
Structure | Remote type,Integrated type
Relative humidity | 5% to 90%
