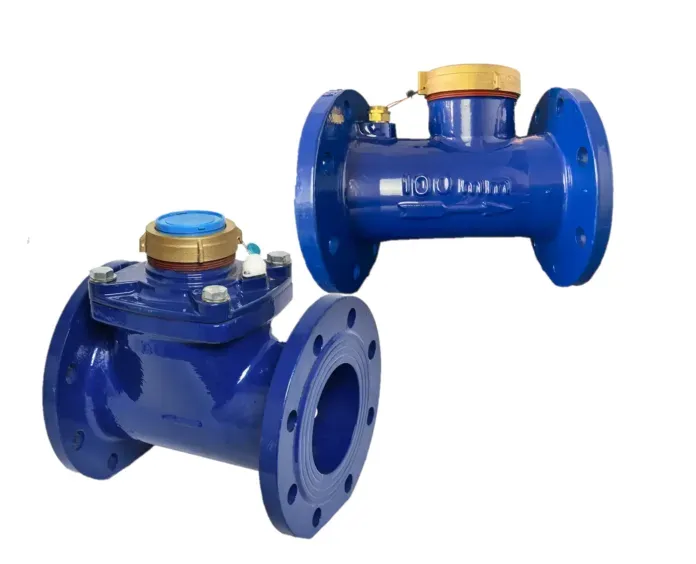

Flange industrial water meter

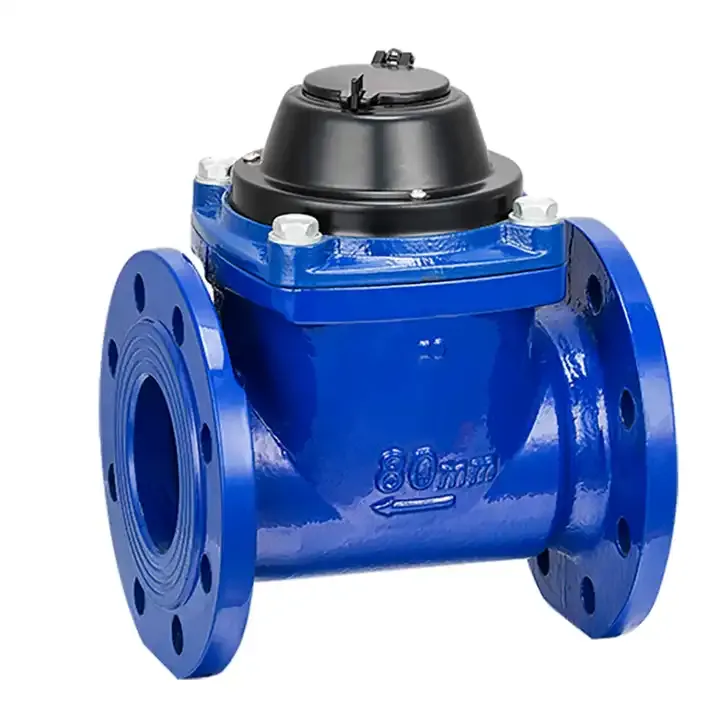

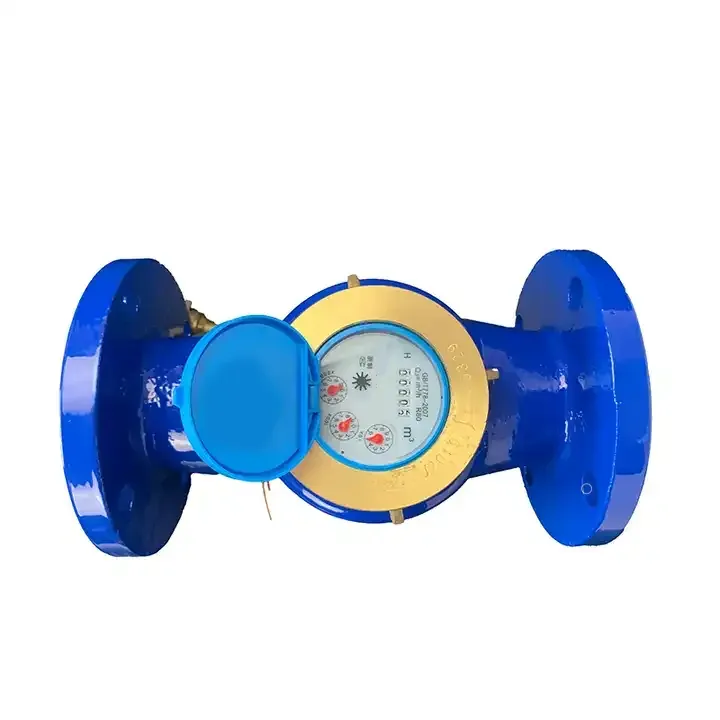

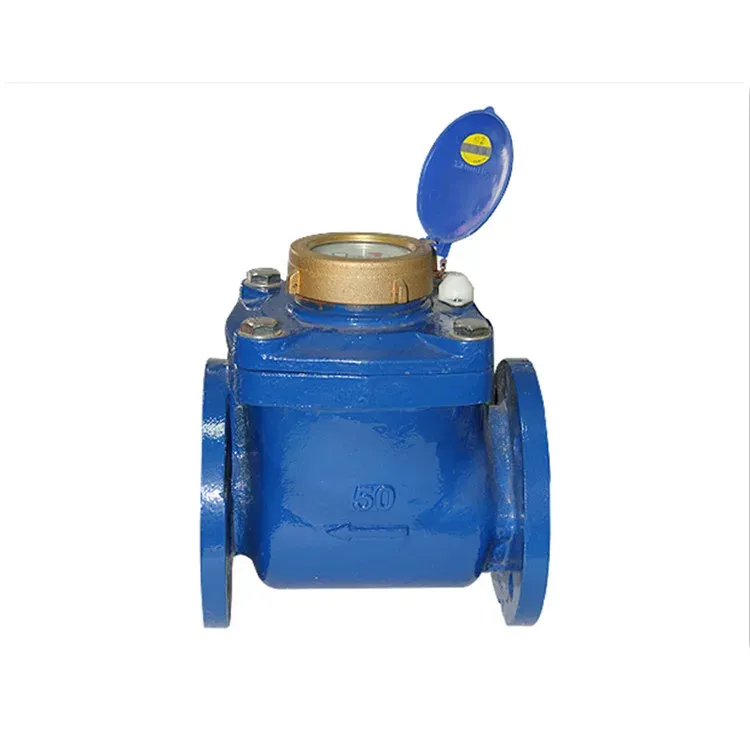

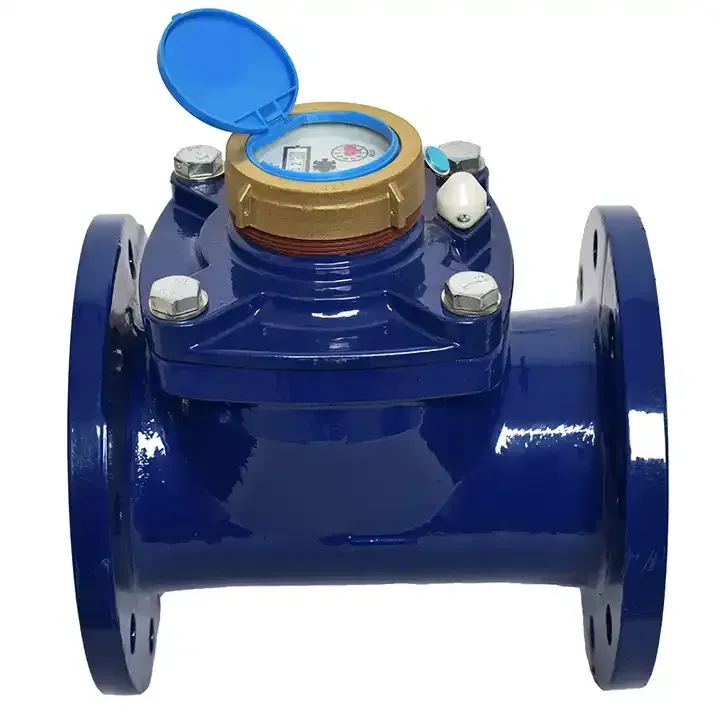

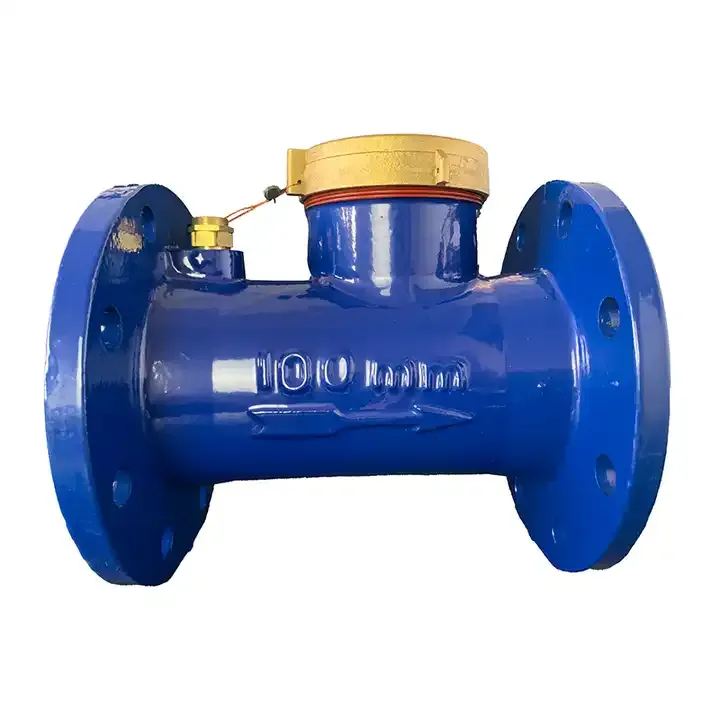

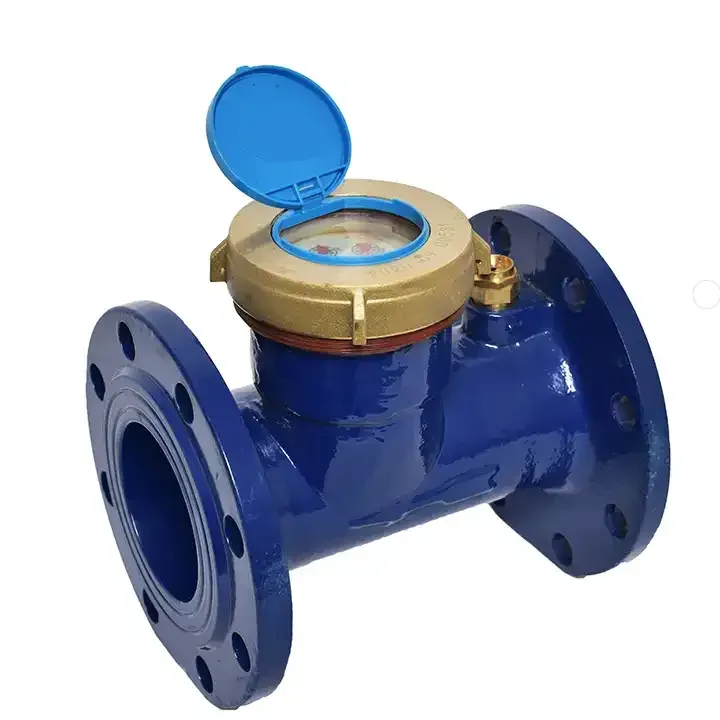

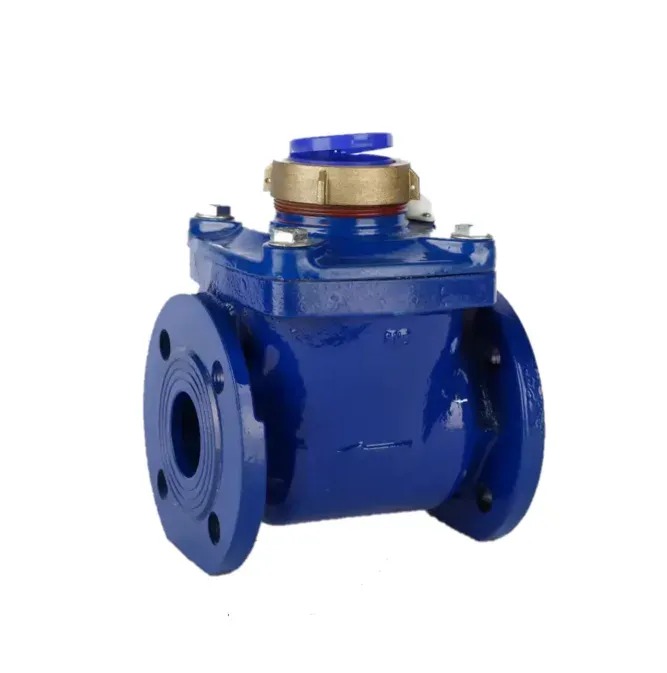

Gray iron case horizontal removable flange industrial water meter (old version)
Gray iron case horizontal removable flange industrial water meter (old version). Water meter is used for irrigation,municipality etc A flange is a connecting.
Specifications
- Features
- Optional Features
- 1.Removable element structure, easy installation and mainten
- 1. Plastic register, copper register, and full glass register. 2. Accuracy: R=50. 3. Size: DN50-300mm. 4. Cold/ hot water. 5. Reed switch option. 6. Flange standard can be chosen. 7.360 d
- Standards Compliance
- Working Conditions
- Measuring the volume of cold (hot) water passing through the
- 1.Water temperature: 0.1°C~50°C (0.1°C~90°C for hot water meter). 2. Water pressure: PN10/1 6/25.
- Flange Outer Φ mm
- Thread Hold center circle Φ mm Thread connect Numbers
- LXLC-50
- 50 200 232 380 165 125 4*M16 12
- LXLC-65
- 65 200 232 380 185 145 4*M16 13
- LXLC-80
- 80 225 252 360 200 160 8*M16 16
- LXLC-100
- 100 250 262 380 220 180 8*M16 18
- LXLC-125
- 125 250 275 380 250 210 8*M16 20
- LXLC-150
- 150 300 325 420 285 240 8*M20 38
- LXLC-200
- 200 350 352 420 340 295 8*M20 64
Application Exploded View -Measuring the volume of cold (hot) water passing through the pipeline Feature -Removable element structure, easy installation and maintenance, Register for universal use within this range detachable without Removing the meter from the pipeline; -Dry-dial, Magnetic drive sensitive action, small pressure loss; -Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service; -Selected high quality materials for steady & reliable characteristic; -Technical data conform to international standard ISO 4064. Working condition -Water temperature: 0.1℃～50℃ for cold water meter .0.1℃～90℃ for hot water meter. -Water pressure: PN10/16/25 -Pressure -loss class:△p25 Maximum permissible errors (1) From minimum flow -rate (Q1) inclusive to transitional flow-rate (Q2) exclusive ±5% (2) From transitional flrow-rate (Q2) to overload flow-rate(Q4):±2% ( Hot water meter±3% )
2.Dry-dial, Magnetic drive sensitive action, small pressure loss.
3.Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service.
4.Selected high quality materials for steady and reliable characteristics.
5. Technical data conform to international standard ISO 4064. 1. Plastic register, copper register, and full glass register.
2. Accuracy: R=50.
W mm
Optional Features Dials -Plastic register, copper register and full glass register. -Reed switch option. -Flange standard can be choose. -360 degree rotate can be choose. -Cast iron, Ductile iron body . -Color can be change on body and cover.
Dimensions Installation
NOTE: The flange dimension conforms to ISO7005-2:1988 standard.
Order for products of special requirements is also accepted.
Pulse Position Pressure Loss Curve
Flow Technique Specification
Specifications
Features | Optional Features
1.Removable element structure, easy installation and maintenance,register for universal use within this range detachable without Removing the meter from the pipeline.
2.Dry-dial, Magnetic drive sensitive action, small pressure loss.
3.Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service.
4.Selected high quality materials for steady and reliable characteristics.
5. Technical data conform to international standard ISO 4064. | 1. Plastic register, copper register, and full glass register.
2. Accuracy: R=50.
3. Size: DN50-300mm.
4. Cold/ hot water.
5. Reed switch option.
6. Flange standard can be chosen.
7.360 degrees rotate can be chosen
8. Cast iron, Ductile iron, SS304, and SS316 body can be chosen.
9. Working pressure: PN16/25.
10. Color can be changed on the body and cover.
Standards Compliance | Working Conditions
Measuring the volume of cold (hot) water passing through the pipeline. | 1.Water temperature: 0.1°C~50°C (0.1°C~90°C for hot water meter).
2. Water pressure: PN10/1 6/25.
Specifications
Model | Nominal Size | L mm | H mm | W mm | Connection Thread | Weight kg
Flange Outer Φ mm | Thread Hold center circle Φ mm | Thread connect Numbers
LXLC-50 | 50 | 200 | 232 | 380 | 165 | 125 | 4*M16 | 12
LXLC-65 | 65 | 200 | 232 | 380 | 185 | 145 | 4*M16 | 13
LXLC-80 | 80 | 225 | 252 | 360 | 200 | 160 | 8*M16 | 16
LXLC-100 | 100 | 250 | 262 | 380 | 220 | 180 | 8*M16 | 18
LXLC-125 | 125 | 250 | 275 | 380 | 250 | 210 | 8*M16 | 20
LXLC-150 | 150 | 300 | 325 | 420 | 285 | 240 | 8*M20 | 38
LXLC-200 | 200 | 350 | 352 | 420 | 340 | 295 | 8*M20 | 64
LXLC-250 | 250 | 450 | 470 | 660 | 395 | 350 | 12*M20 | 94
LXLC-300 | 300 | 500 | 492 | 660 | 445 | 400 | 12*M20 | 114
